Quick Click Male Fitting to Metric Male

Quick Click Male Fitting to Metric Male

BOOST Products USA

Part #
GA-QCMD06M12x1.5-B
UPC #
4250815809084

Black Friday Sale On All November Long! No Code Needed!

Regular price $12.39 USD
Regular price $12.39 USD Sale price $12.39 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

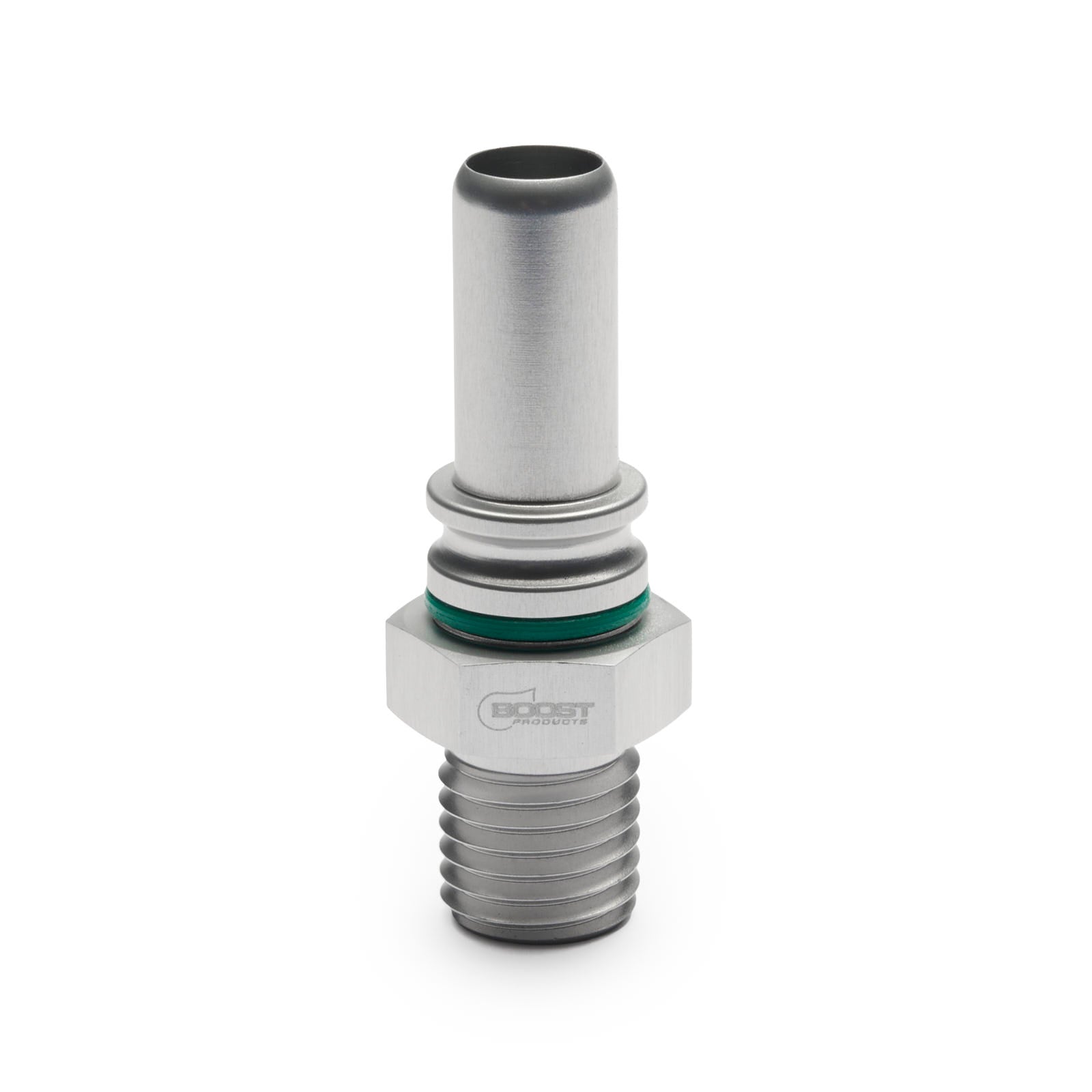

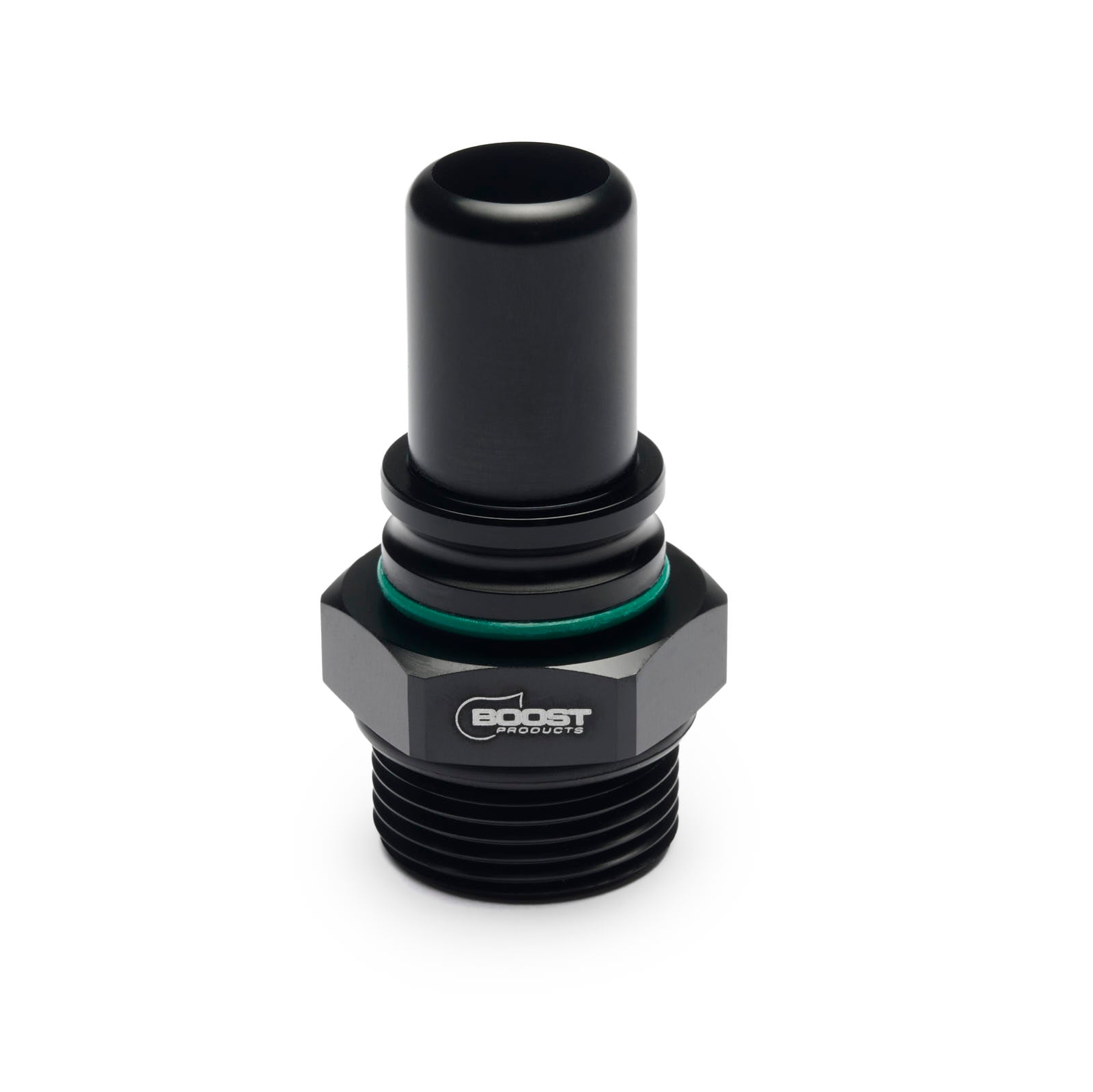

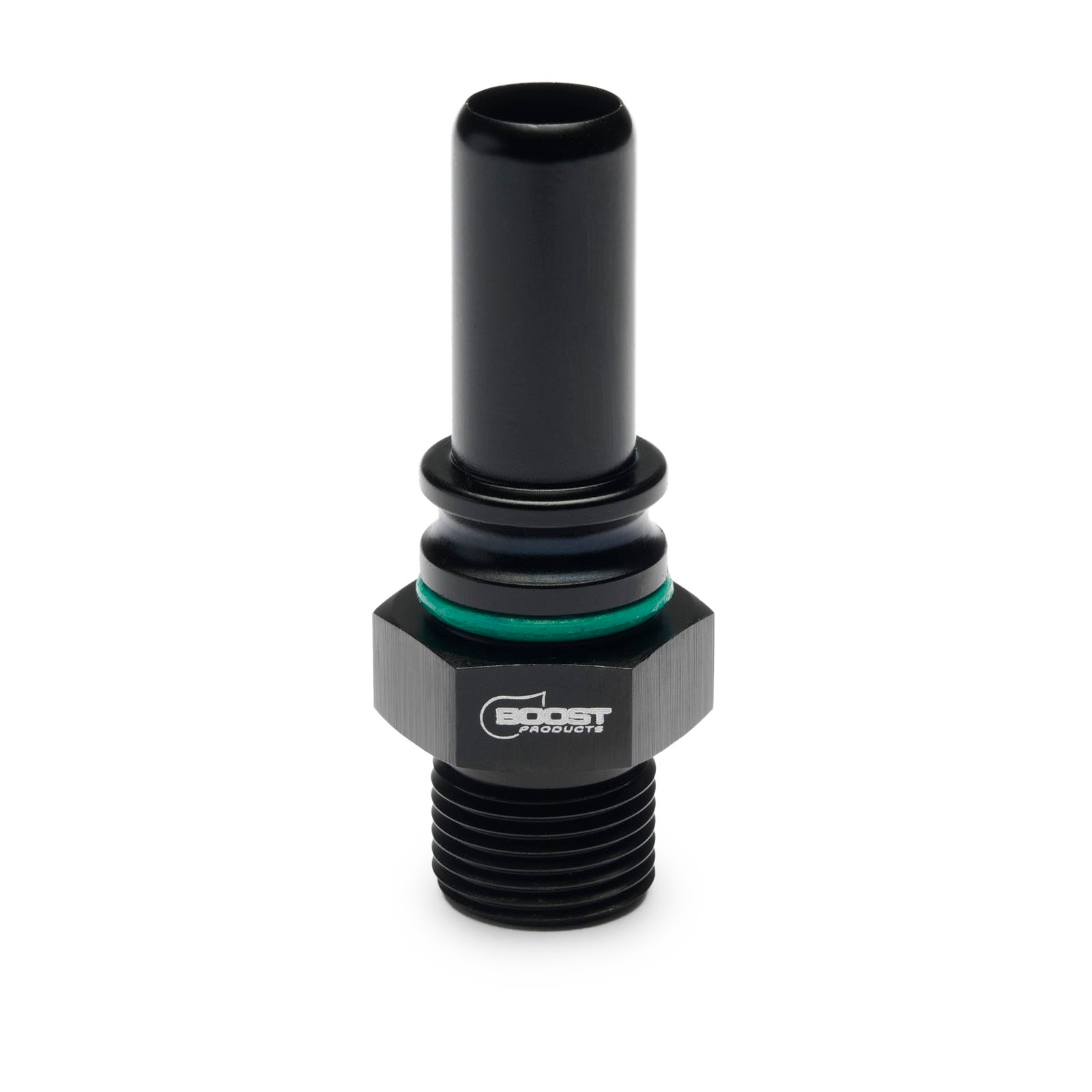

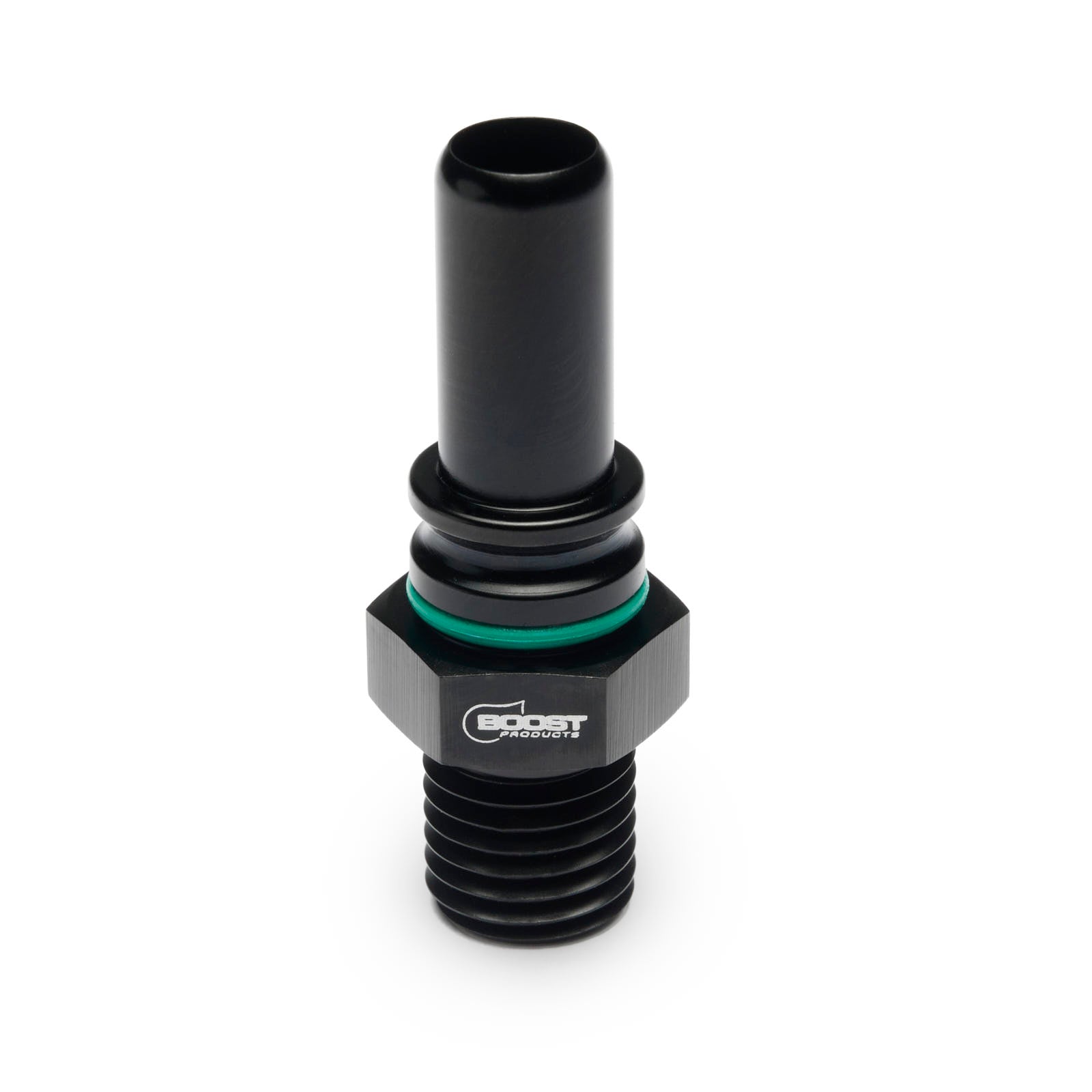

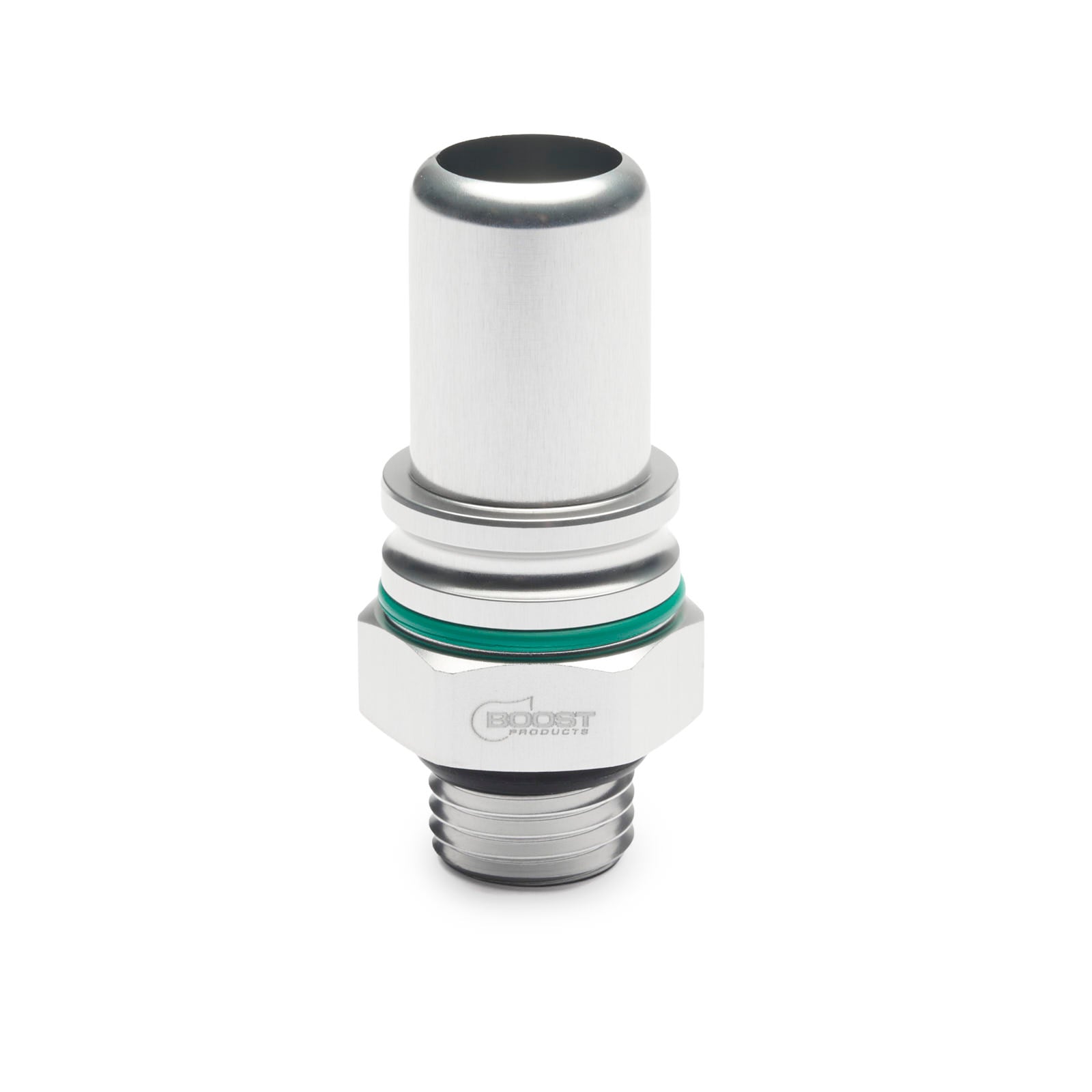

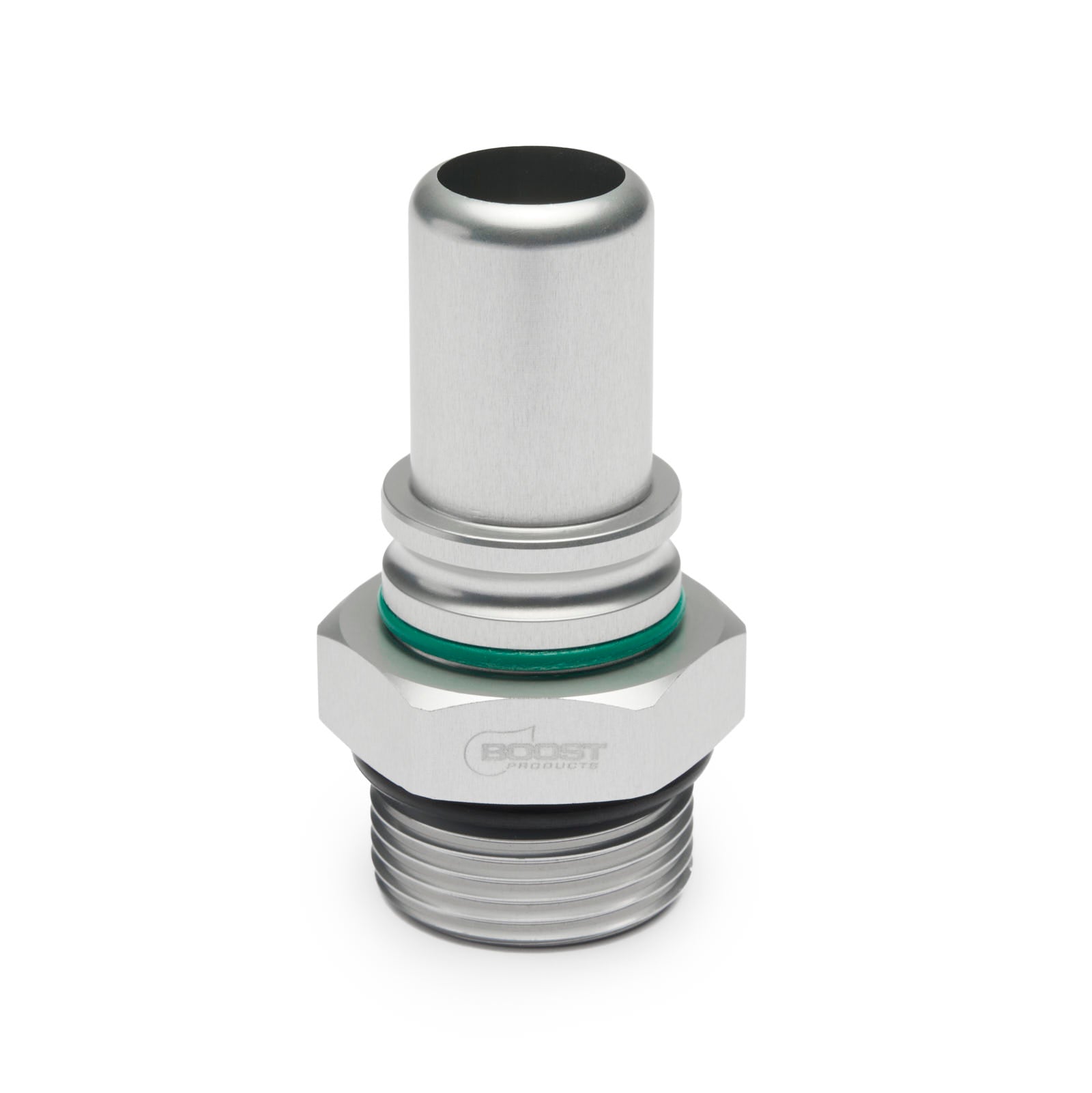

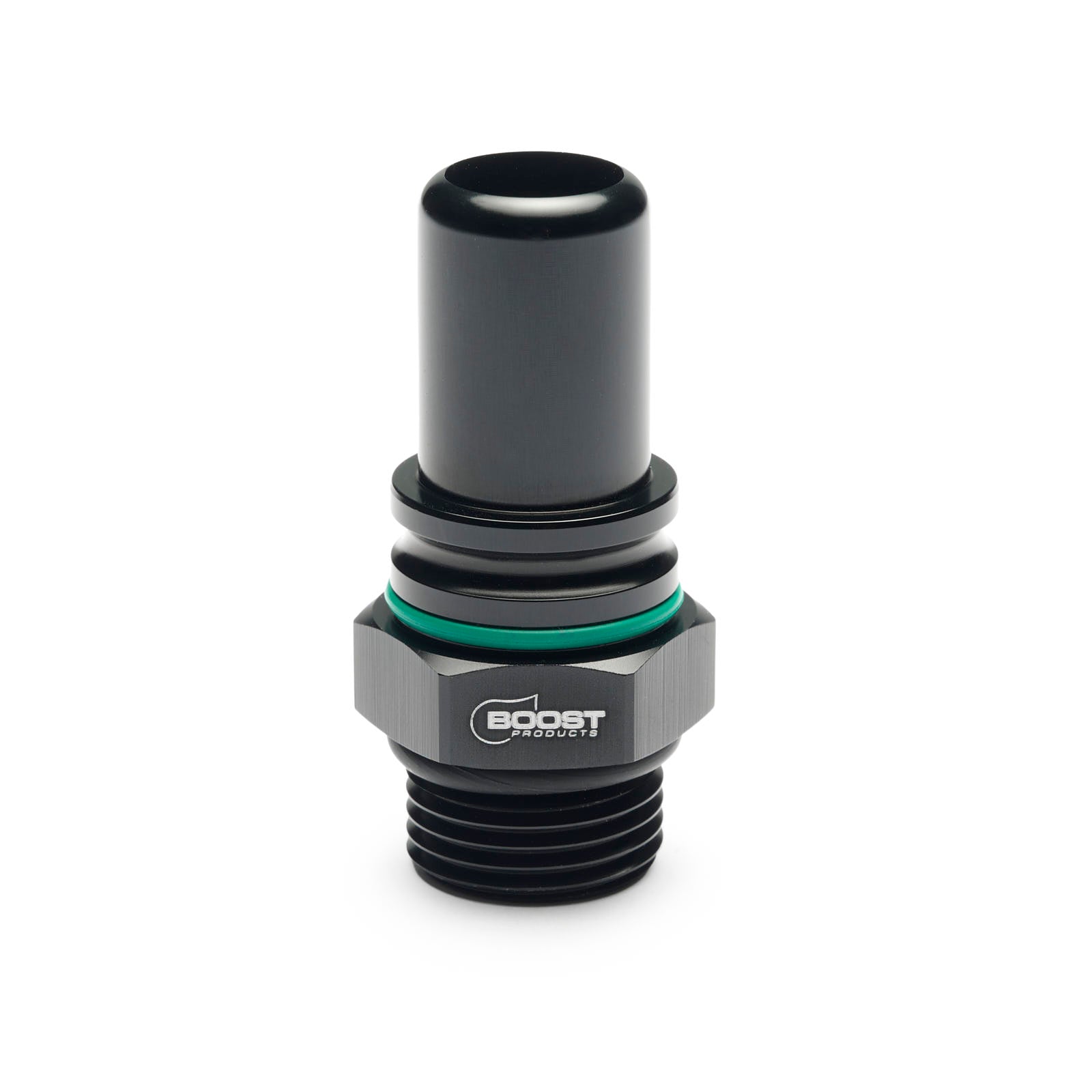

Quick Click Male Fitting to Metric Male

Quick Click is the BOOST Products quick disconnect system for AN lines. This fitting is the male part (pin) of the coupling. Connection on the other side: Metric Male. It connects to any Quick Click counterpart of the same dash size in seconds and without tools.

Important: Quick Click fittings are quick release, but not dry break. They do not seal when disconnected, so the fluid in the line will run out.

Key Features

  • Tool-free connection and disconnection
  • Leak-free when connected, full flow design
  • Suitable for fuel, oil, E85 and methanol
  • Lightweight anodized aluminum, CNC machined from 6061-T6
  • Temperature range -40 °C (-40 °F) up to 150 °C (302 °F)

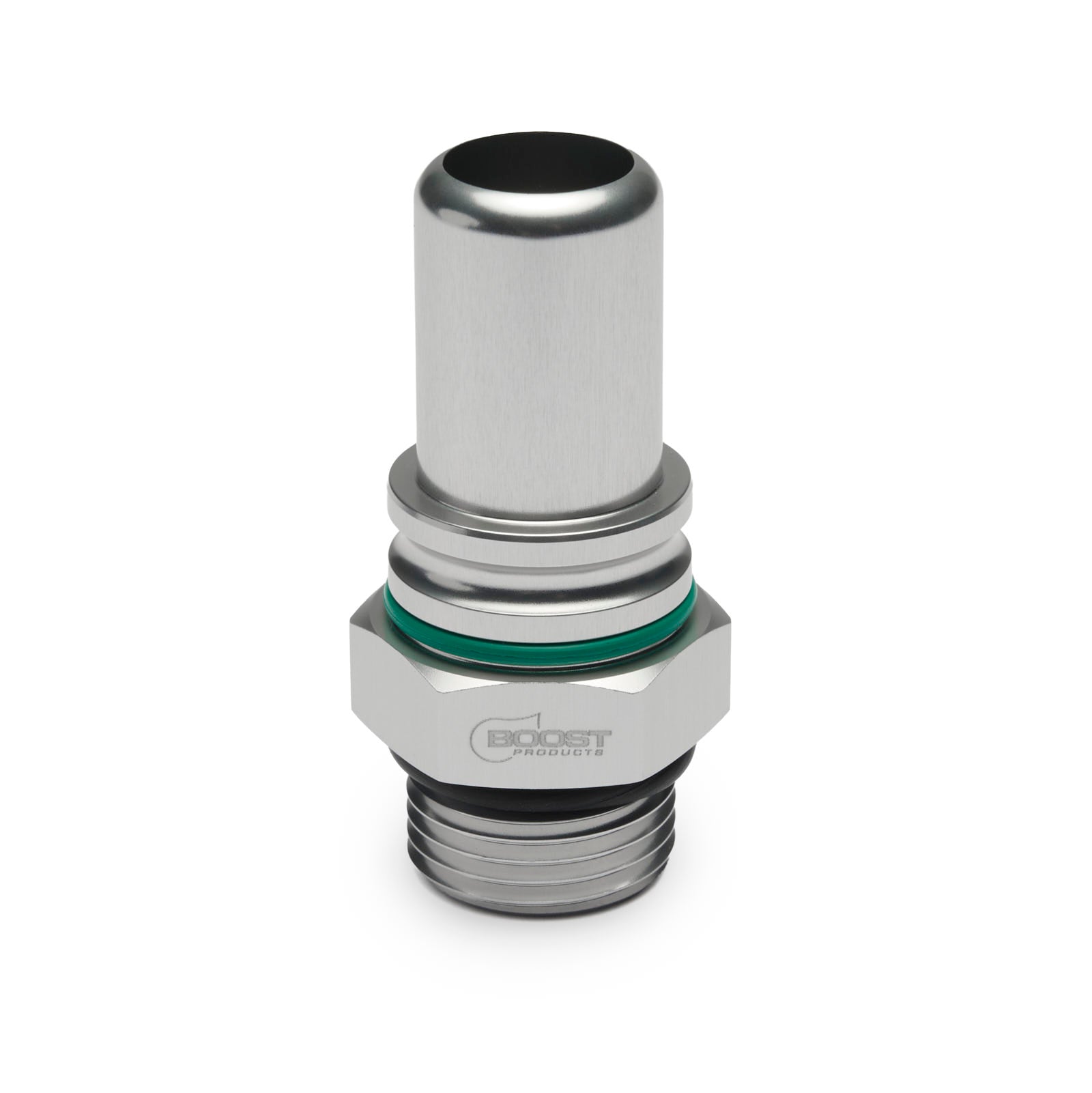

  • Finish: matte black or matte silver

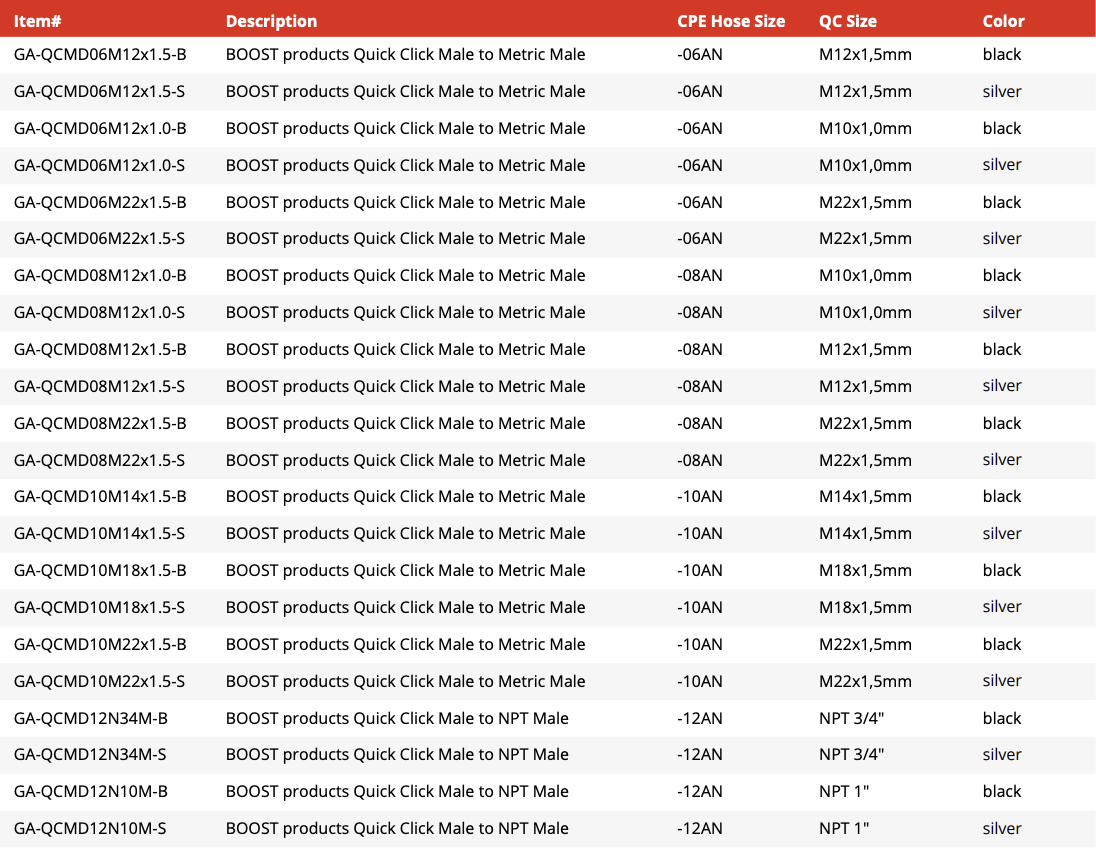

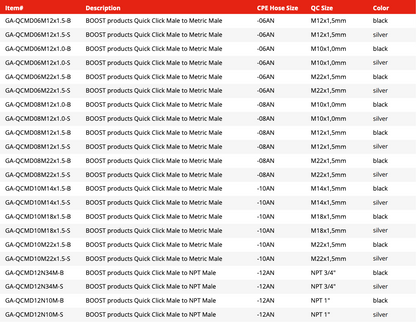

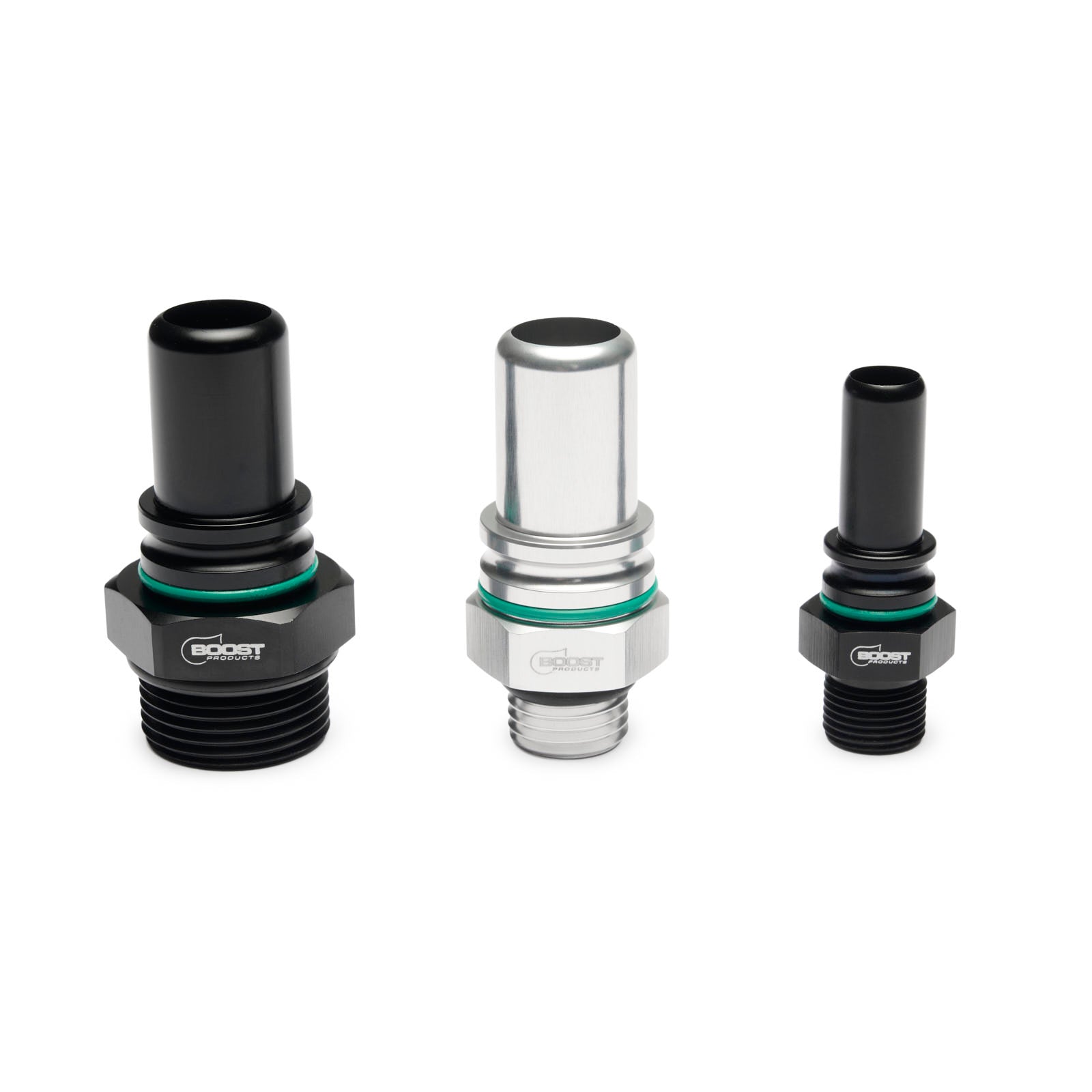

Available Sizes

Thread Quick Click size Burst pressure Part No. matte black Part No. matte silver

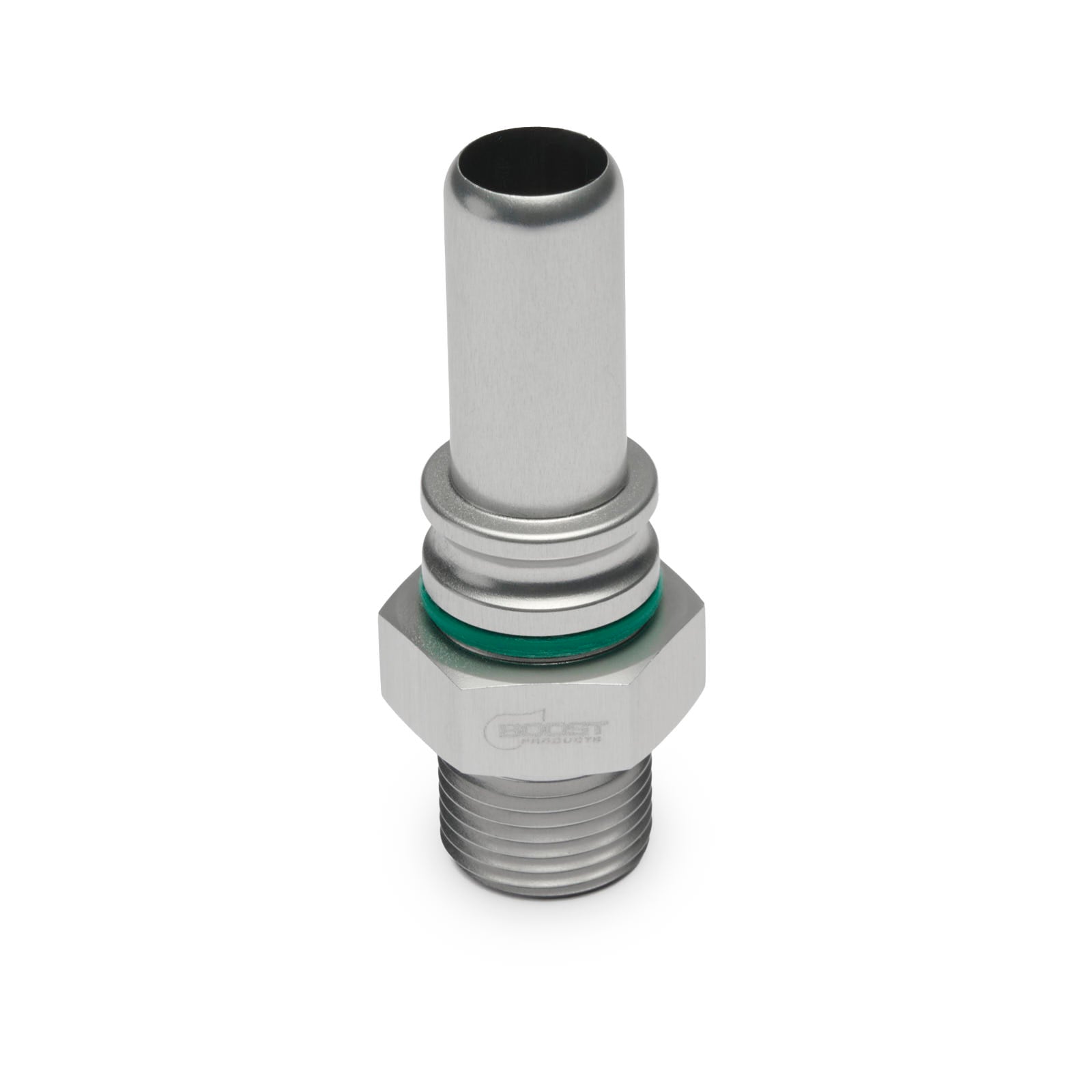

M10x1.0mm male -06 AN (9/16x18) 9000psi / 612 bar GA-QCMD06M12x1.0-B GA-QCMD06M12x1.0-S
M12x1.5mm male -06 AN (9/16x18) 9000psi / 612 bar GA-QCMD06M12x1.5-B GA-QCMD06M12x1.5-S
M22x1.5mm male -06 AN (9/16x18) 9000psi / 612 bar GA-QCMD06M22x1.5-B GA-QCMD06M22x1.5-S

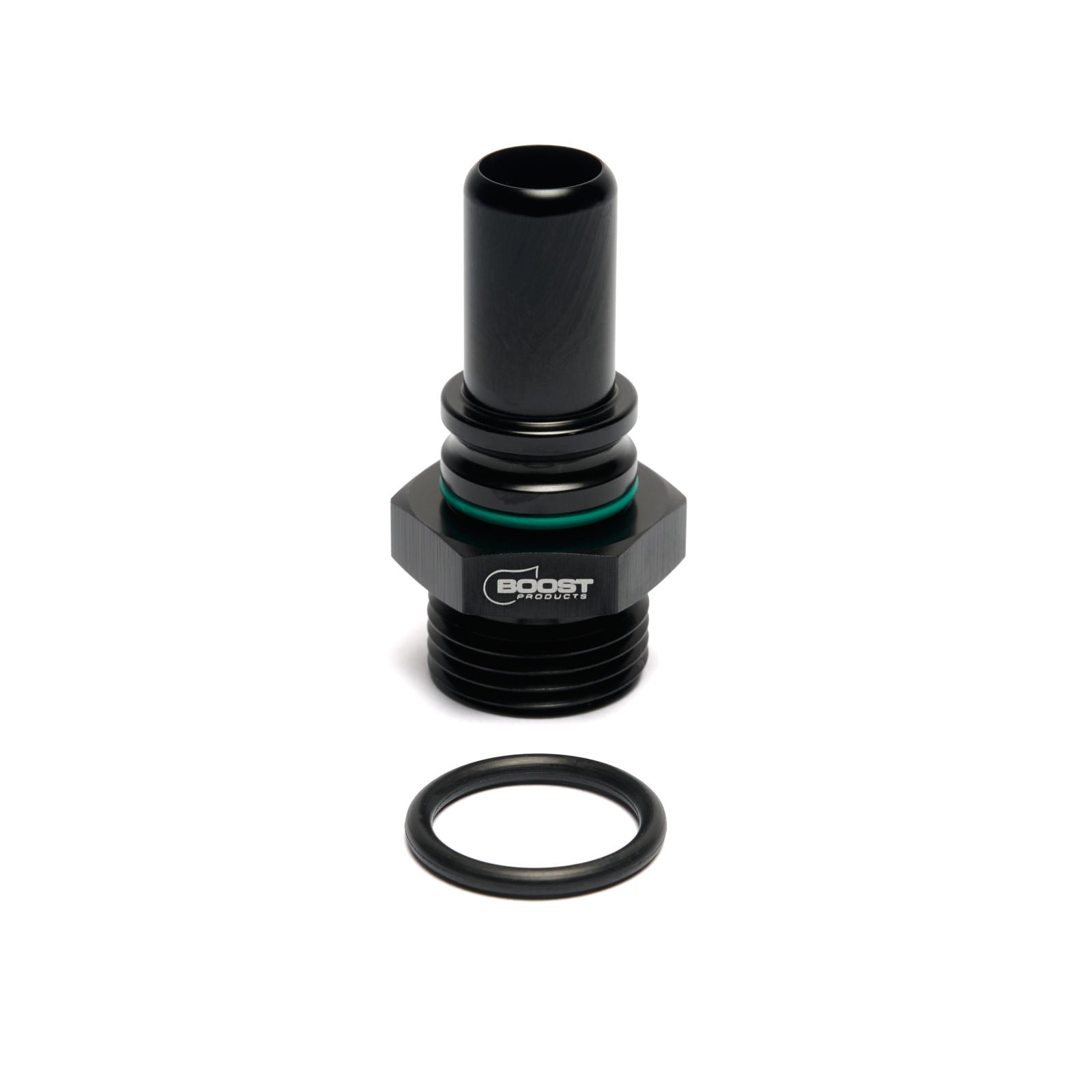

M10x1.0mm male -08 AN (3/4x16) 9000psi / 612 bar GA-QCMD08M12x1.0-B GA-QCMD08M12x1.0-S
M12x1.5mm male -08 AN (3/4x16) 9000psi / 612 bar GA-QCMD08M12x1.5-B GA-QCMD08M12x1.5-S
M22x1.5mm male -08 AN (3/4x16) 9000psi / 612 bar GA-QCMD08M22x1.5-B GA-QCMD08M22x1.5-S
M14x1.5mm male -10 AN (7/8x14) 9000psi / 612 bar GA-QCMD10M14x1.5-B GA-QCMD10M14x1.5-S
M18x1.5mm male -10 AN (7/8x14) 9000psi / 612 bar GA-QCMD10M18x1.5-B GA-QCMD10M18x1.5-S
M22x1.5mm male -10 AN (7/8x14) 9000psi / 612 bar GA-QCMD10M22x1.5-B GA-QCMD10M22x1.5-S

Burst pressure values refer to the Quick Click fitting.

Frequently Asked Questions

Does Quick Click seal when I disconnect it?

No. They are quick release, but not dry break. When you separate the coupling, the fluid in the line runs out. Relieve the system pressure and drain or catch the fluid before you disconnect. If you need a coupling that shuts off on both sides, use the BOOST Products Dry Break Quick Release / Disconnect Adapter.

What do I need for a complete Quick Click connection?

Two halves in the same dash size: one Quick Click male part (pin) and one female part (socket). A -06 AN male will not fit a -10 AN female.

Which fluids can I run through it?

Fuel, E85, methanol, oil and coolant. The anodized aluminum body resists common automotive fluids.
