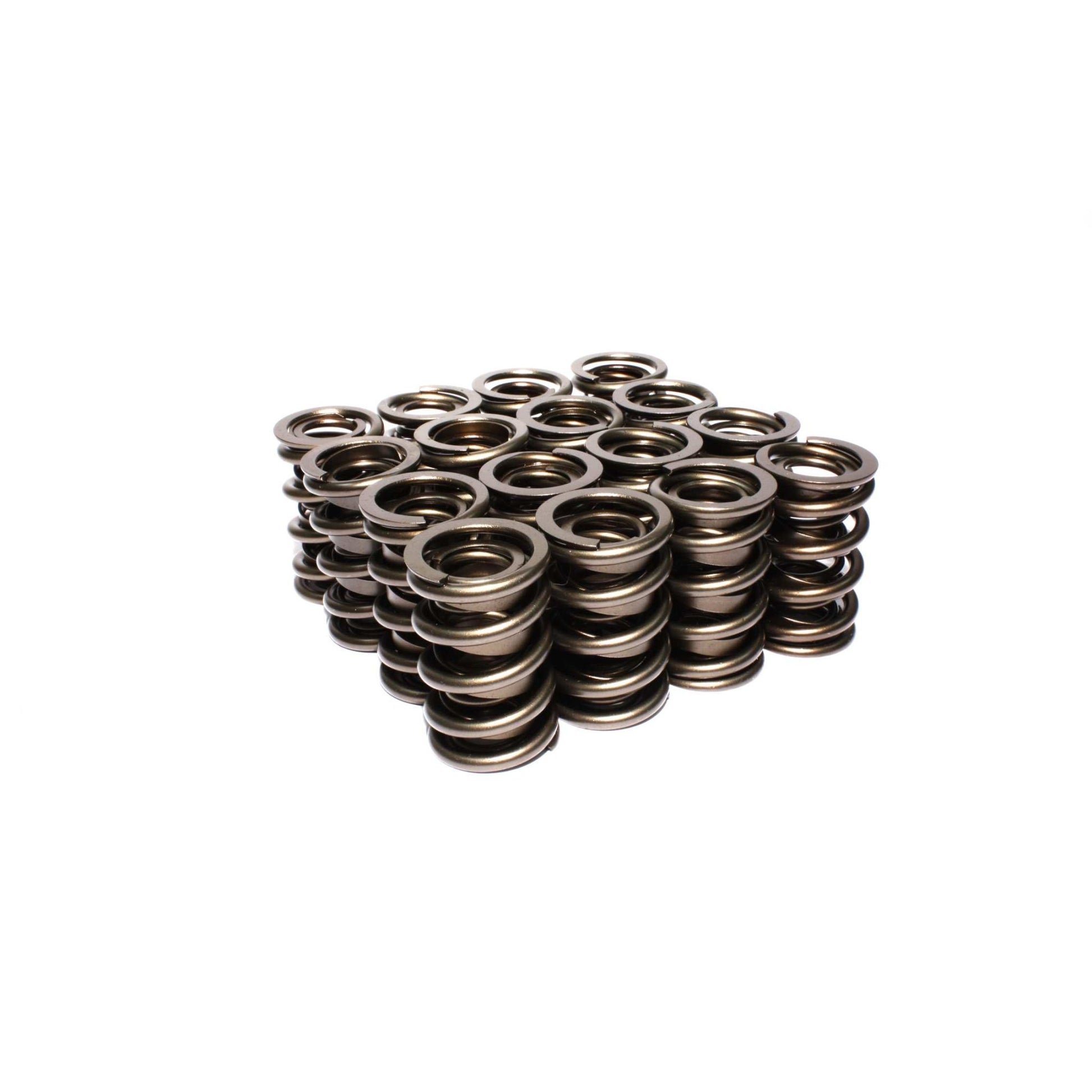

COMP Cams Race Endurance 1.551" OD Dual Springs; 2.000" Installed Height; 16 Springs COMP-26097-16

Attributes:

• GTIN: 00036584021391
• Brand Name: COMP Cams
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Number of Springs: 2
• Spring Rate: 502
• Seat Pressure: 195
• Seat Height: 2
• Outer Spring Outside Diameter: 1.551
• Outer Spring Inside Diameter: 1.117
• Inner Spring Inside Diameter: 0.721
• Coil Bind Height: 1.135
• Damper: Yes
• Compatible Spring Cup (O.D. Locator): 4700-16
• Compatible Shims: 4757
• Compatible Retainer: 732-16
• Compatible .630" Guide Diameter Spring Seats: 1782-16
• Compatible .570" Guide Diameter Spring Seats: 4781-16
• Valve Spring Series: Race Endurance
• Amazon ASIN: B000P596EQ
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.38 x 3.7 x 2.83 inches
• Weight: 6 lb
