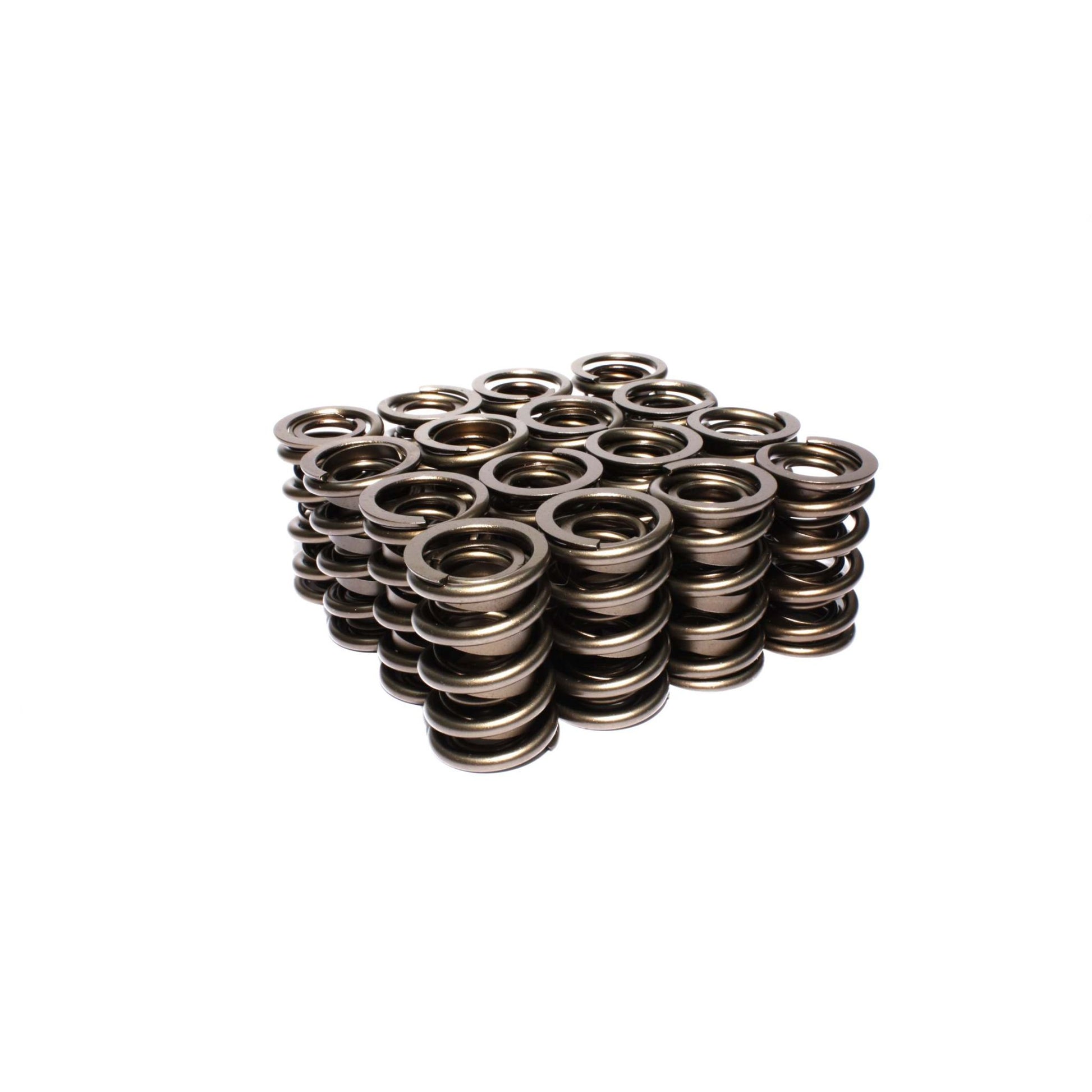

COMP Cams Race Endurance 1.553" OD Dual Springs; 1.850" Installed Height; 16 Springs COMP-929-16

Attributes:

• GTIN: 00036584270461
• Brand Name: COMP Cams
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Number of Springs: 2
• Spring Rate: 439
• Seat Pressure: 158
• Seat Height: 1.85
• Outer Spring Outside Diameter: 1.55
• Outer Spring Inside Diameter: 1.14
• Inner Spring Inside Diameter: 0.74
• Coil Bind Height: 1.16
• Damper: Yes
• Compatible Spring Cup (O.D. Locator): 4700-16
• Compatible Shims: 4757
• Compatible Retainer: 741-16
• Compatible .630" Guide Diameter Spring Seats: 4780-16
• Compatible .570" Guide Diameter Spring Seats: 4781-16
• Valve Spring Series: Race Endurance
• Amazon ASIN: B00062Z28W
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.5 x 3.7 x 2.8 inches
• Weight: 5.7761 lb
