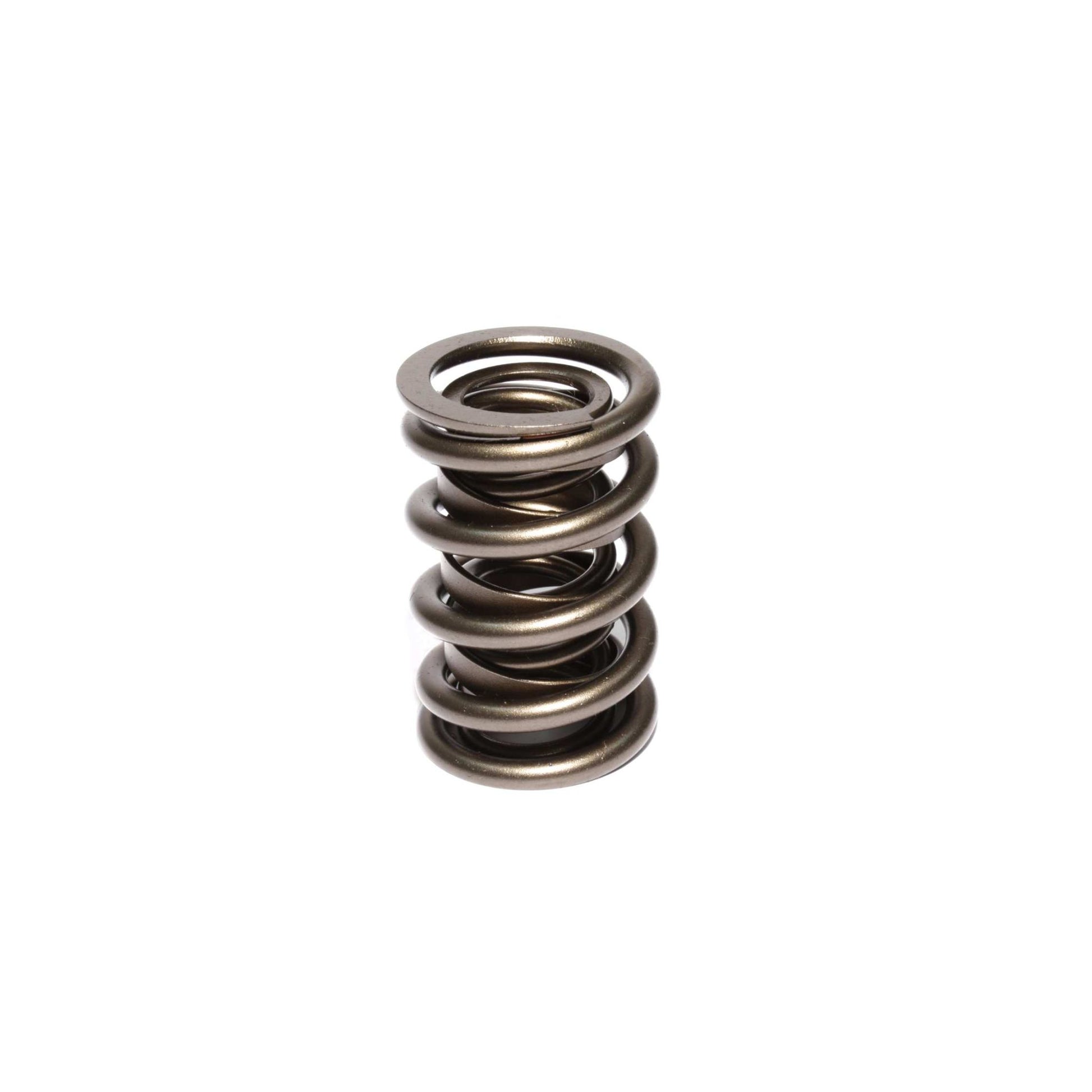

COMP Cams Race Endurance 1.564" OD Dual Spring; 1.900" Installed Height; 1 Spring COMP-26094-1

Attributes:

• GTIN: 00036584061809
• Brand Name: COMP Cams
• Number of Springs: 2
• Spring Rate: 454
• Seat Pressure: 178
• Seat Height: 1.9
• Outer Spring Outside Diameter: 1.564
• Outer Spring Inside Diameter: 1.127
• Inner Spring Inside Diameter: 0.742
• Coil Bind Height: 1.2
• Damper: Yes
• Compatible Spring Cup (O.D. Locator): 4700-1
• Compatible Shims: 4757
• Compatible Retainer: 749-1
• Compatible .630" Guide Diameter Spring Seat: 4773-1
• Compatible .570" Guide Diameter Spring Seat: 4772-1
• Valve Spring Series: Race Endurance
• Amazon ASIN: B001GBVQGY
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 3.1 x 4 x 1.2 inches
• Weight: 0.35 lb
