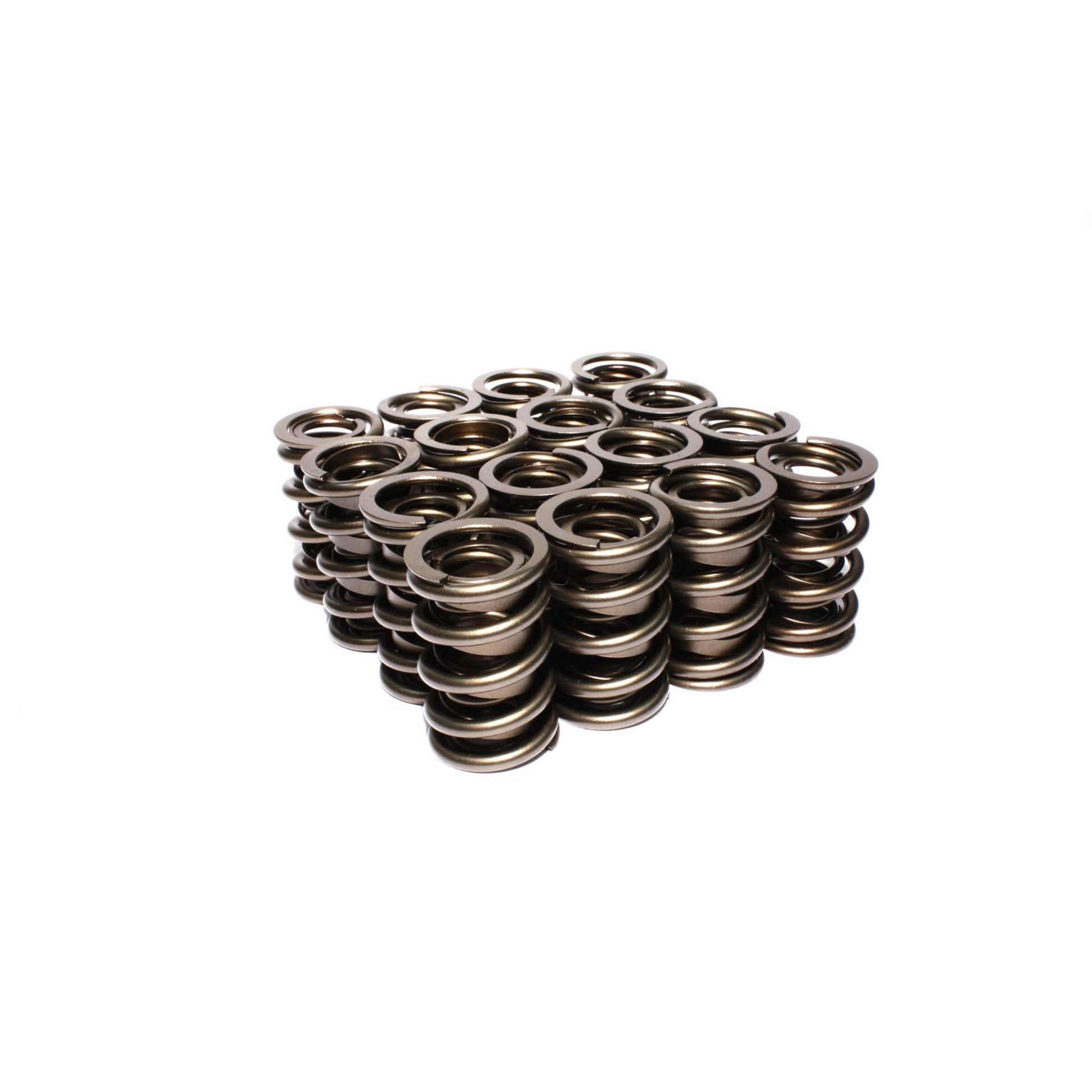

COMP Cams Race Endurance 1.564" OD Dual Springs; 1.900" Installed Height; 16 Springs COMP-26094-16

Attributes:

• GTIN: 00036584061816
• Brand Name: COMP Cams
• Damper: Yes
• Seat Pressure: 178
• Seat Height: 1.9
• Outer Spring Outside Diameter: 1.564
• Outer Spring Inside Diameter: 1.127
• Number of Springs: 2
• Inner Spring Inside Diameter: 0.742
• Compatible Spring Cup (O.D. Locator): 4700-16
• Valve Spring Series: Race Endurance
• Compatible Shims: 4757
• Compatible Retainer: 749-16
• Compatible .630" Guide Diameter Spring Seats: 4773-16
• Compatible .570" Guide Diameter Spring Seats: 4772-16
• Coil Bind Height: 1.2
• Spring Rate: 454
• Amazon ASIN: B000P5B8WE
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.5 x 3.7 x 2.9 inches
• Weight: 6.1 lb
