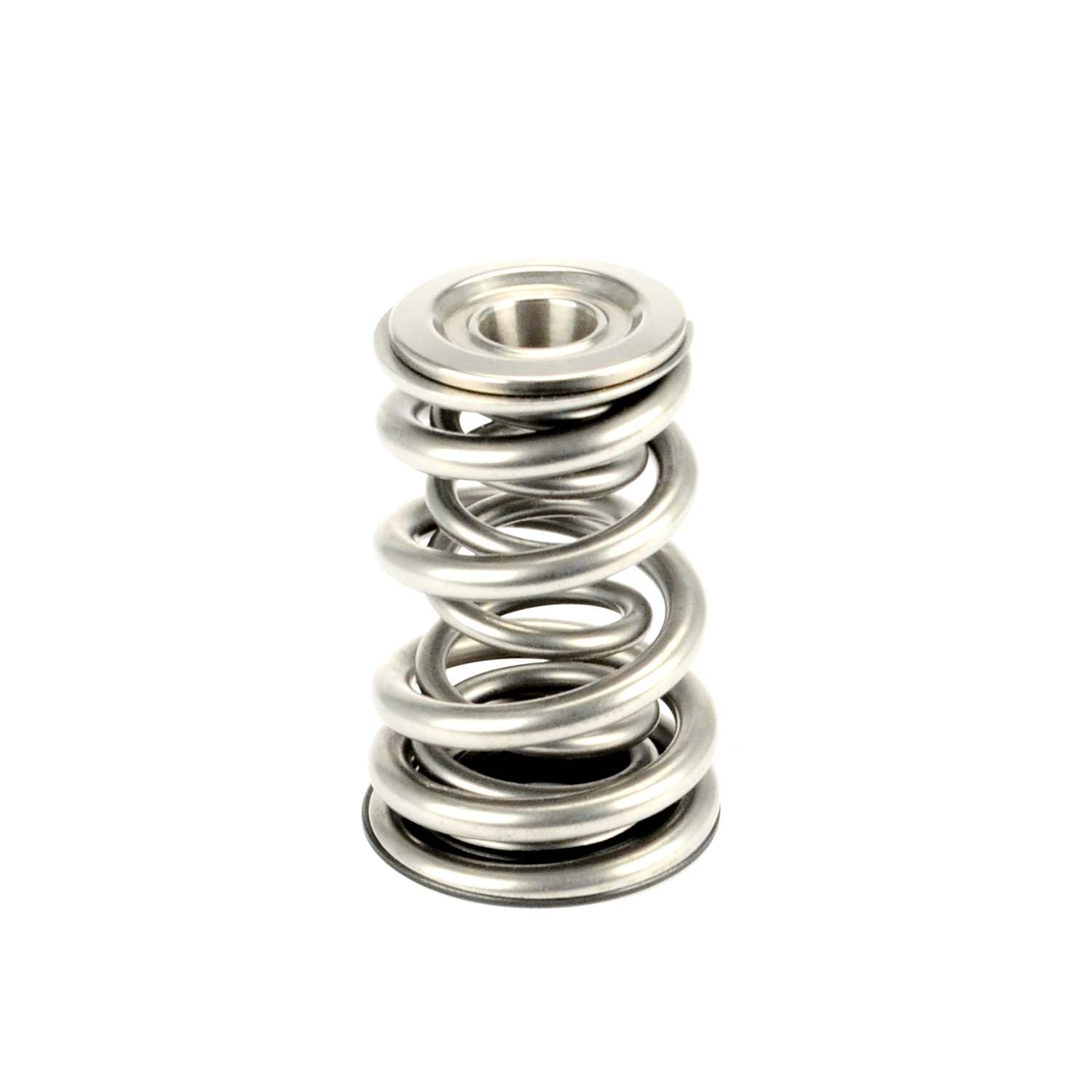

COMP Cams Race Endurance 1.657" OD Conical Springs; 2.000" Installed Height; 16 Springs COMP-7245-16

Attributes:

• GTIN: 00036584283249
• Brand Name: COMP Cams
• Valve Spring Series: Race Endurance
• Spring Rate: 600
• Outer Top Spring Outside Diameter: 1.442
• Amazon ASIN: B00N6LTDAI
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Seat Height: 2.05
• Compatible Shims: 4756
• Outer Top Spring Inside Diameter: 1.01
• Outer Bottom Spring Outside Diameter: 1.657
• Outer Bottom Spring Inside Diameter: 1.225
• Number of Springs: 2
• Inner Spring Inside Diameter: 0.646/0.861
• Damper: No
• Compatible Retainer: 716-16
• Seat Pressure: 150
• Compatible .570" Guide Diameter Spring Seats: 4669-16
• Coil Bind Height: 1.115

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 10.25 x 3 x 2.25 inches
• Weight: 5.43 lb
