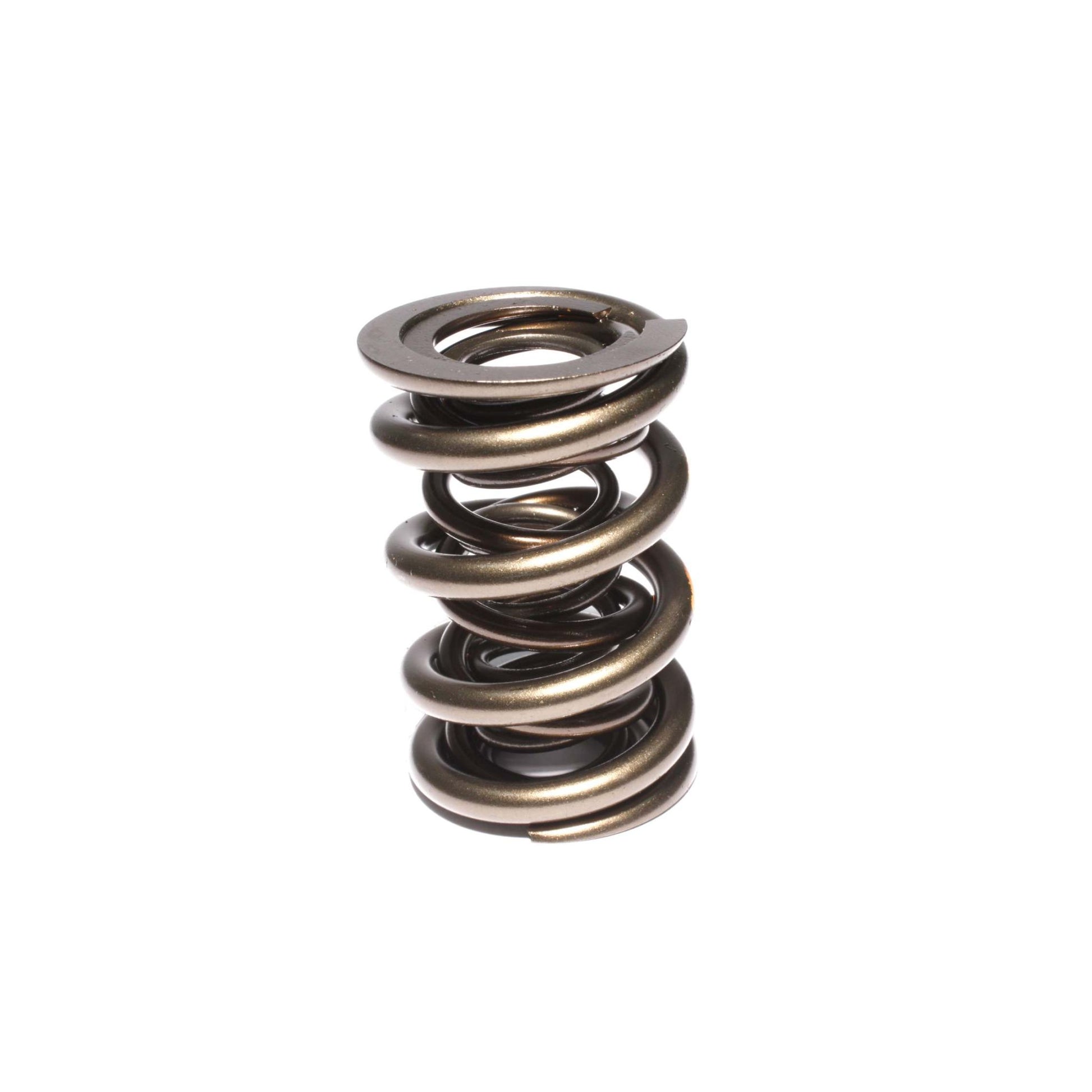

COMP Cams Race Extreme 1.660" OD Triple Spring; 2.100" Installed Height; 1 Spring COMP-948-1

Attributes:

• GTIN: 00036584280378
• Brand Name: COMP Cams
• Spring Rate: 687
• Valve Spring Series: Race Extreme
• Amazon ASIN: B00062YH8I
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Coil Bind Height: 1.13
• Compatible .570" Guide Diameter Spring Seats: 4786-1
• Compatible Retainer: 739-1
• Compatible Shims: 4756
• Compatible Spring Cup (O.D. Locator): 4708-1
• Damper: No
• Inner Spring Inside Diameter: 0.863/0.627
• Number of Springs: 3
• Outer Spring Inside Diameter: 1.196
• Outer Spring Outside Diameter: 1.66
• Seat Height: 2.1
• Seat Pressure: 332

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.4 x 1.2 x 1.8 inches
• Weight: 0.4409 lb
