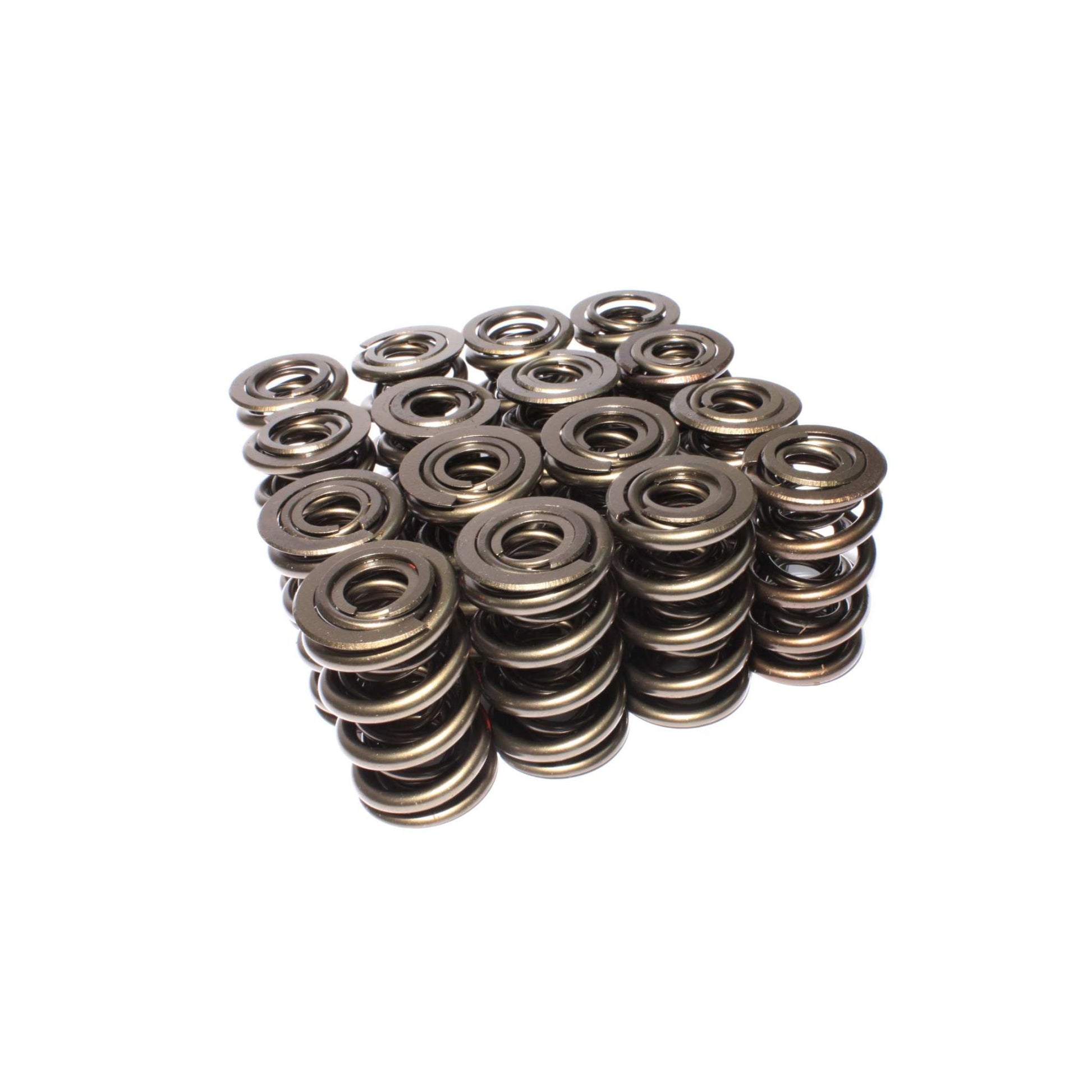

COMP Cams Race Extreme 1.686" OD Triple Springs; 2.200" Installed Height; 16 Springs COMP-26028-16

Attributes:

• GTIN: 00036584077633
• Brand Name: COMP Cams
• Coil Bind Height: 1.161
• Compatible .570" Guide Diameter Spring Seats: 4786-16
• Compatible Retainer: 739-16
• Compatible Shims: 4756
• Compatible Spring Cup (O.D. Locator): 4708-16
• Damper: No
• Inner Spring Inside Diameter: 0.864/0.624
• Number of Springs: 3
• Outer Spring Inside Diameter: 1.203
• Outer Spring Outside Diameter: 1.686
• Seat Height: 2.2
• Seat Pressure: 342
• Spring Rate: 712
• Valve Spring Series: Race Extreme
• Amazon ASIN: B000P595PQ
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.4 x 3.7 x 3 inches
• Weight: 7.2312 lb
