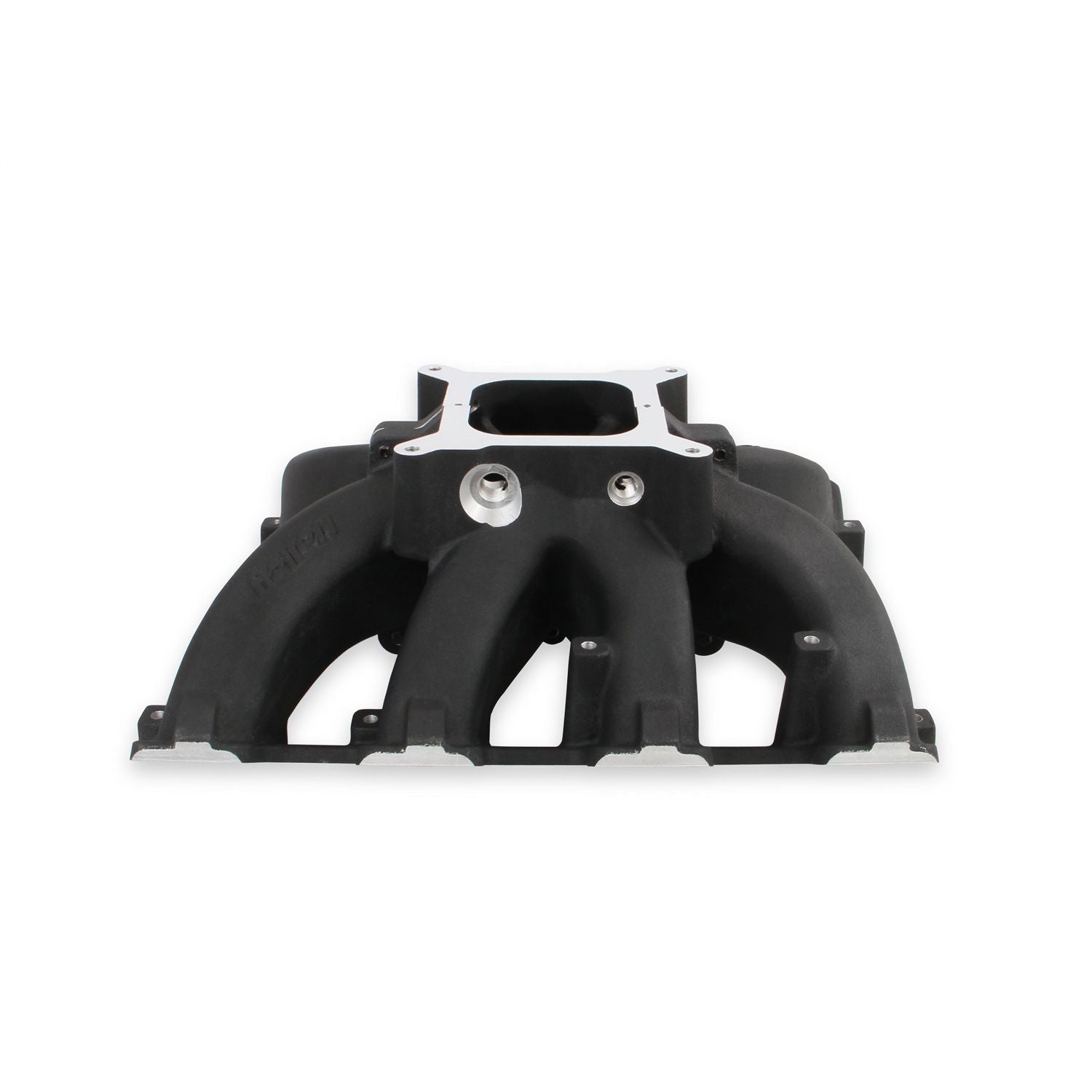

Holley Race Intake Manifold 300-291BK

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI. The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm. The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise.

• Maximum Performance Race Design With Hood Clearance Consideration
• Lighter Than Other Split Race Intakes
• Split Feature Making Porting Efforts Easy
• 33 To 50 Percent The Price Of Other Split Race Intakes
• Captured O Ring Seals At Head Ports And Split

Attributes:

• GTIN: 00090127065723
• Brand Name: Holley
• WARNING CA Proposition 65: No
• Barrel: Four
• Color: Black
• Engine Make/Size: GM LS1/LS2/LS6
• Finish: Black
• Flange Type: 4150 Square Bore
• Front Height: 7.250 in.
• Fuel System Type: Carb
• Manifold Type: Single Plane
• Rear Height: 7.250 in.
• RPM Range: 2500-7000

Extended Information:

• Country of Origin: China
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 12.5000 x 11.2000 x 9.0000 inches
• Weight: 7.5000 lb
