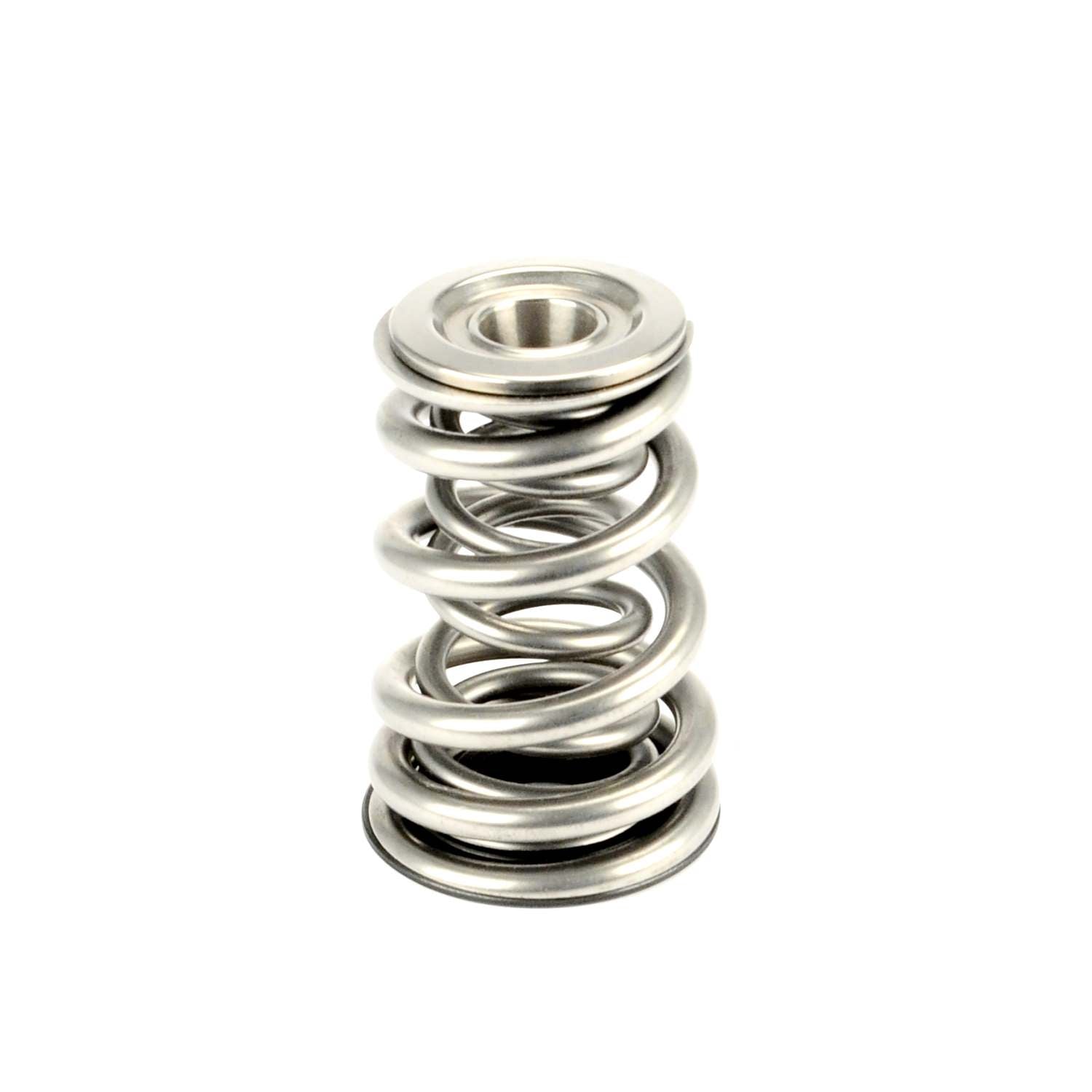

COMP Cams Race Sportsman 1.390" OD Conical Spring; 1.900" Installed Height; 1 Spring COMP-7256-1

Attributes:

• GTIN: 00036584283201
• Brand Name: COMP Cams
• Coil Bind Height: 1.16
• Compatible .570" Guide Diameter Spring Seat: 4670-1
• Compatible Retainer: 788-1
• Compatible Shims: 4754
• Damper: No
• Number of Springs: 1
• Outer Bottom Spring Inside Diameter: 0.99
• Outer Bottom Spring Outside Diameter: 1.39
• Outer Top Spring Inside Diameter: 0.66
• Outer Top Spring Outside Diameter: 1.06
• Seat Height: 1.9
• Seat Pressure: 160
• Spring Rate: 486
• Valve Spring Series: Race Sportsman
• Amazon ASIN: B00N6LS1A6
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 2.9 x 2.5 x 0.8 inches
• Weight: 0.1764 lb
