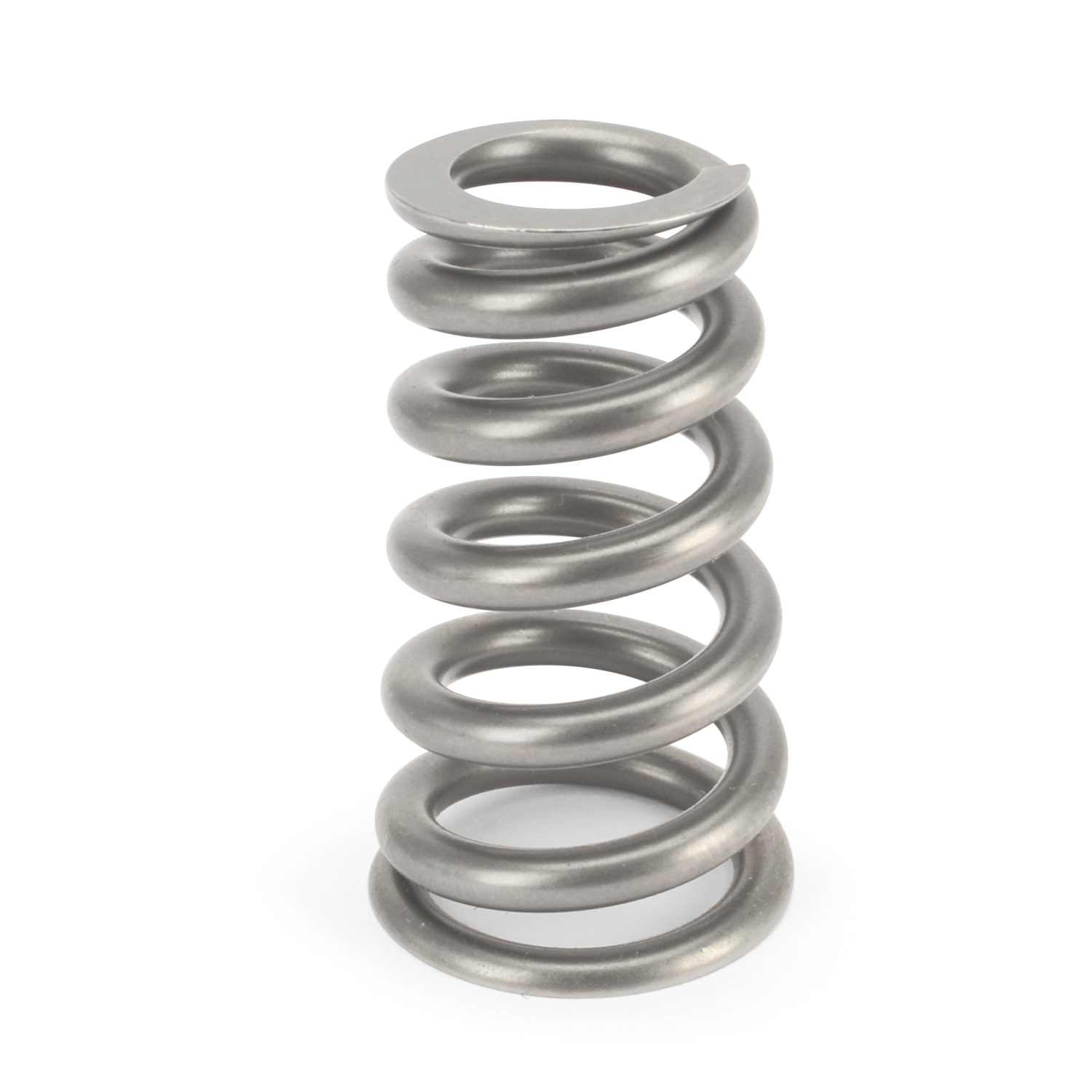

COMP Cams Race Street 1.290" OD Conical Spring; 1.800" Installed Height; 1 Spring COMP-7228-1

Attributes:

• GTIN: 00036584283140
• Brand Name: COMP Cams
• Coil Bind Height: 1.125
• Compatible .570" Guide Diameter Spring Seat: 4677-1
• Compatible Retainer: 788-1
• Compatible Shims: 4753
• Damper: No
• Number of Springs: 1
• Outer Bottom Spring Inside Diameter: 0.918
• Outer Bottom Spring Outside Diameter: 1.286
• Outer Top Spring Inside Diameter: 0.662
• Outer Top Spring Outside Diameter: 1.03
• Seat Height: 1.8
• Seat Pressure: 136
• Spring Rate: 440
• Valve Spring Series: Race/Street
• Amazon ASIN: B00N6LQEHI
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 1 inches
• Weight: 0.15 lb
