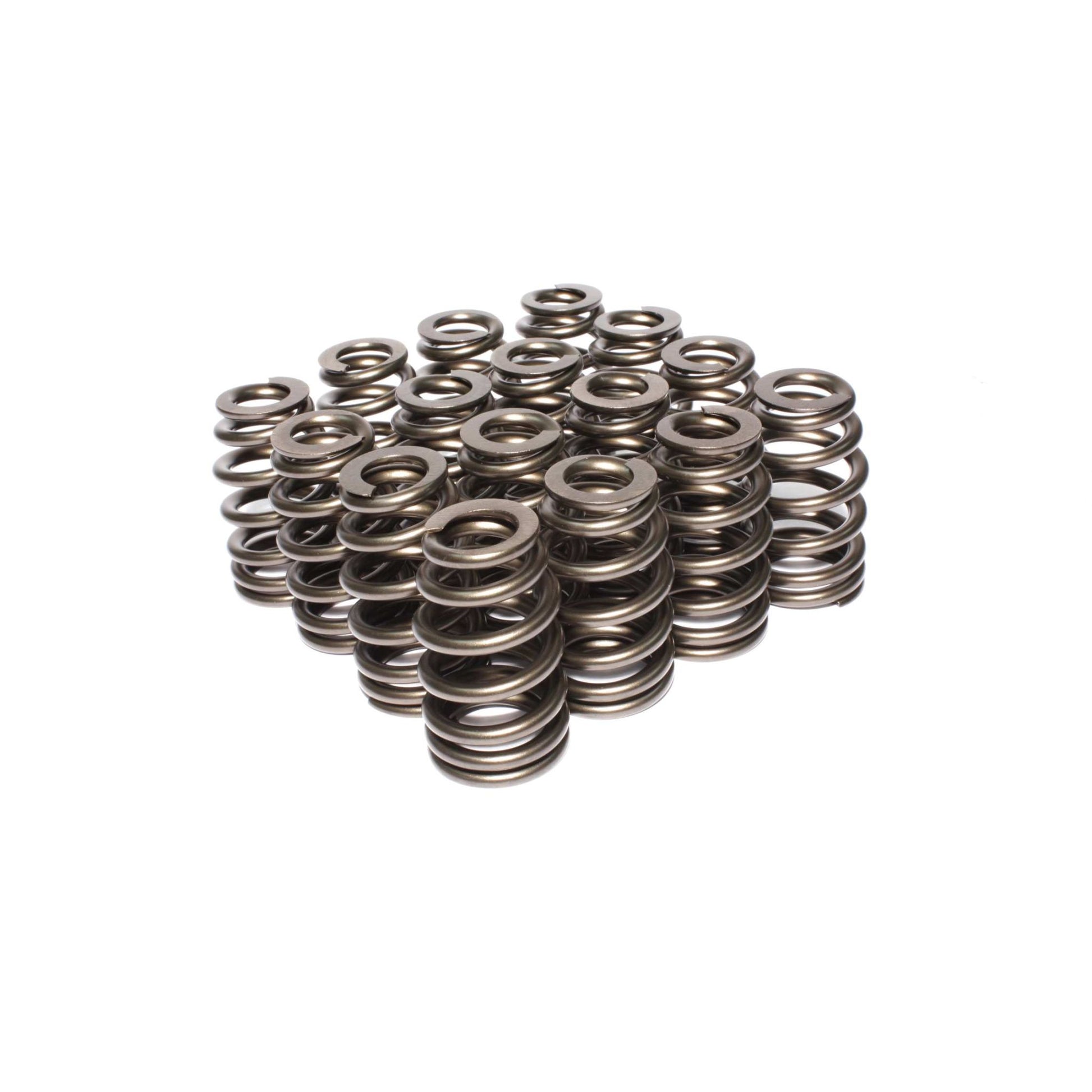

COMP Cams Race Street 1.444" OD Beehive Springs; 1.880" Installed Height; 16 Springs COMP-26120-16

Attributes:

• GTIN: 00036584088646
• Brand Name: COMP Cams
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Seat Pressure: 155
• Compatible Spring Cup (O.D. Locator): 4698-16
• Outer Top Spring Outside Diameter: 1.059
• Outer Top Spring Inside Diameter: 0.65
• Outer Bottom Spring Outside Diameter: 1.444
• Outer Bottom Spring Inside Diameter: 1
• Number of Springs: 1
• Damper: No
• Compatible Shims: 4754
• Spring Rate: 370
• Compatible Retainer: 795-16
• Compatible .630" Guide Diameter Spring Seats: 4697-16
• Compatible .570" Guide Diameter Spring Seats: 4696-16
• Coil Bind Height: 1.23
• Valve Spring Series: Race/Street
• Seat Height: 1.88
• Amazon ASIN: B0014F6FX6
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.4 x 3.7 x 2.8 inches
• Weight: 3.9242 lb
