Raised Trackbar Bracket for TJ Front Axle
Raised Trackbar Bracket for TJ Front Axle
Artec Industries
Part #
TJ3013
UPC #
Regular price
$87.99 USD
Regular price
Sale price
$87.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Product Description
Raised Trackbar Bracket for TJ Front Axle

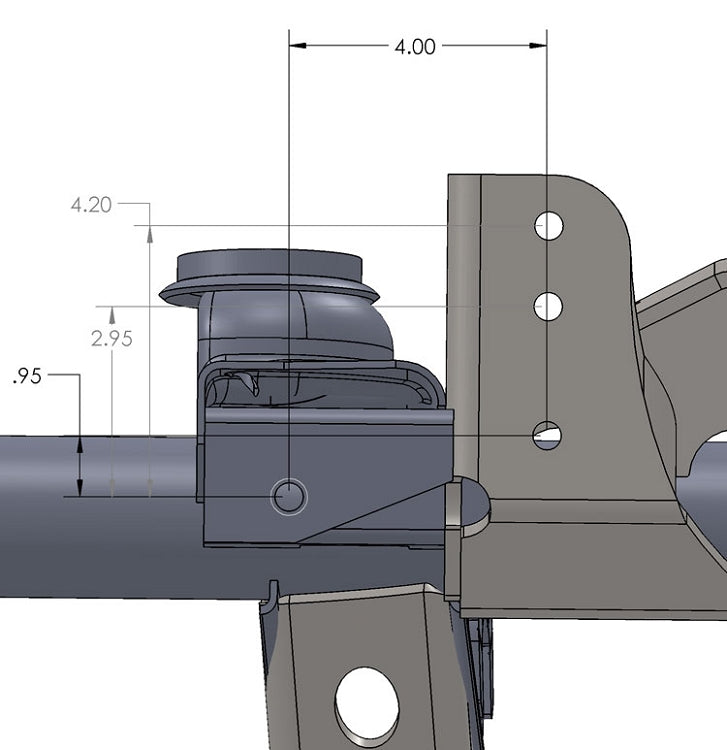

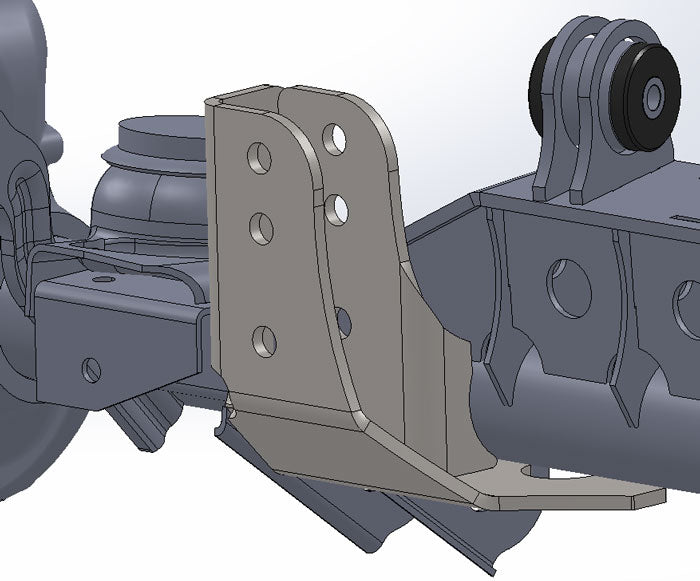

This heavy bracket is designed to replace the factory trackbar bracket for improved link geometry with crossover steering on the front 30 and Rubicon 44 axles in the Jeep TJ, LJ, XJ, and ZJ. If you've changed your steering, you need to match your trackbar to make it parallel to the draglink. This bracket gives you several options to find the perfect geometry. The 1/4" thick CNC precision cut and formed components of this setup ensure a quality, heavy duty solution.
NOTE: This bracket offers several raised trackbar holes. Every lift is different and some trial and error may be necessary to find the ideal ride. This bracket is NOT bolt on and requires welding. This bracket will also require modifying or fabricating a new trackbar itself since it will be slightly shorter. This bracket attaches to the axle next to the factory coil perch.
Joint width is 1.65", so use our Narrow Misalignment Spacers with 7/8" Heims if you are building your own Trackbar.
|
Features include:
|
NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
*Requires a custom Trackbar
