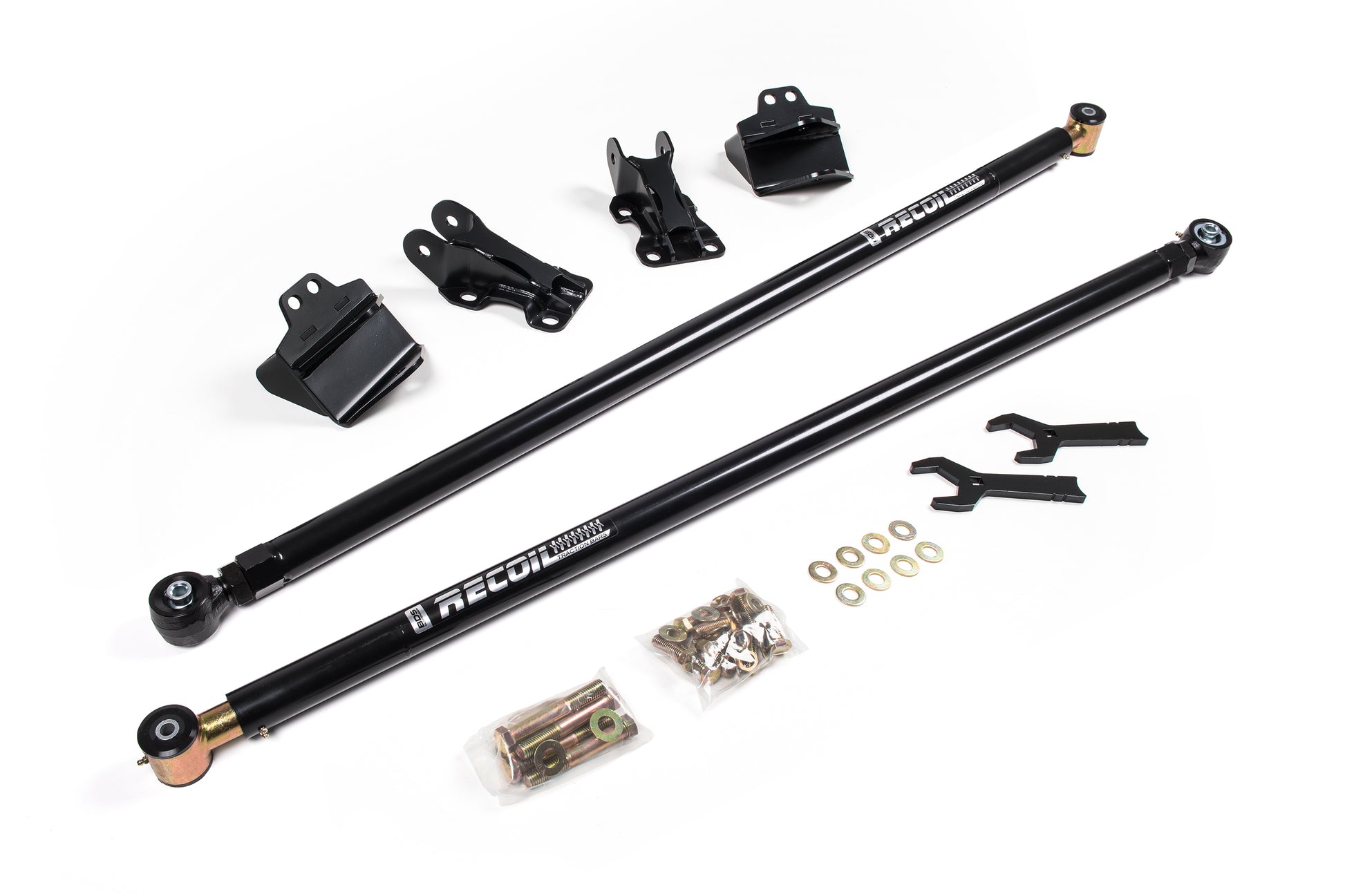

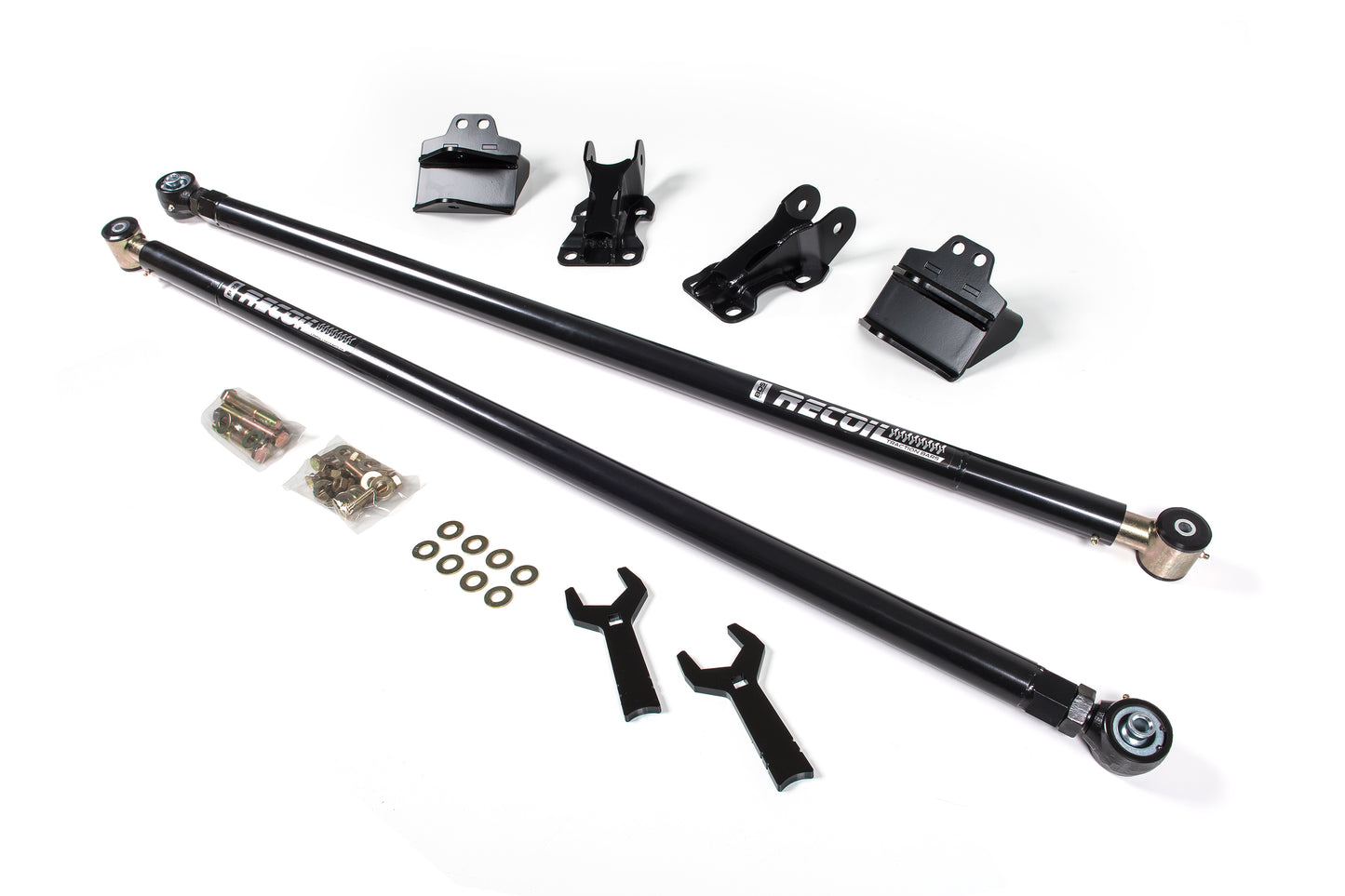

Recoil Traction Bar Kit - Chevy Silverado And GMC Sierra 2500 / 3500 HD (20-24) Long Bed

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank a single sided snap ring and 1-piece flex ball the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

• Adjustable axle wrap control using dual-stage resistance springs.
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
• Spring preload can be adjusted on the vehicle without disassembling the traction bar.
• Traction bar ends are greaseable and rebuildable.
• Mounting brackets are bolt-on only requiring minor drilling for frame mount installation.
