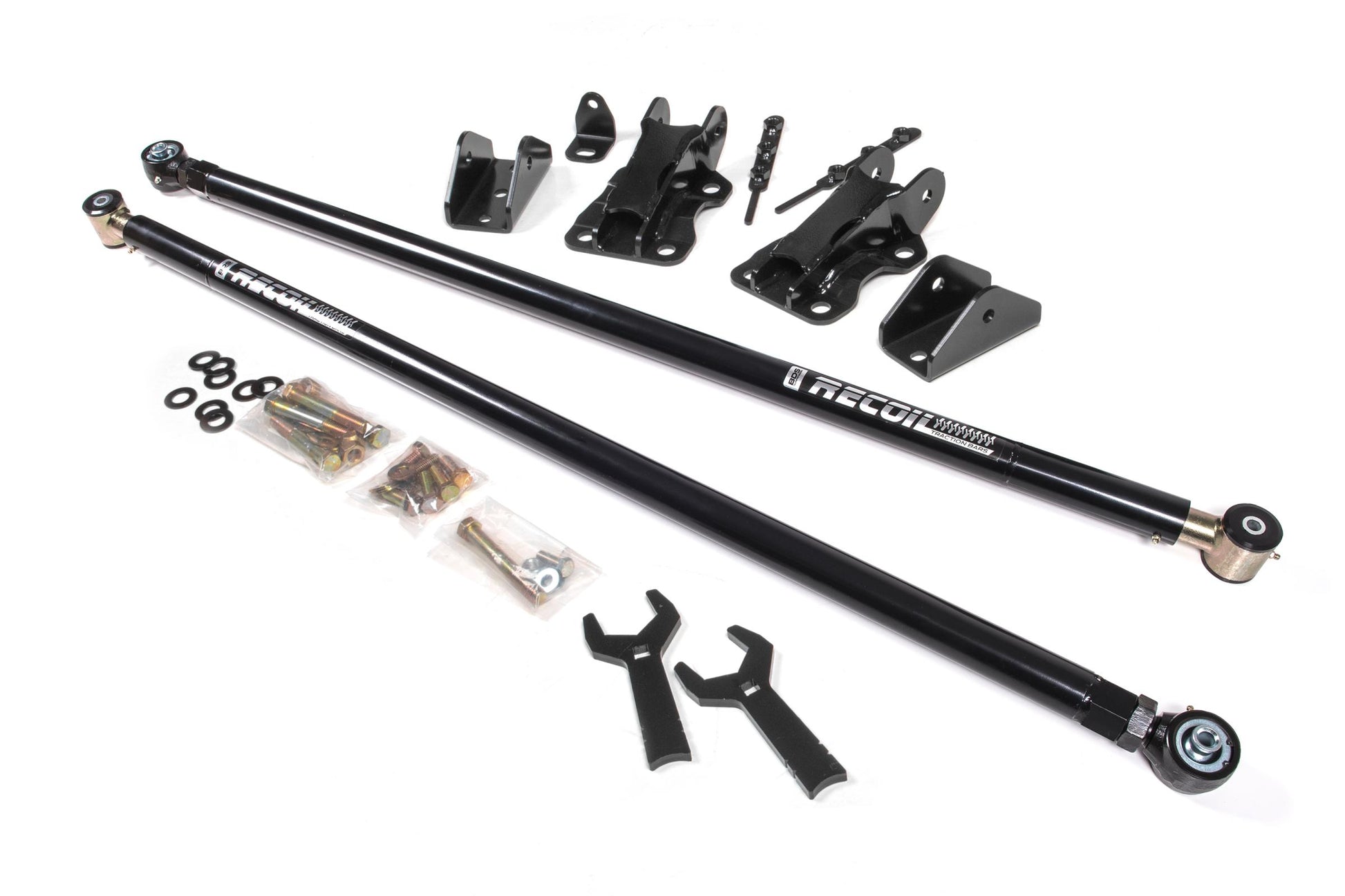

Recoil Traction Bar Kit - Ford F250/F350 Super Duty (17-24) W/ 4.5 In Axle
Recoil Traction Bar Kit - Ford F250/F350 Super Duty (17-24) W/ 4.5 In Axle
BDS Suspension:
Part #
BDS-BDS2312
UPC #
Regular price
$950.90 USD
Regular price
$950.90 USD
Sale price
$950.90 USD
Unit price
/
per
Product Description
Product Description
Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank a single sided snap ring and 1-piece flex ball the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.
- Adjustable axle wrap control using dual-stage resistance springs
- Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Traction bar ends are greaseable and rebuildable
- Mounting brackets are bolt-on only requiring minor drilling for frame mount installation
Attributes
Attributes
- GTIN: 00840416414219
- Brand Name: BDS Suspension
- Installation Difficulty: moderatelyEasy
- Installation Time: 3-4 Hrs
Extended Information
Extended Information
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Weight: 0 lb
