Reducing Thread Adapter ORB Female to -AN Male
Reducing Thread Adapter ORB Female to -AN Male
BOOST Products USA
Part #
GA-O10FD6-B
UPC #
4250815850505
Black Friday Sale On All November Long! No Code Needed!
Couldn't load pickup availability
Product Description
Product Description

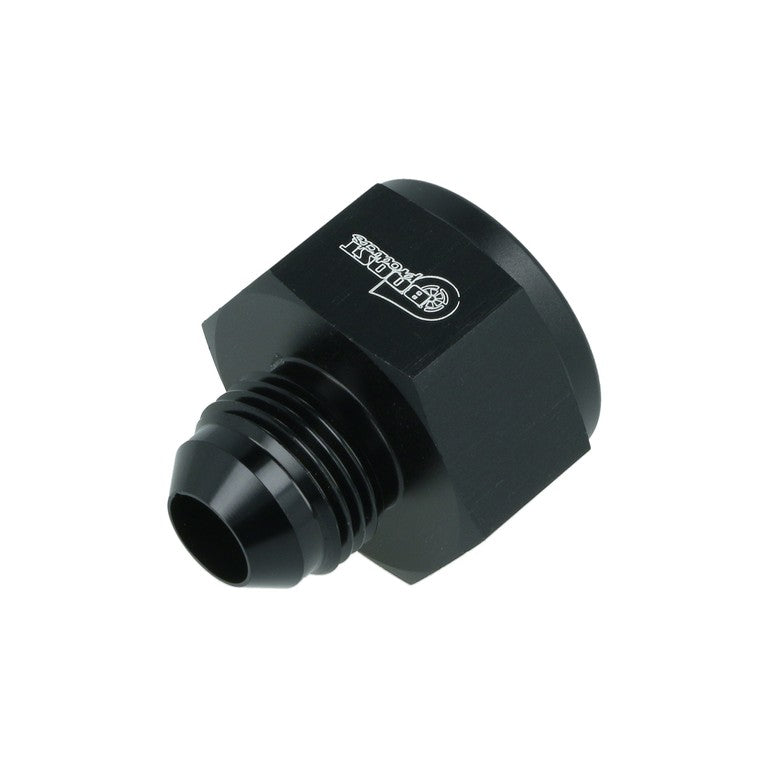

Reducing Thread Adapter ORB Female to -AN Male
The Reducing Thread Adapter ORB Female to -AN Male is CNC machined from 6061-T6 aluminum and conforms to AN and JIC specifications. Like all BOOST Products fittings and adapters it is suitable for oil, water and fuel lines and resistant to E85 and methanol.
Key Features
- CNC machined from 6061-T6 aluminum
- Conforms to AN and JIC specifications
- Suitable for fuel, E85, methanol, oil, water and pneumatic lines
- Finish: satin black or satin silver

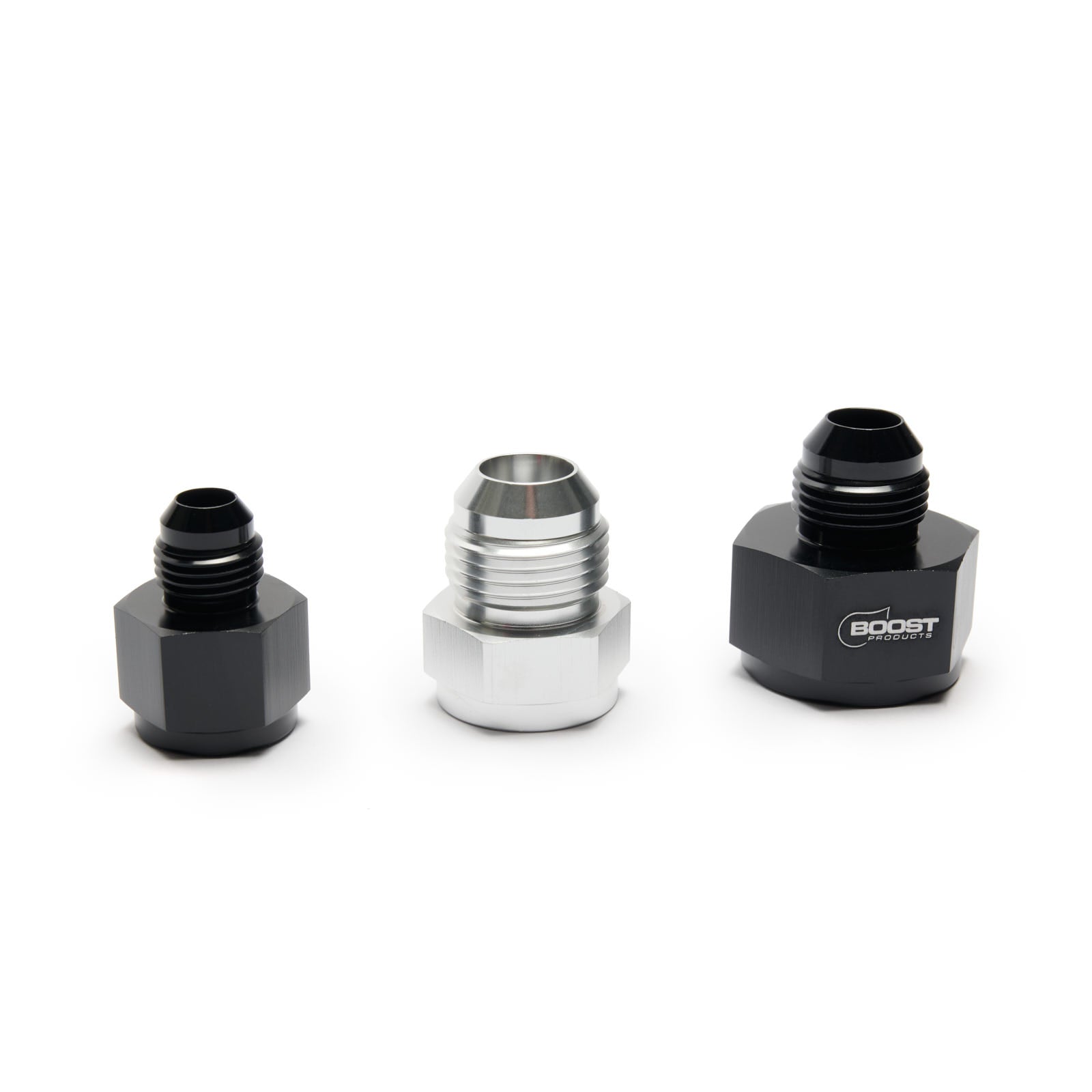

Available Sizes
| Thread A | Thread B | Part No. satin black | Part No. satin silver |
|---|---|---|---|

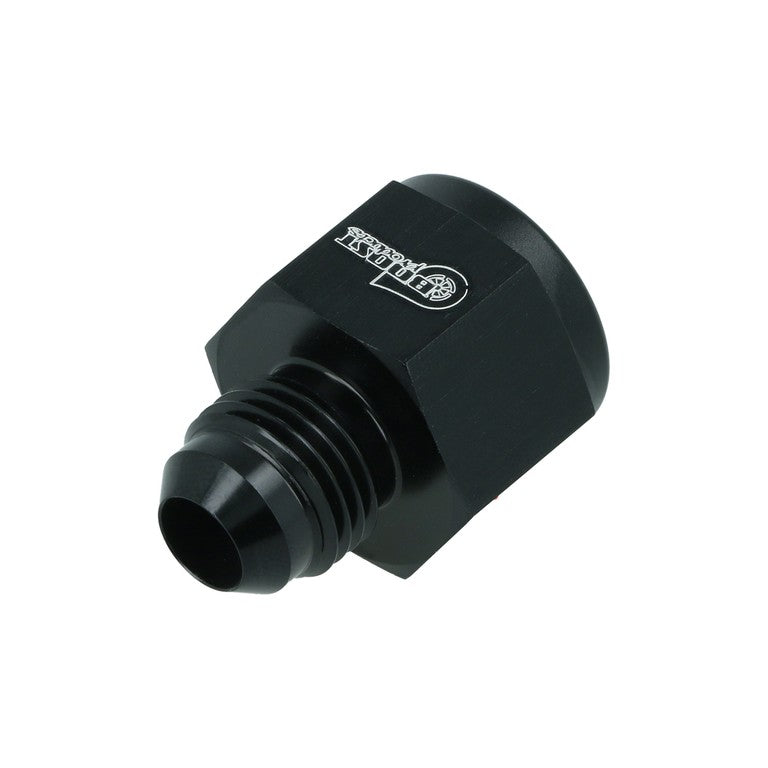

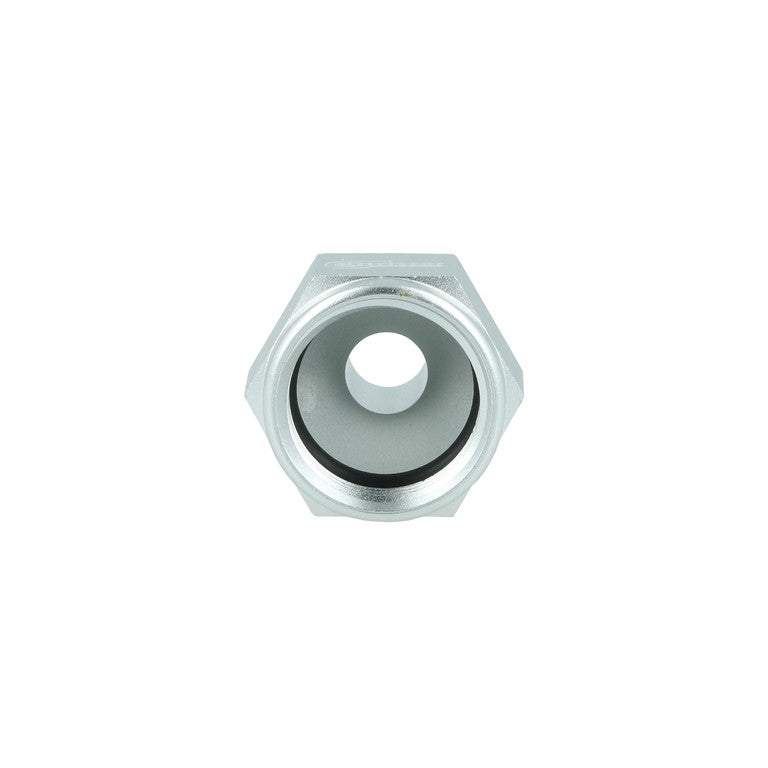

| ORB -08 AN / Dash 8 female | -06 AN / Dash 6 male | GA-O8FD6-B | GA-O8FD6-S |

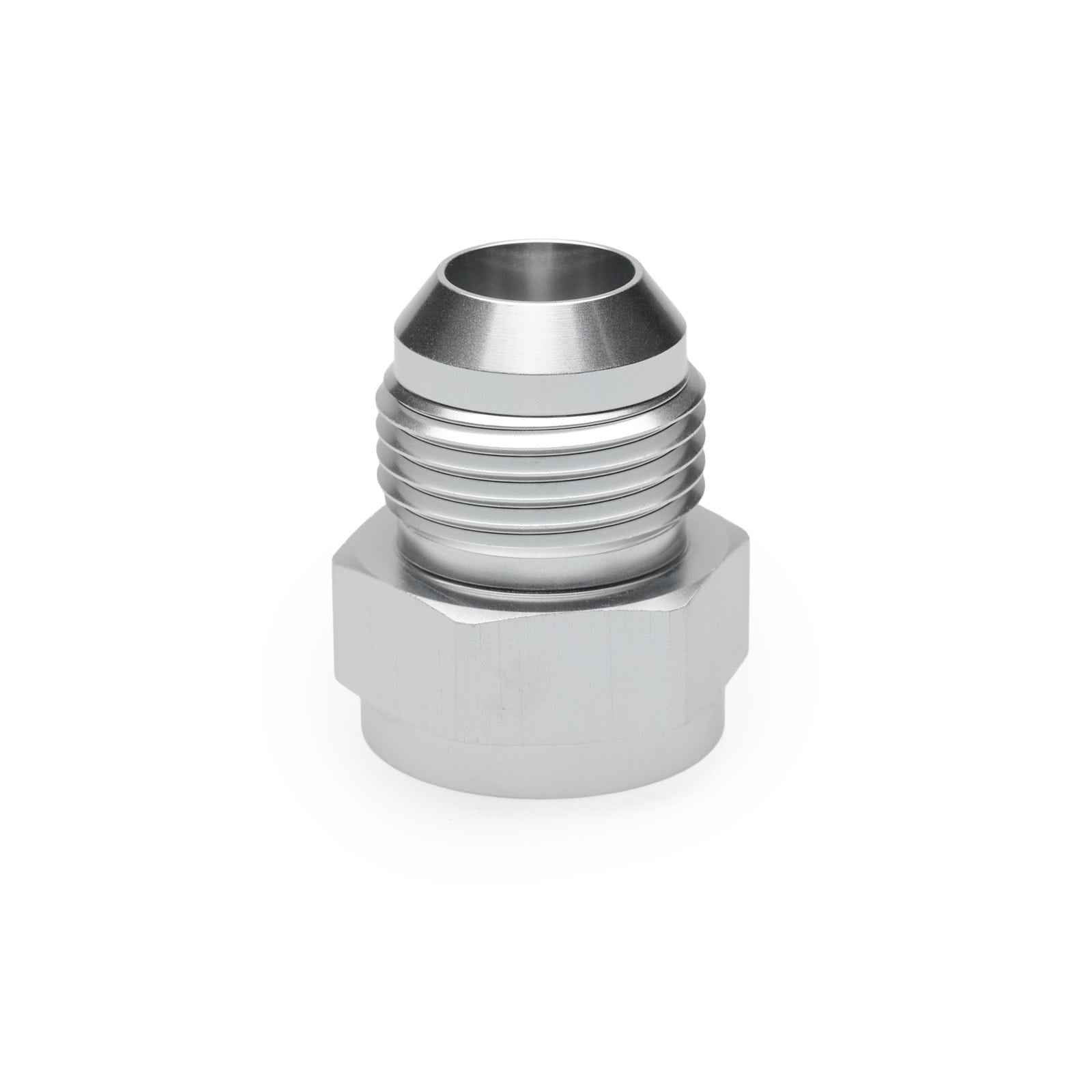

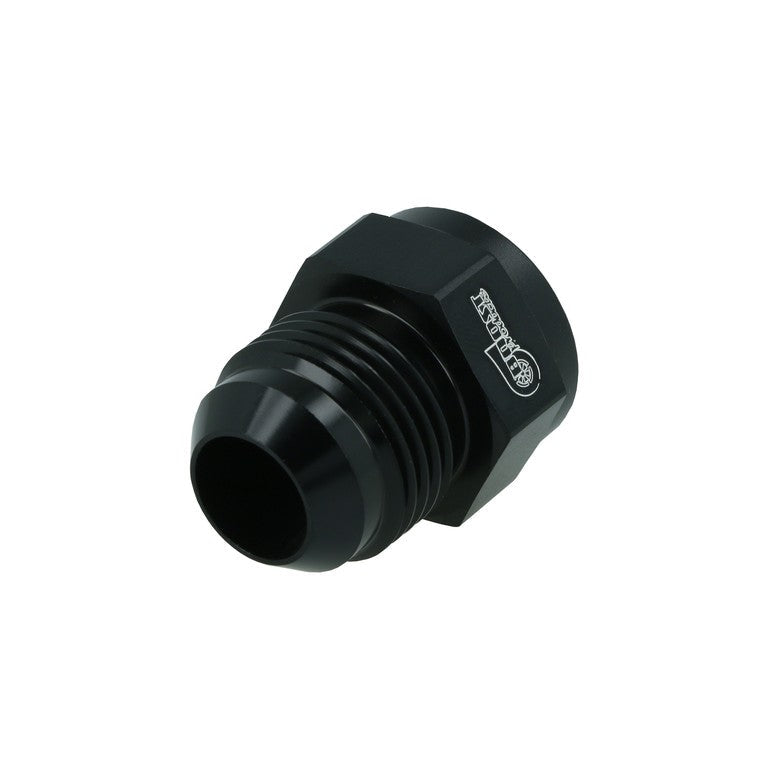

| ORB -08 AN / Dash 8 female | -10 AN / Dash 10 male | GA-O8FD10-B | GA-O8FD10-S |

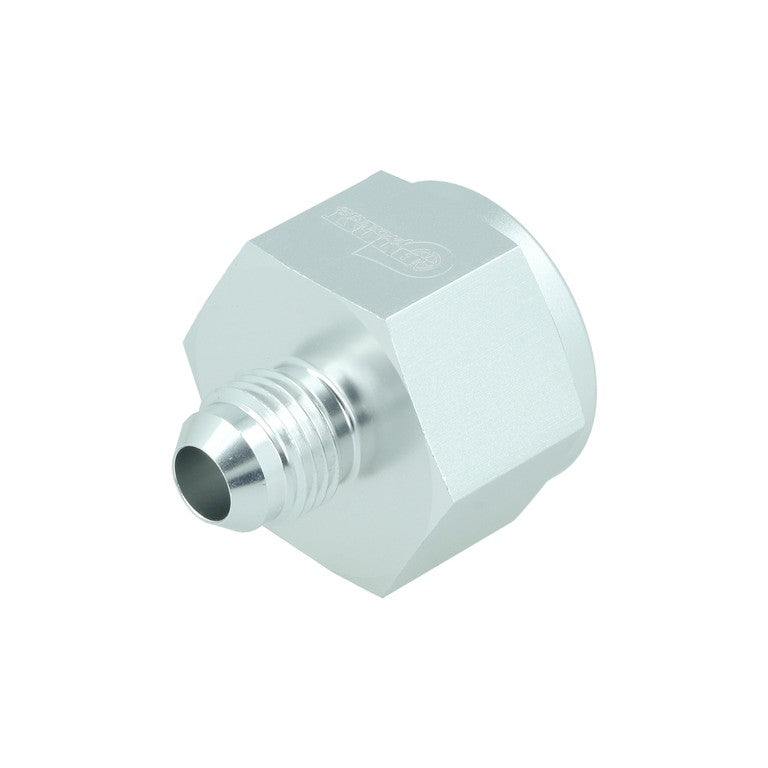

| ORB -10 AN / Dash 10 female | -06 AN / Dash 6 male | GA-O10FD6-B | GA-O10FD6-S |

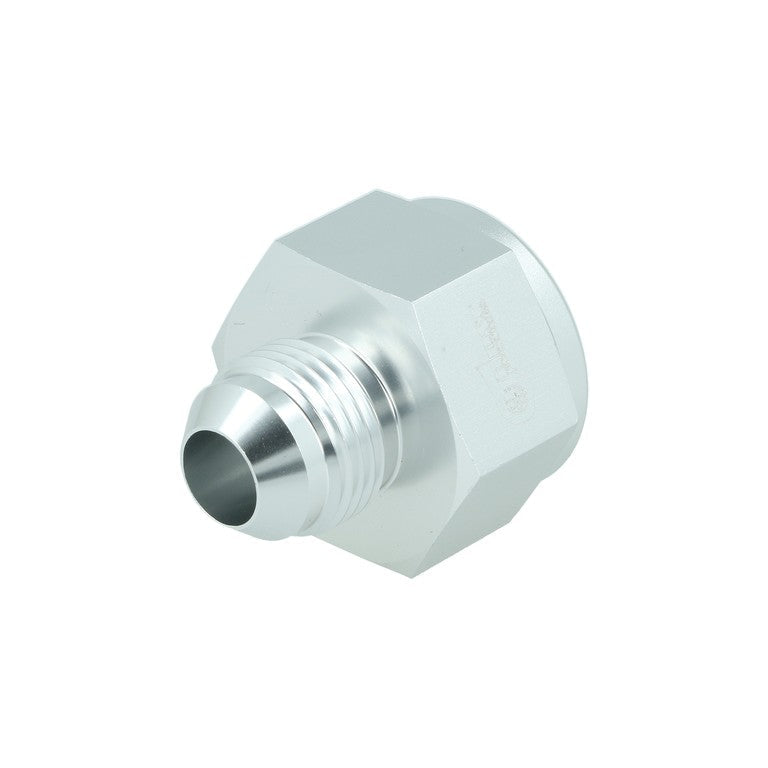

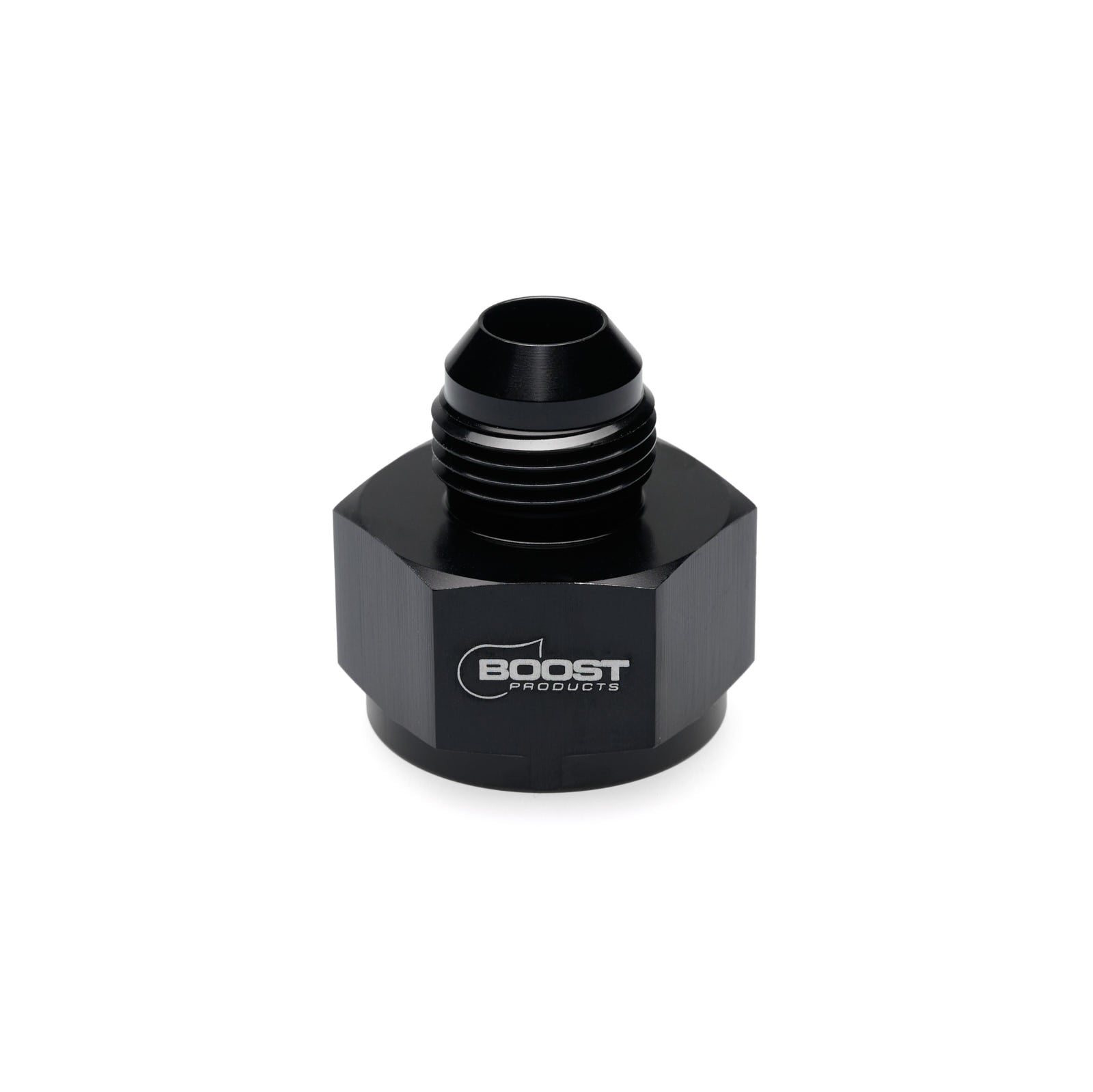

| ORB -10 AN / Dash 10 female | -08 AN / Dash 8 male | GA-O10FD8-B | GA-O10FD8-S |
Frequently Asked Questions
What does ORB mean?
ORB stands for O-ring boss. It is a straight thread that seals with an O-ring, not on the threads themselves.
How do I identify my AN size?
The dash number is the tube outer diameter in sixteenths of an inch, so -06 AN corresponds to a 3/8" tube. The thread sizes are 7/16"-20 for -04 AN, 9/16"-18 for -06 AN, 3/4"-16 for -08 AN, 7/8"-14 for -10 AN and 1 1/16"-12 for -12 AN.
Which AN size do I need for turbo oil lines?
For turbocharger plumbing, -04 AN is the usual choice for oil feed lines and -10 AN for oil return lines. For fuel, water and other lines, match the fitting to the existing ports and to the component manufacturer's recommendation.
Is it safe for E85 and methanol?
Yes. BOOST Products fittings and adapters are resistant to E85 and methanol and are also suitable for fuel, oil, water and air.
