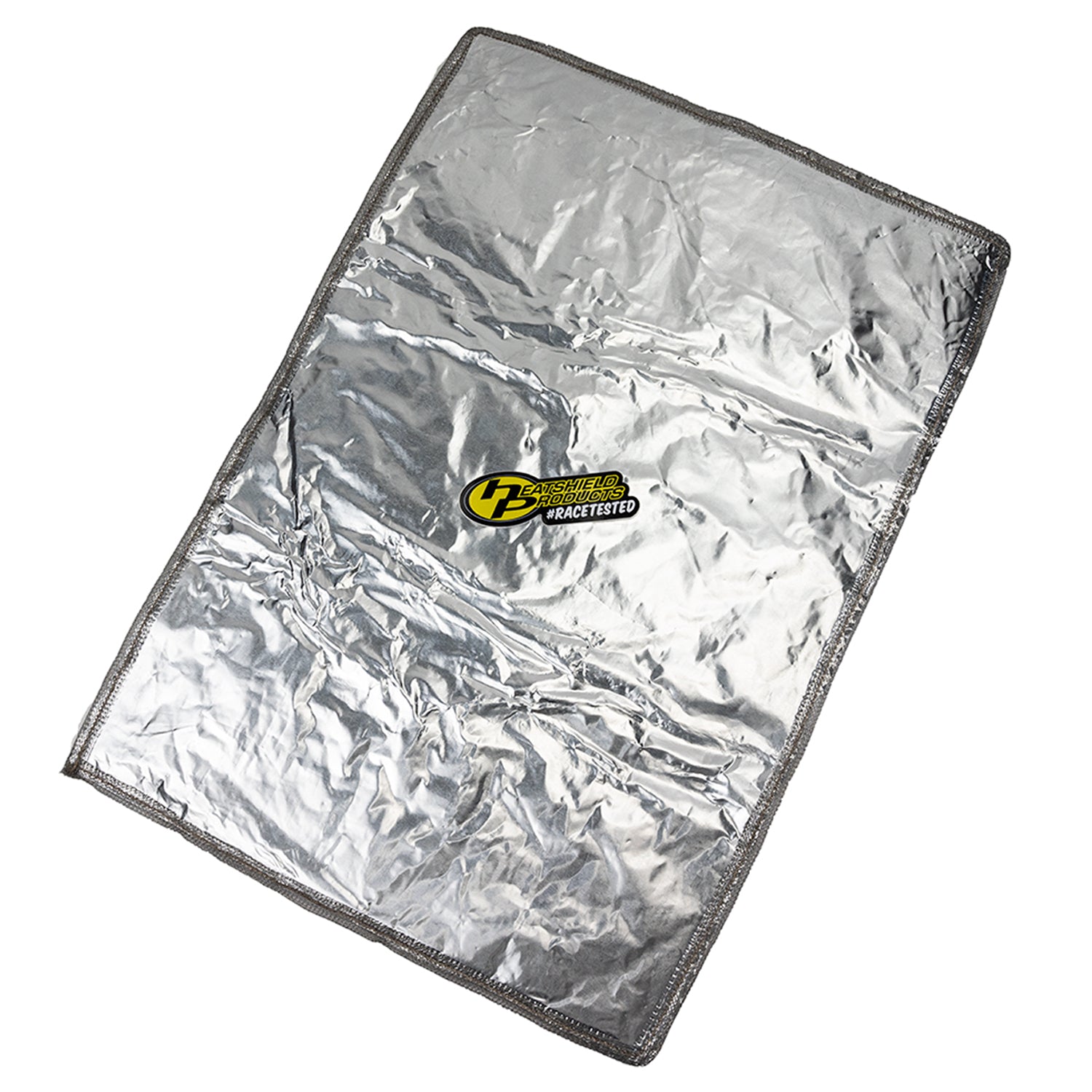

Heatshield Products Reflects up to 9 percent of heat, Flexible bends around easily, Lowers Heat 101420

The highest quality reflective heat shield on the market, there is no better way to shield up to 9% of radiant heat. We use a 1/4 inch thick ceramic inner pad sandwiched between heavy duty foil and bound together with a stainless steel mesh at the edges. By binding the edges with this mesh, we create greater flexibility and a more rugged product. This heat shield withstands 11F continuous radiant heat and 5F of direct contact. Thermaflect Shield is intended for wrapping around air boxes, electrical boxes, air conditioning components, or used as a heat shield for a catalytic converter, muffler, DPF, or a floor heat shield. All of these heat shields may be fastened with Thermal-Tie, safety wire, screws, or rivets.

• Continuous operating reflective temperature of 11F, 2F intermittent
• Capable of reflecting over 9% of radiant heat
• Flexible, bends and conforms to almost any shape
• Simple installation, install in minutes!

Attributes:

• GTIN: 00819825010138
• Brand Name: Heatshield Products
• Conductivity Warning: Caution this material is electrically conductive; be sure to insulate any terminals that might come in contact with this product.
• Install Tips: Locking Ties Rivets or Spray-on Adhesive
• Instructions Included: No
• Insulation Type: Radiant heat barrier, needs 1 inch of air space, should not contact heat source.
• Material: Proprietary Data
• Operating Temperature: 1000F
• Peak Temperature: 1500F
• Product Dimensions: 1/4 thk x 14 x 20 in
• Safety Equipment Warning: Always wear safety glasses, dust mask, gloves and long sleeves are recommended when handling this product.
• Color: Aluminum/White

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 8 x 2 inches
• Weight: 0.55 lb
