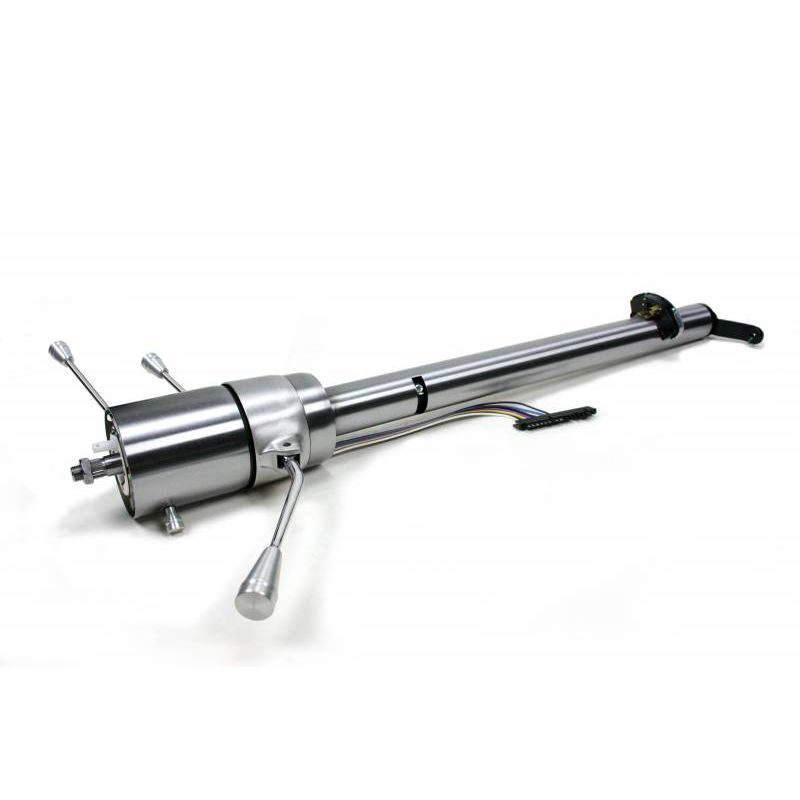

This retrofit column is designed to fit your Chevelle, El Camino or GTO and does NOT require modification to your original vehicle to install. Simply remove your old column, saving your original under dash mount as well as the original floor mount. Using Borgeson joints and shafting, install your new steering column in place of the old. These columns come complete with a neutral safety switch, (shift indicator is not included). The shift pattern on the column allows you to use either a 3-speed or 4-speed automatic transmission. A shift linkage (new or original) is required for installation and will attach to the lower shift arm provided on the column. Using an adaptor, add an aftermarket wheel and the gripping surface of the new wheel will be in the same location as the original.
Attributes:
GTIN:
Brand Name: IDIDIT
Length: 30.5
Shifter Type: Column Mounted
Telescopic Steering Wheel: No
Tilt Steering Wheel: Yes
Universal Or Retrofit: Retrofit
Output Shaft Type: 3/4" 36 Spline
Collapsible: No
Wiring Adaptor: No
4 Way Flasher: Yes
Wired For Horn: Yes
Finish: Polished Aluminum
Dash Mount: OEM
Floor Mount: OEM
Tube Diameter: 2
What Steering Wheel Fits: OEM w/ ididit Horn Kit or Aftermarket Wheel
Neutral Safety Switch: Yes
Ignition: No
Turn Signal Switch: GM 3 7/8"
Rack and Pinion Version: No
Extended Information:
Country of Origin: United States
Life Cycle Status: Available To Order
Packing Information:
Quantity of Each: 1
Package UOM: EA
Dimension: 45.5 x 11.75 x 5.75 inches
Weight: 18.7 lb
