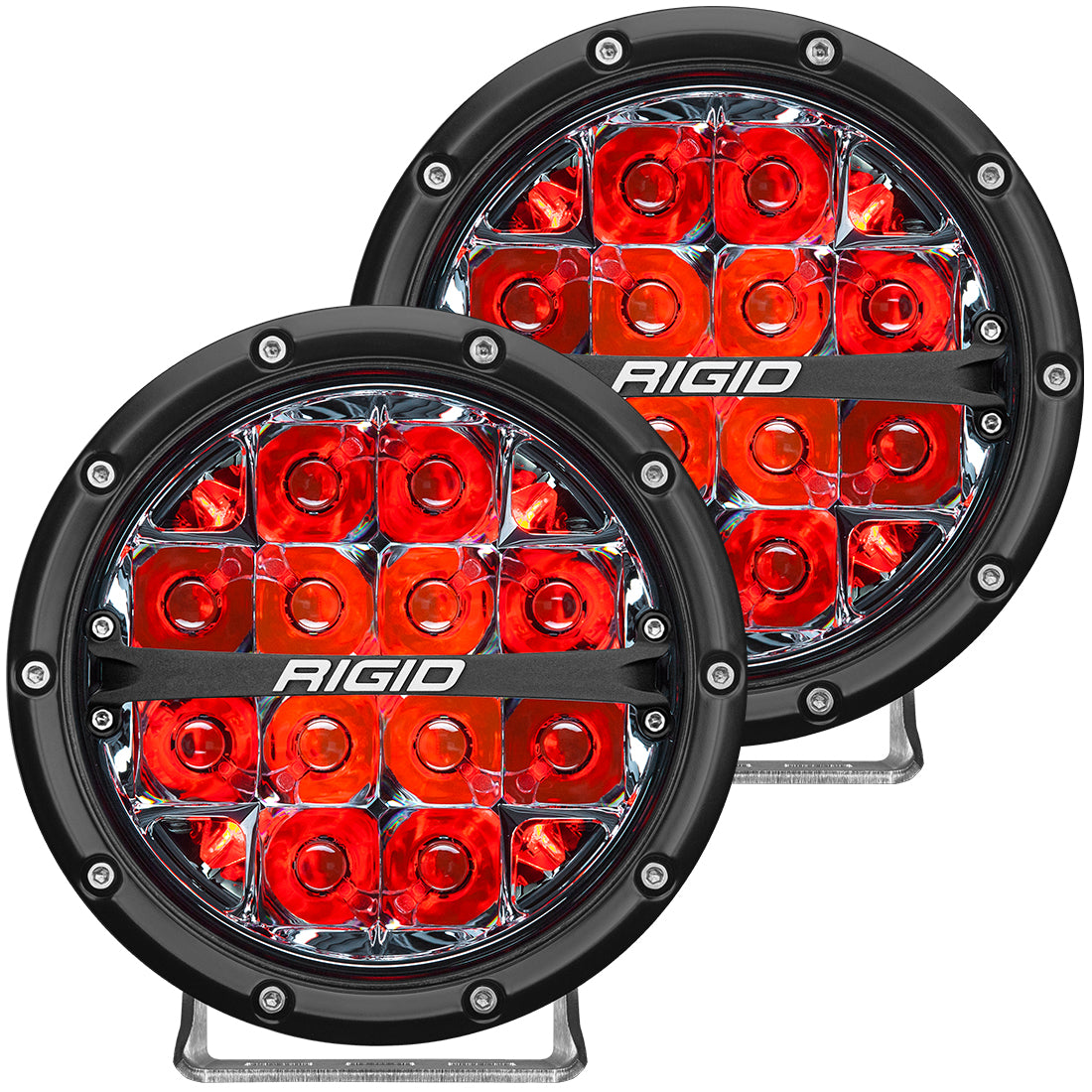

RIGID Industries 360-Series 6 Inch Round LED Off-Road Light Spot Beam Pattern for High Speeds Red Backlight Pair 36203

RIGID introduces the all-new 360-Series family of LED lights. The optimized beam patterns project up to 8,600 raw lumens and are protected by an aluminum housing, features a blacked-out circuit board, prominent RIGID branding, and limited lifetime warranty making them the most robust and useful round lights on the market. Choose between a 4-inch or 6-inch light, preferred backlight color and beam pattern for a customized experience and look. RIGIDs 360-Series feature beam patterns available from 17 degrees to 60 degrees, offering an option for any application. Available in 4 backlight colors: red, white, blue or amber. the RIGID 360-Series 4-inch also available in street legal SAE Compliant white and selective yellow. RIGIDs 360-Series round lights seamlessly integrate into multiple OEM applications and makes it easier than ever to Own The Night. Harness sold separately.

• Back Lighting Independently Controlled
• Over/Under Voltage Protection
• IP68 Compliant - Dust/Water Ingress
• Pressure Equalizing Vent
• Black Exposed Printed Circuit Board
• Patented Optics
• 50,000 Hr+ LED Lifespan
• Wiring Harness Sold Separately
• Limited Lifetime Warranty
• Off Road Use Only
• Available Backlight Colors: Red, White, Blue or Amber
• Stainless Steel Mounting Bracket Included
• Removable Bezel for Color Matching
• Removable Bezel and Side Fairings for OEM Applications
• 9-36 VDC Operation
• Flying Leads for Universal Installation
• Alloy Housing and Heatsink
• Reverse Polarity Protection

Attributes:

• GTIN: 00849774033513
• Brand Name: RIGID Industries
• A = LUX at 10 Meters: 2130.9
• Add-On: 363675, 363671, 363672, 363674, 1063, 1067, 1031, 30130, 30140, 30150
• Amp Draw: 5.07
• ASIN: No
• B = Beam Distance with 1 LUX: 461.6
• C = Beam Distance with .25 LUX: 923.2
• Field Horizontal (Measured in Degrees): 17.2
• Field Vertical (Measured in Degrees): 17
• Number of LEDs: 12
• Peak Beam Intensity (cd): 213091
• Product Family: 360-Series
• Product Fits What: Universal Fit
• Product Weight: 3.01
• Raw Lumens: 8670
• Watts: 72
• What's In The Package: Lights, mounting hardware

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.5 x 17 x 6.5 inches
• Weight: 7.18 lb
