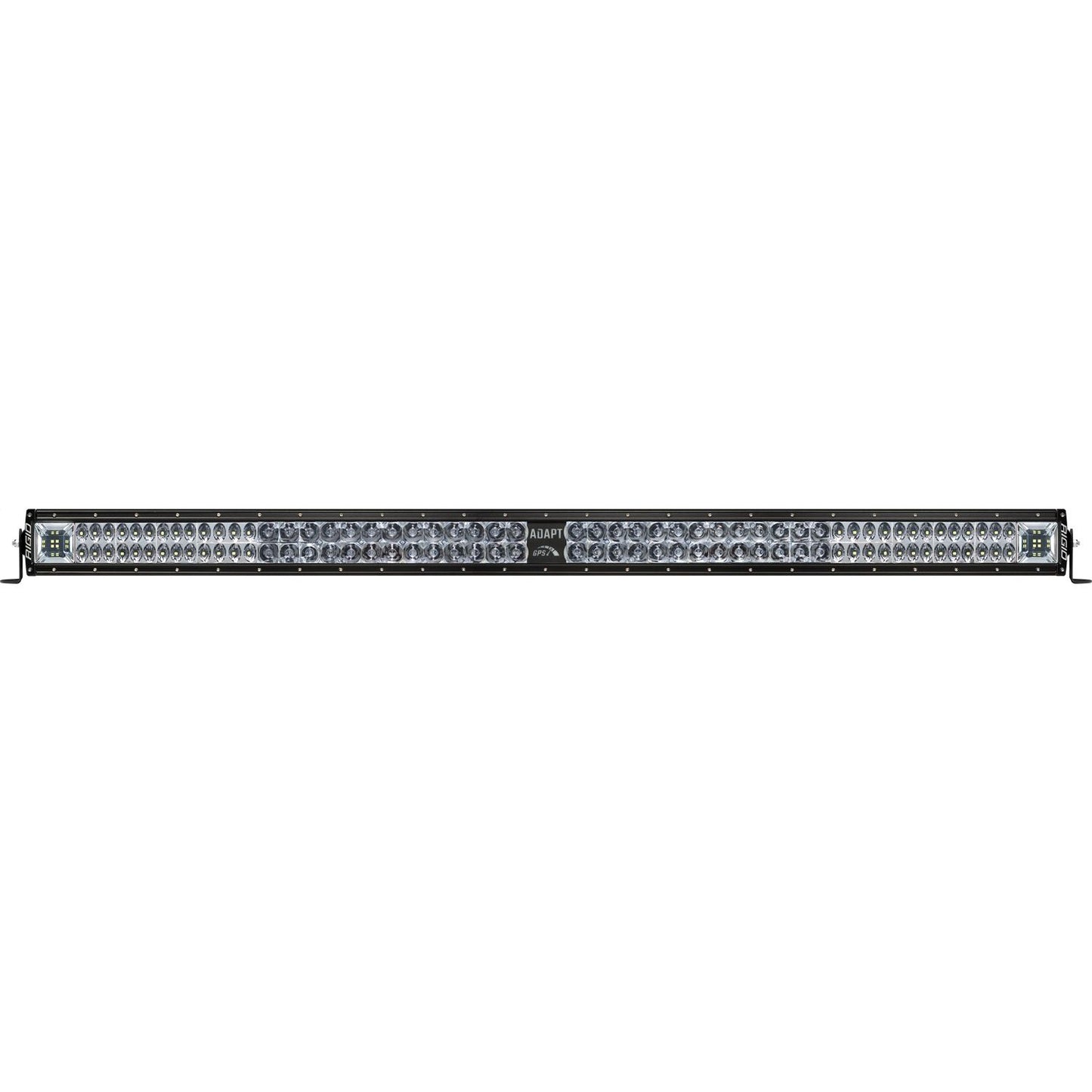

RIGID Industries Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module 50 Inch 290413

The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.

• Universal Fit, Fits All Existing E-Series Grilles and Mounts
• Use In Adapt Mode Or All On
• Limited Lifetime Warranty
• Alloy Housing and Heatsink
• Unbreakable Polycarbonate Lens
• Pressure Equalizing Vent
• Black Exposed Printed Circuit Board
• Patented Optics
• 50,000 Hr+ LED Lifespan
• Off Road Use Only
• Harness, Switch & Relay Included
• 3 Optic Zones - Scene, Driving, Spot
• Seamless Beam Transition
• Slow Speed, Moderate Speed & High Speed Beam Patterns
• 9-36 VDC
• Two Layers of Adaptive Response
• Active Power Management System - Power Capacity Sensing
• Active View Technology - Internal GPS Module

Attributes:

• GTIN: 00849774033179
• Brand Name: RIGID Industries
• A = LUX at 10 Meters: 9398
• Add-On: 11001, 11002, 11003, 11008, 46590, 1063, 1067, 1031, 30130, 30140, 30150
• ASIN: No
• B = Beam Distance with 1 LUX: 969
• C = Beam Distance with .25 LUX: 1939
• Field Horizontal (Measured in Degrees): 17
• Field Vertical (Measured in Degrees): 16
• Number of LEDs: 112
• Peak Beam Intensity (cd): 939827
• Product Family: Adapt
• Product Fits What: Universal Fit
• Product Weight: 13.84
• Raw Lumens: 38896
• Size: 50 in.
• Watts: 358
• What's In The Package: Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions
• Zone 1 A: 53.62
• Zone 1 Amp Draw: 6.3
• Zone 1 B: 73.2
• Zone 1 C: 146.5
• Zone 1 Horizontal Field beam angle: 101.9
• Zone 1 LED's count: 8
• Zone 1 Peak CD: 5362
• Zone 1 Raw Lm: 8641
• Zone 1 Vertical Field beam angle: 96.5
• Zone 1 Watts: 88
• Zone 2 A: 2285.65
• Zone 2 Amp Draw: 19.6
• Zone 2 B: 478.1
• Zone 2 C: 956.2
• Zone 2 Horizontal Field beam angle: 51.1
• Zone 2 LED's count: 52
• Zone 2 Peak CD: 228565
• Zone 2 Raw Lm: 33176
• Zone 2 Vertical Field beam angle: 22.1
• Zone 2 Watts: 274
• Zone 3 A: 9398.27
• Zone 3 Amp Draw: 25.6
• Zone 3 B: 969.4
• Zone 3 C: 1938.9
• Zone 3 Horizontal Field beam angle: 17.7
• Zone 3 LED's count: 52
• Zone 3 Peak CD: 939827
• Zone 3 Raw Lm: 38896
• Zone 3 Vertical Field beam angle: 16.5
• Zone 3 Watts: 358

Extended Information:

• Country of Origin: Mexico
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 53.25 x 6 inches
• Weight: 19 lb
