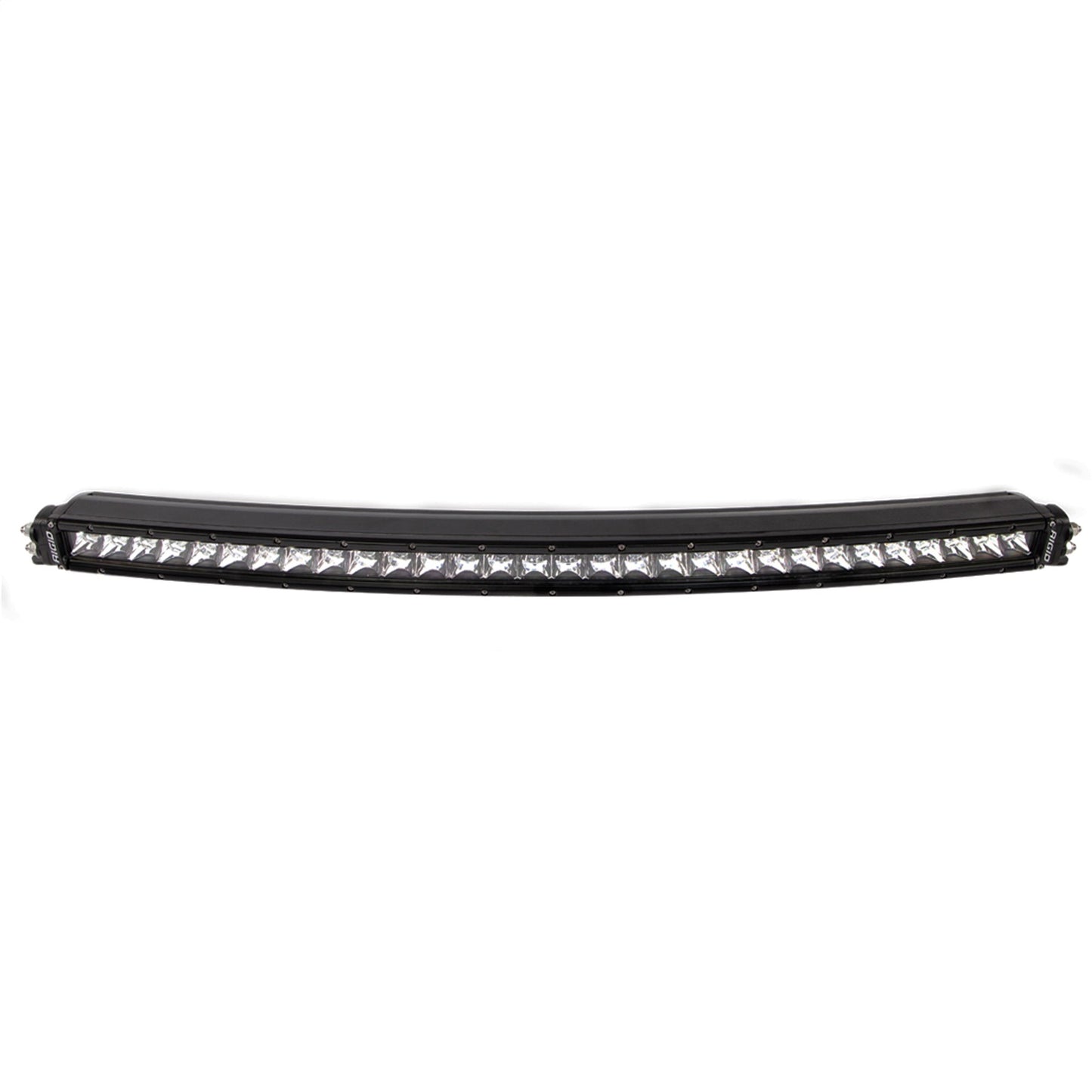

RIGID Industries RDS SR-Series PRO Curved LED Light Bar Spot Optic 30 Inch Black Housing 88331

RIGID revolutionized the lighting industry with the RDS Series, the worlds first curved LED light bar. The new RDS SR-Series PRO offers the same great styling and functional advantages of the RDS-Series in a more streamlined package. The SR-Series has always provided a sleek, low-profile lighting solution that measures less than 2 inches tall. By treating the proven design to a gentle arc, the RDS SR-Series PRO is right at home in modern bumpers, windshields, grille inserts, and other applications where a curve look is more complimentary than that of a traditional light bar. The curve is for more than just looks, it is also functional: the arc of the RDS SR-Series PRO light bar provides a wider spread of light, providing unmatched lighting coverage with a single LED light bar. The bar offers the same quality extruded aluminum housing and unbreakable polycarbonate lens as other RIGID products, but it now packs more light output than ever thanks to PRO LEDs with more raw lumens. More than just functional, new blacked out circuit boards and prominent branding further enhance the RDS SR-Series sleek and subtle look. Built with the same quality components as the rest of RIGIDs lighting products, the new RDS SR-Series PRO provides reliable and efficient lighting on demand. Own The Night with RIGID curved LED light bars.

• Black Exposed Printed Circuit Board
• RFI/EMI Protection
• Up to 50 Degree Horizontal Spread
• IP68 Compliant - Dust/Water Ingress
• Operating Temp -40 Deg F To +145 Deg F
• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• SAE J575 Compliant - Shock/Vibration
• Limited Lifetime Warranty
• Off Road Use Only
• 50,000+ Hr LED Lifespan
• Instant On/Off - No Warm Up
• RoHS Compliant
• Over / Under Voltage Protection
• Extruded Aluminum Housing
• Durable Polycarbonate Lens
• Integrated Thermal Management
• Pressure Equalizing Vent

Attributes:

• GTIN: 00849774032554
• Brand Name: RIGID Industries
• A = LUX at 10 Meters: 1914
• Add-On: 131624, 131664, 131724, 131784, 1063, 1067, 1031, 30130, 30140, 30150
• Amp Draw: 11.4
• ASIN: No
• B = Beam Distance with 1 LUX: 438
• C = Beam Distance with .25 LUX: 875
• Field Horizontal (Measured in Degrees): 32.1
• Field Vertical (Measured in Degrees): 17.1
• Number of LEDs: 30
• Peak Beam Intensity (cd): 191382
• Product Family: RDS SR-Series
• Product Fits What: Universal Fit
• Product Weight: 7.15
• Raw Lumens: 23760
• Watts: 160
• What's In The Package: Light, mounting hardware, harness

Extended Information:

• Country of Origin: Mexico
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.5 x 33.25 x 8.5 inches
• Weight: 10 lb
