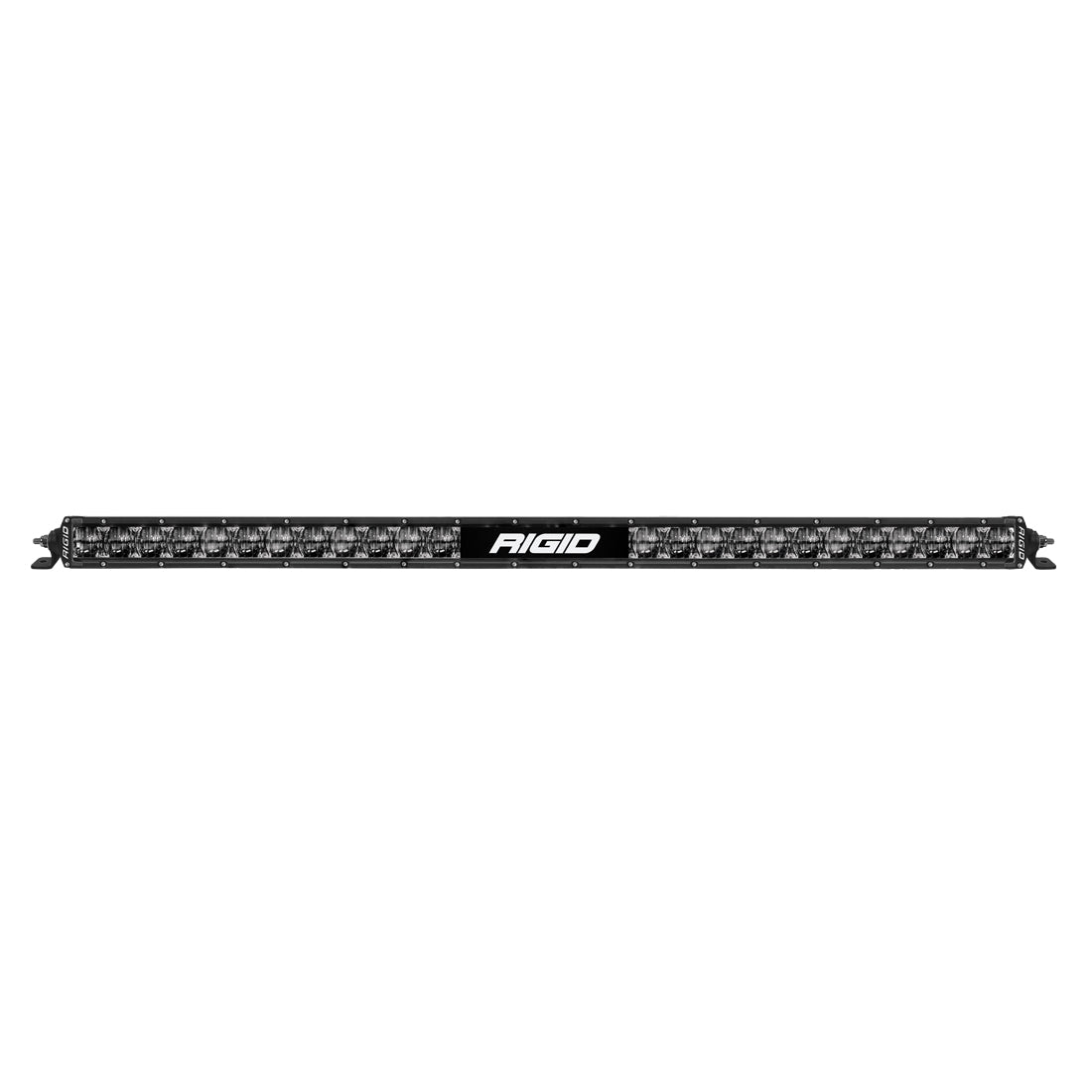

RIGID Industries SR-Series 30 in Dual Function SAE Auxilary High Beam Driving Lights with Amber Backlight 930414

Off-road auxiliary lighting is one thing, but everyone knows that it's important to have lighting that is also safe and legal for on-road use. RIGID's SAE Compliant Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented Clarilux(TM) optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. As an added function, the SR-Series SAE compliant lights offer Amber backlighting. This feature can be ran independently, or in tandem with the forward projecting LEDs. The low profile design includes a High-Grade Aluminum Alloy Housing with a custom designed oversized heat sink to keep the LEDs running cooler, brighter and longer. Combine this with the strength of a polycarbonate lens; the RIGID SAE Compliant Lights represent the ultimate solution for your street-legal lighting in North America.

• SAE J581 Compliant Street Legal Auxiliary High Beam LED Light
• IP68 Rated - Dust/Water Ingress
• Pressure Equalizing Vent
• Patented Optics
• Durable UV Polyester Powder Coat
• 50,000 Hour Lifespan
• Operating Temp -40 Deg F To +145 Deg F
• RoHS Compliant
• Limited Lifetime Warranty
• Legal For On Road and Off Road Use
• Toggleable Amber Backlight
• Multi-Function With RIGID Branding Plate
• Integrated Thermal Management System
• 9-36 VDC Operation
• RFI/EMI Protection
• Impact Resistant Polycarbonate Lens
• High Grade Alloy Housing And Heatsink
• Over/Under Voltage Protection

Attributes:

• GTIN: 00849774033810
• Brand Name: RIGID Industries
• # of LED's: 48
• A = LUX at 10 Meters: 745.5
• Amp Draw: 12.9
• B = Beam Distance with 1 LUX: 273
• C = Beam Distance with .25 LUX: 546.1
• Field Horizontal (Measured in Degrees): 53.6
• Field Vertical (Measured in Degrees): 9.1
• Lighting Family: SR-Series
• Peak Beam Intensity (cd): 74555
• Product Family: Fog Lights
• Product Fits What: Universal
• Product Weight: 7.4
• Raw Lumens: 14148
• Watts: 180
• What's In The Package: SR-Series 30 Inch Dual Function SAE Auxiliary High Beam Driving Lights with Amber Backlight, two black powder coated L-shape brackets, mounting Hardware, wiring harness

Extended Information:

• Country of Origin: Mexico
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 33.625 x 6 inches
• Weight: 12 lb
