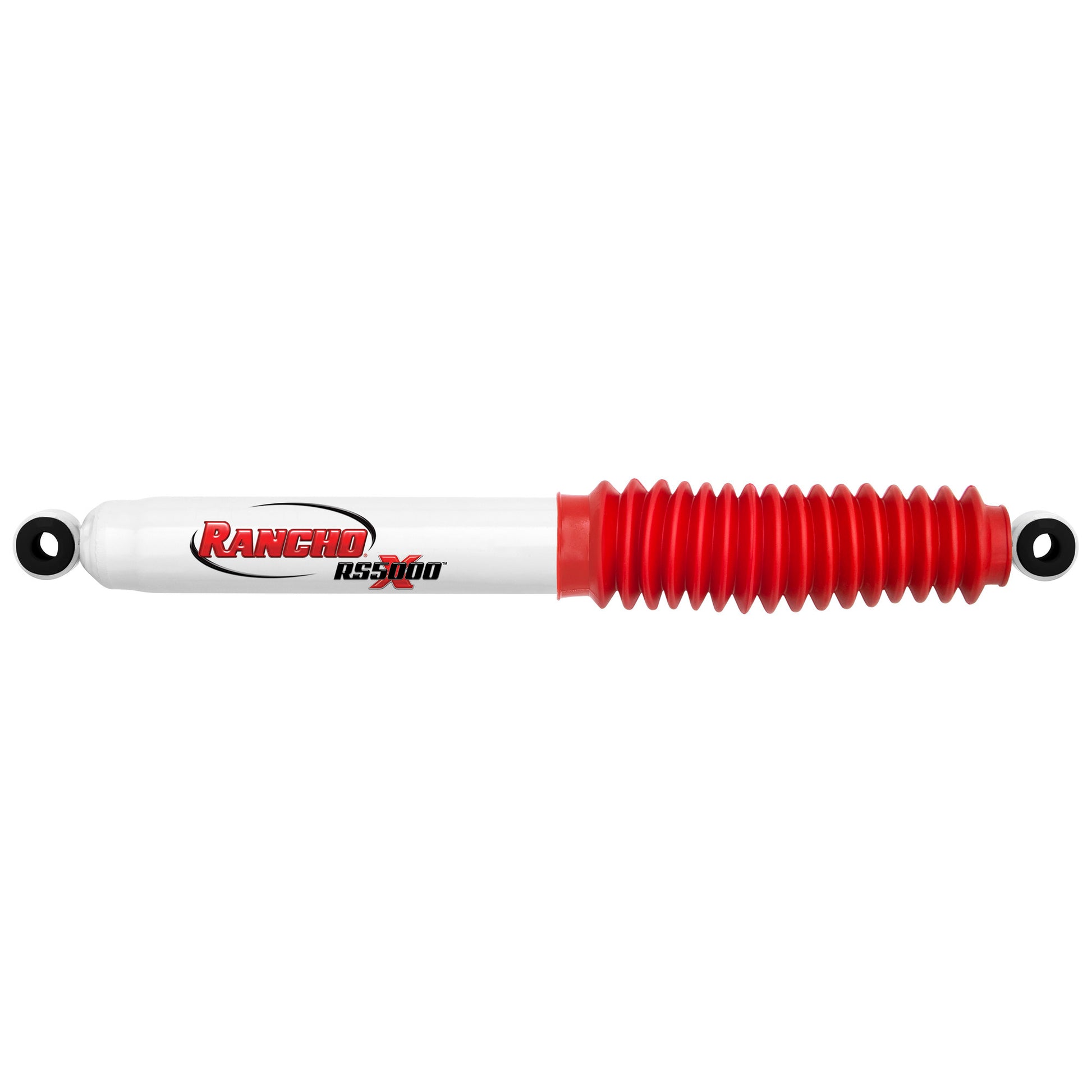

Rancho RS55005 RS5000X Shock Absorber

Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

• IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
• MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
• STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
• HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
• SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
• REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
• MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
• BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
• BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Attributes:

• GTIN: 00039703010405
• Brand Name: Rancho
• Compressed Length: 17.24
• Extended Length: 29.01
• Travel Length: 11.77
• Body Diameter: 2.251
• Lower Mount Type: Loop Bushing Mount - 11/16" Bushing ID X 1.9/16" Bushing OAL
• 9791: L2
• Upper Mount Type: Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL
• 9789: LS39
• 110: Yes
• Compressed Bumper Stop: No
• Extended Bumper Stop: Yes
• 51: Yes
• Parts Pack(s): None
• Internal Construction Type: Dual Tube
• Extended Hydraulic Lockout: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 3.3125 x 3.3125 x 24.2500 inches
• Weight: 6.1000 lb
