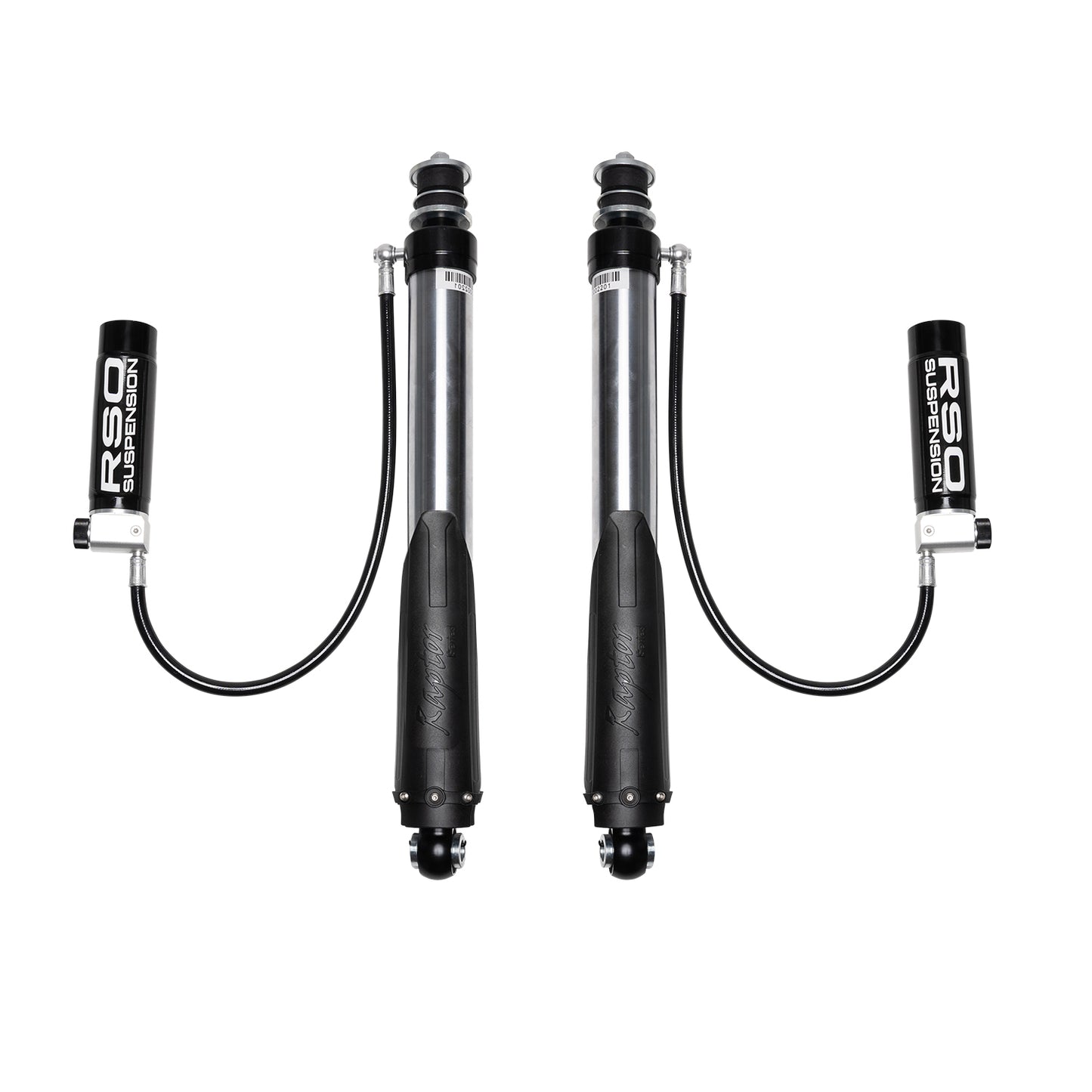

Raptor Series RSO Rear 2.5 Adj Compression and Rebound Remote Reservoir Shocks 0-3in Lift 150310-450400

Raptor Series RSO Rear 2.5 Adj Compression and Rebound Remote Reservoir Shocks 0-3in Lift 150310-450400

RAPTOR SERIES:

Part # RAPTOR-150310-450400
UPC # 00813443029138

Regular price $1,299.99 USD
Regular price $1,715.00 USD Sale price $1,299.99 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

RSO Suspension Adjustable Compression and Rebound (ACR) Shocks with remote reservoir provide improved suspension damping while increasing on and offroad driving comfort. They feature hand adjustable compression levels as well as adjustable rebound for the off-roader that is serious about their suspension tuning. These 2.5in smooth bore machined alloy bodies give maximum corrosion resistance. The 3/4in steel shafts and heat-treated steel spherical bearings offer strength and dependability and are protected by large high impact resistant ABS rock guards. Its external reservoir allows for increased oil and nitrogen capacity giving greater heat dissipation, increasing performance, and eliminating shock fade. Using large PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hoses keeps the reservoir close to the frame away from any moving components. Experience for yourself the incredible performance and precise control that RSO Suspension’s new compression and rebound adjustable shocks deliver.
  • ACR shocks provide hand adjustable compression levels (soft or firm) as well as rebound adjustability for ultimate suspension tuning
  • Increased on and offroad comfort while increasing suspension travel and handling
  • 2.5in steel body with Polished 3/4in steel shafts protected by the included high impact resistant ABS rock guards with heat-treated steel spherical bearings offer strength and durability
  • External remote reservoir with PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hose allows for increased oil and nitrogen capacity reducing heat and shock fade. Race-developed high flow piston design
  • Direct replacement for stock and aftermarket lift kits. Vehicle specific fitment to ensure that the part is right for your vehicle including vehicle specific reservoir mounts. Backed by a Limited 1 Year Manufacturer warranty
  • GTIN: 00813443029138
  • Brand Name: Raptor Series
  • Position: Rear
  • Reservoir Mount Style: Remote
  • Lift Height: 0-3
  • Adjustable: Yes
  • Adjustable Damping: Yes
  • Damping Adjustment Type: Manual
  • Finish: Powder Coated
  • Body Diameter: 2.5
  • Extended Length: 24.25
  • Grade Type: Performance
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Mounting Hardware Included: Yes
  • Rod Diameter: 0.86
  • Shock Absorber Body End Measuring Point: 11
  • Shock Absorber Rod End Measuring Point: 7.125
  • Type: Telescopic
  • Upper Mount Type: Stem Top
  • Bladder(s) Included: No
  • Body Color: Stainless Steel
  • Boot Included: No
  • Coil Spring Insulator(s) Included: No
  • Color: Silver
  • Dust Shield Included: Yes
  • Strut Mount Insulator(s) Included: No
  • Dust Shield Material: Plastic
  • Hydraulic Lockout: No
  • Includes Bump Stop: No
  • Gas Charged: No
  • ProductImage3 URL Link: https://www.raptorseries.com/images/dealerassets/rso/150310-450400_P3.jpg
  • Product Video URL Link: https://youtu.be/dRo5G43Ac0k
  • ProductImage1 URL Link: https://www.raptorseries.com/images/dealerassets/rso/150310-450400_P1.jpg
  • ProductImage2 URL Link: https://www.raptorseries.com/images/dealerassets/rso/150310-450400_P2.jpg
  • ProductImage4 URL Link: https://www.raptorseries.com/images/dealerassets/rso/150310-450400_P4.jpg
  • Country of Origin: China
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: PR
  • Dimension: 31 x 21 x 6 inches
  • Weight: 30 lb
