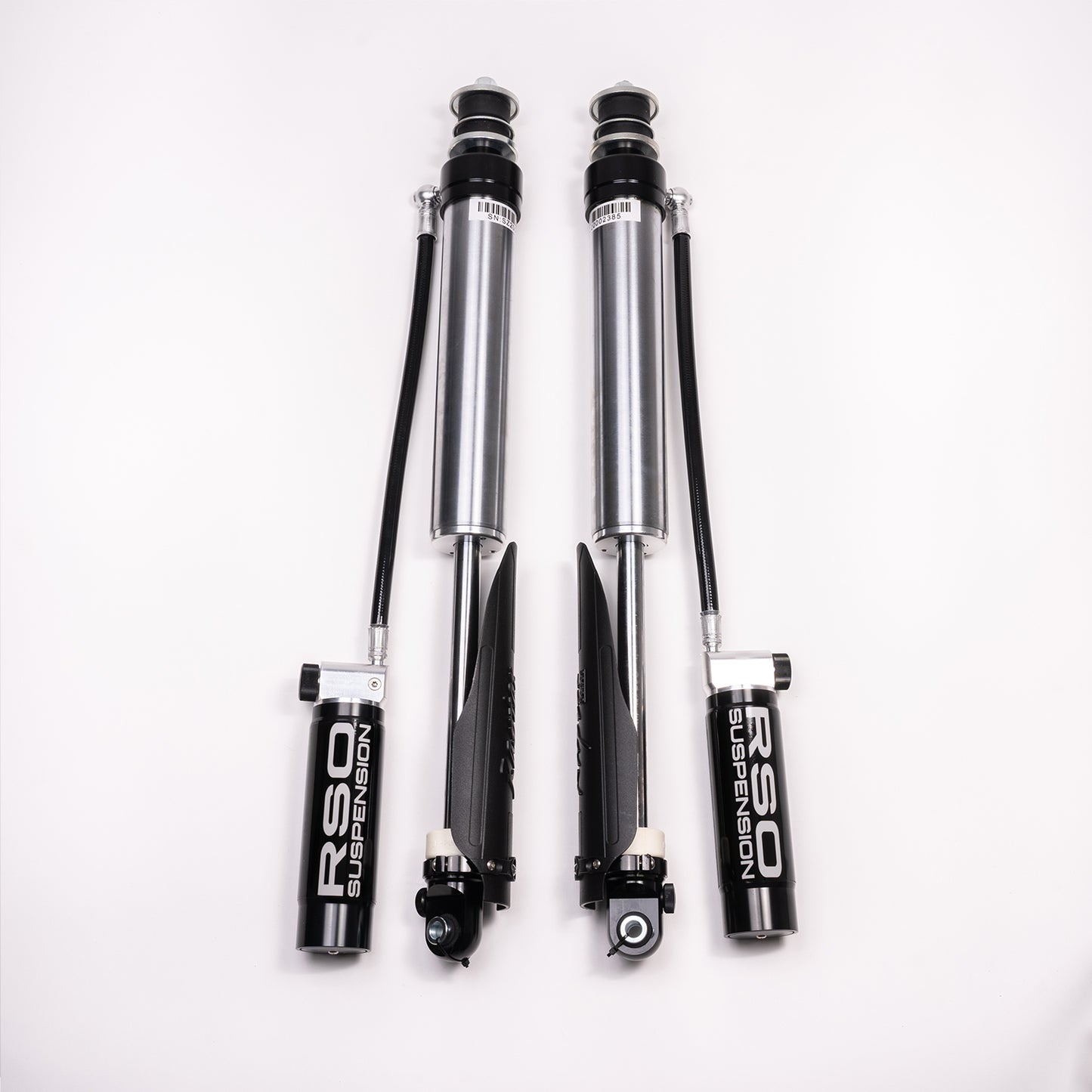

Raptor Series RSO Rear 2.5 Adj Compression and Rebound Remote Reservoir Shocks 1-3in Lift 170118-452501

Name: Raptor Series RSO Rear 2.5 Adj Compression and Rebound Remote Reservoir Shocks 1-3in Lift 170118-452501
Brand: RAPTOR SERIES
SKU: RAPTOR-170118-452501
Price: 1299.99 USD
Availability: InStock

RAPTOR SERIES

Part # RAPTOR-170118-452501
UPC # 00813443029114

$1,299.99 USD

~~$1,438.99 USD~~ $1,299.99 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

RSO Suspension Adjustable Compression and Rebound (ACR) Shocks with remote reservoir provide improved suspension damping while increasing on and offroad driving comfort. They feature hand adjustable compression levels as well as adjustable rebound for the off-roader that is serious about their suspension tuning. These 2.5in smooth bore machined alloy bodies give maximum corrosion resistance. The 3/4in steel shafts and heat-treated steel spherical bearings offer strength and dependability and are protected by large high impact resistant ABS rock guards. Its external reservoir allows for increased oil and nitrogen capacity giving greater heat dissipation, increasing performance, and eliminating shock fade. Using large PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hoses keeps the reservoir close to the frame away from any moving components. Experience for yourself the incredible performance and precise control that RSO Suspension’s new compression and rebound adjustable shocks deliver.

ACR shocks provide hand adjustable compression levels (soft or firm) as well as rebound adjustability for ultimate suspension tuning
Increased on and offroad comfort while increasing suspension travel and handling
2.5in steel body with Polished 3/4in steel shafts protected by the included high impact resistant ABS rock guards and heat-treated steel spherical bearings offer strength and durability
External remote reservoir with PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hose allows for increased oil and nitrogen capacity reducing heat and shock fade. Race-developed high flow piston design
Direct replacement for stock and aftermarket lift kits. Vehicle specific fitment to ensure that the part is right for your vehicle including vehicle specific reservoir mounts. Backed by a Limited 1 Year Manufacturer warranty

Attributes

GTIN: 00813443029114
Brand Name: Raptor Series
Position: Rear
Reservoir Mount Style: Remote
Lift Height: 1-3
Adjustable: Yes
Adjustable Damping: Yes
Damping Adjustment Type: Manual
Finish: Powder Coated
Body Diameter: 2.5
Extended Length: 28.75
Grade Type: Performance
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
Rod Diameter: 0.86
Shock Absorber Body End Measuring Point: 15
Shock Absorber Rod End Measuring Point: 9.5
Type: Telescopic
Upper Mount Type: Eyelet
Bladder(s) Included: No
Body Color: Stainless Steel
Boot Included: No
Coil Spring Insulator(s) Included: No
Color: Silver
Dust Shield Included: Yes
Dust Shield Material: Plastic
Hydraulic Lockout: No
Strut Mount Insulator(s) Included: No
Gas Charged: No
