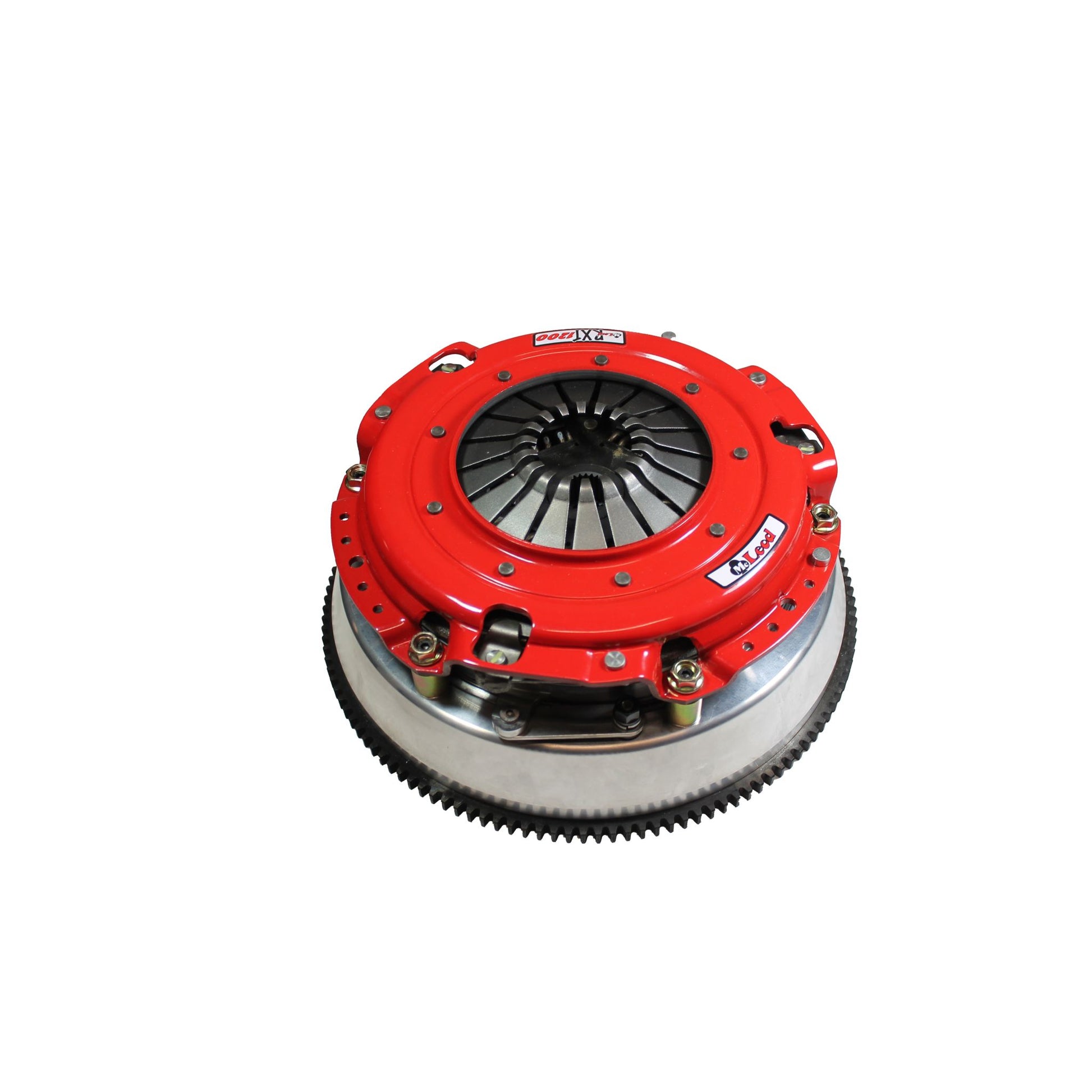

McLeod RST:Steel Flywheel:Chevy: LS-X 6 Bolt Crank:0Bal:168T:1-1/8x26 6405507

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

• McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you!

Attributes:

• GTIN: 00887753012265
• Brand Name: McLeod
• Make: Chevrolet
• Application: 1997-2013 LS1/LS2/LS3/LS6/LS7 6 BOLT Crank
• Disc Diameter: 9.687In.
• Spline: 1-1/8 x 26
• Disc Material: Organic/Organic
• Pressure Plate Style: Diaphragm
• Flywheel Included: Yes
• Flywheel Material: Steel
• Ring Gear: 168T
• Hardware Included: Yes
• Horsepower Rating: 800
• Number of Discs: Double
• Pilot Bushing Included: No
• Pilot Bushing Material: N/A
• Throwout Bearing Included: No
• Alignment Tool Included: Yes
• NOTE:: 2004-07 Cadillac CTS-V must purchase slave cylinder spacer 1377-950 (sold separately)

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 48 lb
