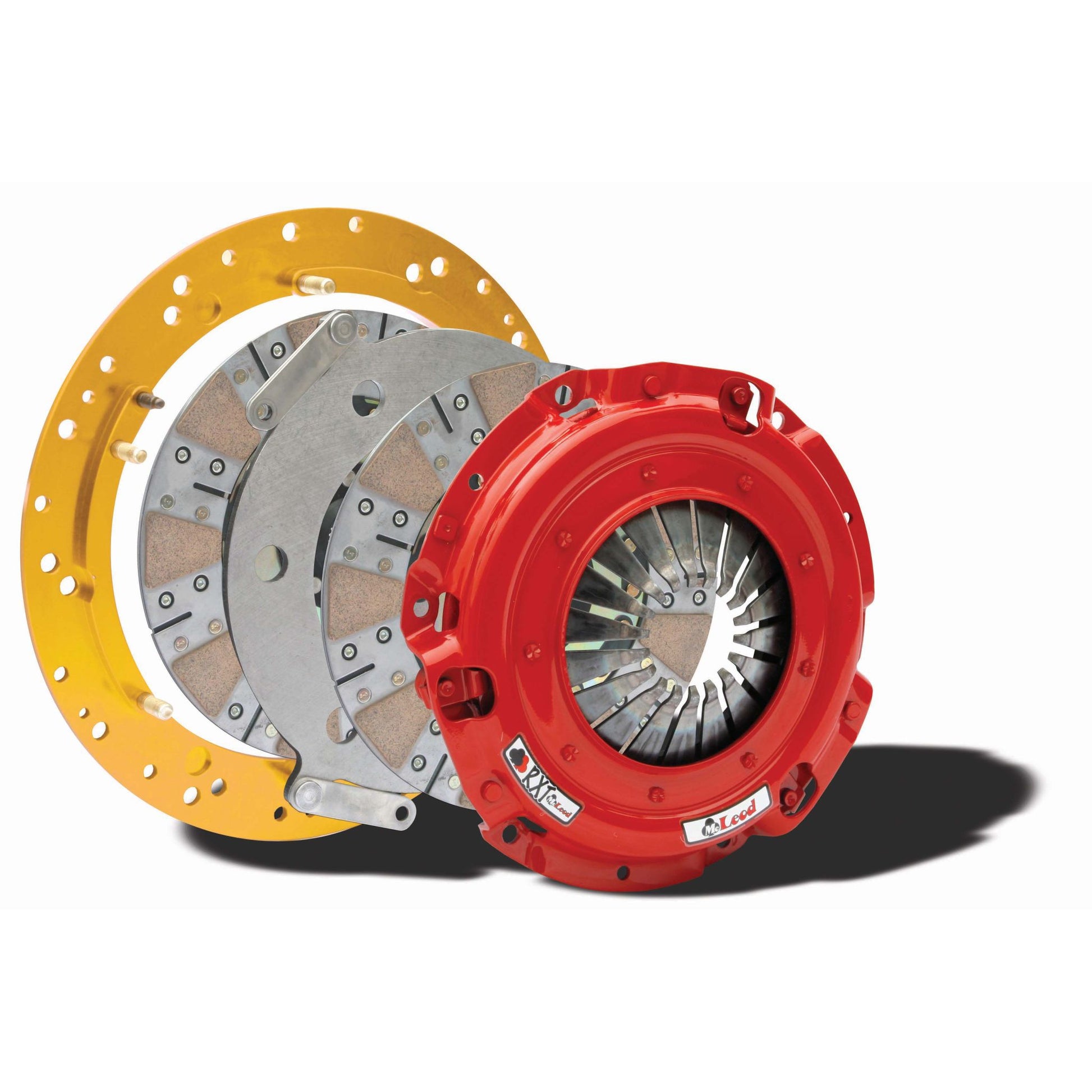

McLeod RXT:9.687" Dia. Disc:For use with Large Diameter Flywheel:1-1/8x26 6921-07

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars

• McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power!

Attributes:

• GTIN: 00887753011411
• Brand Name: McLeod
• Alignment Tool Included: Yes
• Make: GM, Ford, Mopar
• Throwout Bearing Included: No
• Spline: 1 1/8In. x 26
• Pressure Plate Style: Diaphragm
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• OE Flywheel Size: Large
• Number of Discs: Double
• Hub Style: Solid
• Clutch Patterns 1: 11/12In. Borg & Beck
• Clutch Patterns 2: 11In.,11.5In., 12In. Ford Long with 5/16In. Bolts.
• Horsepower Rating: 1000
• Hardware Included: No
• Flywheel Included: No
• Disc Style: Segmented Face/Multi Pad
• Disc Material: Ceramic
• Disc Diameter: 9-11/16In.
• Clutch Usage: Street/Track
• Throwout Bearing Style: Standard

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 23 lb
