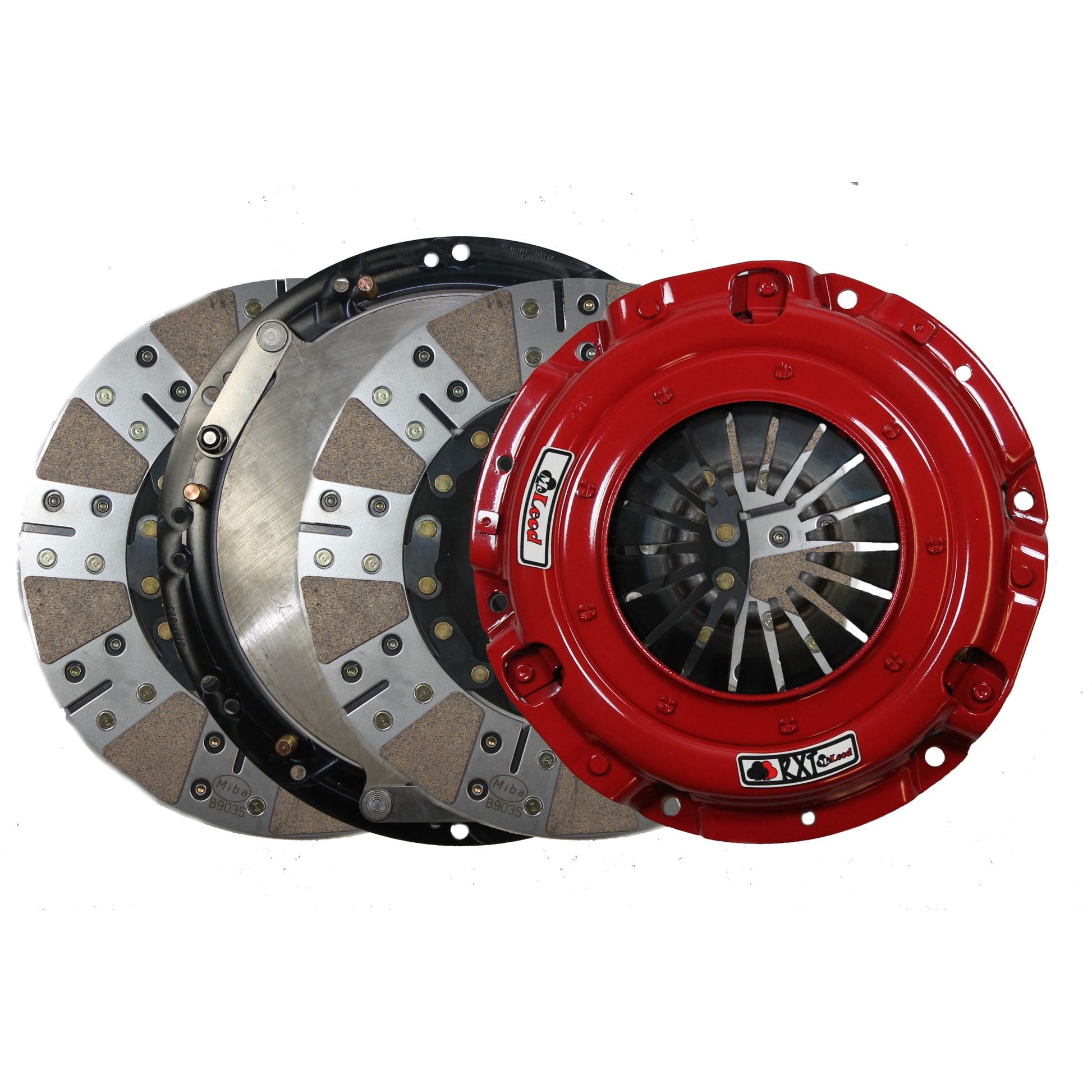

McLeod RXT:Steel Flywheel:Ford:1996-04 4.6L:0Bal:8blt crnk:1-1/8x26:164T 6432807M

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

• McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you!

Attributes:

• GTIN: 00887753314628
• Brand Name: McLeod
• Make: Ford
• Engine: 1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank
• Transmission: Tremec T-56 Magnum
• Spline: 1 1/8In. x 26
• Linkage: Cable
• Throwout Bearing Included: No
• Pressure Plate Style: Diaphragm
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Double
• Horsepower Rating: 1000
• Alignment Tool Included: Yes
• Clutch Usage: Street
• Hardware Included: Yes
• Flywheel Material: Steel
• Flywheel Included: Yes
• Disc Style: Full Face/Multi Pad
• Disc Material: Ceramic
• Disc Diameter: 9-11/16In.
• Throwout Bearing Style: Standard
• NOTE:: Intended for 1996-2004 Mustang with 8 bolt crank, Cable Linkage and a T-56 Magnum Transmission. Call McLeod Tech for more info at 714-630-2764

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 50 lb
