Screw-in Adapter -AN Male to Barb

Screw-in Adapter -AN Male to Barb

BOOST Products USA

Part #
EA-D6B10-B
UPC #
4250815851069

Black Friday Sale On All November Long! No Code Needed!

Regular price $9.43 USD
Regular price $9.43 USD Sale price $9.43 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

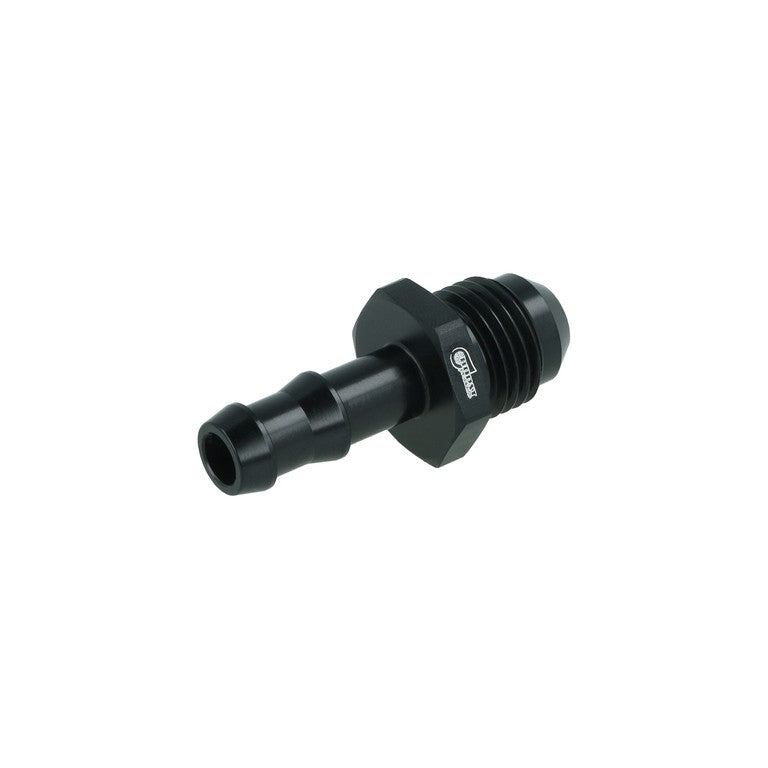

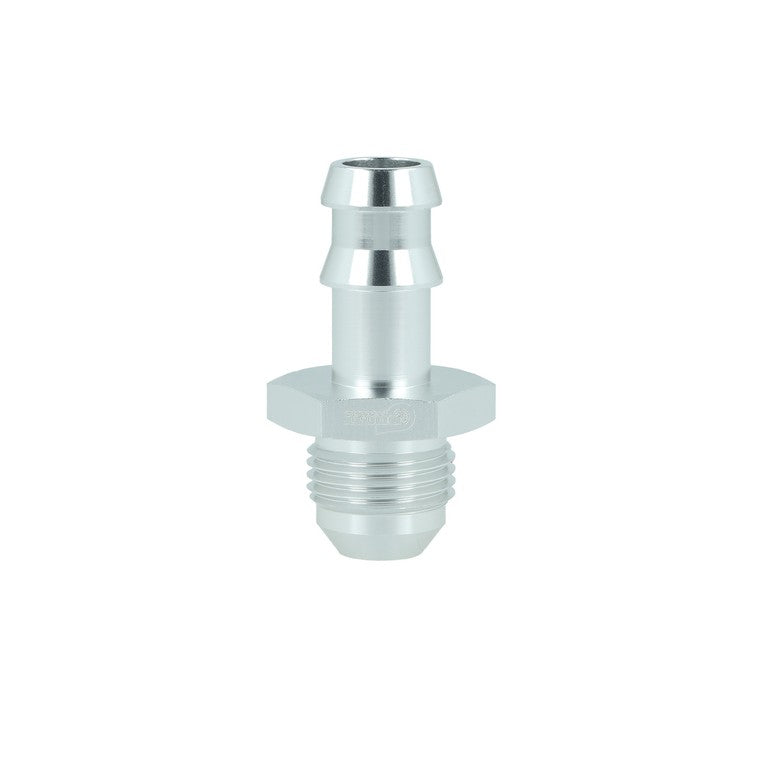

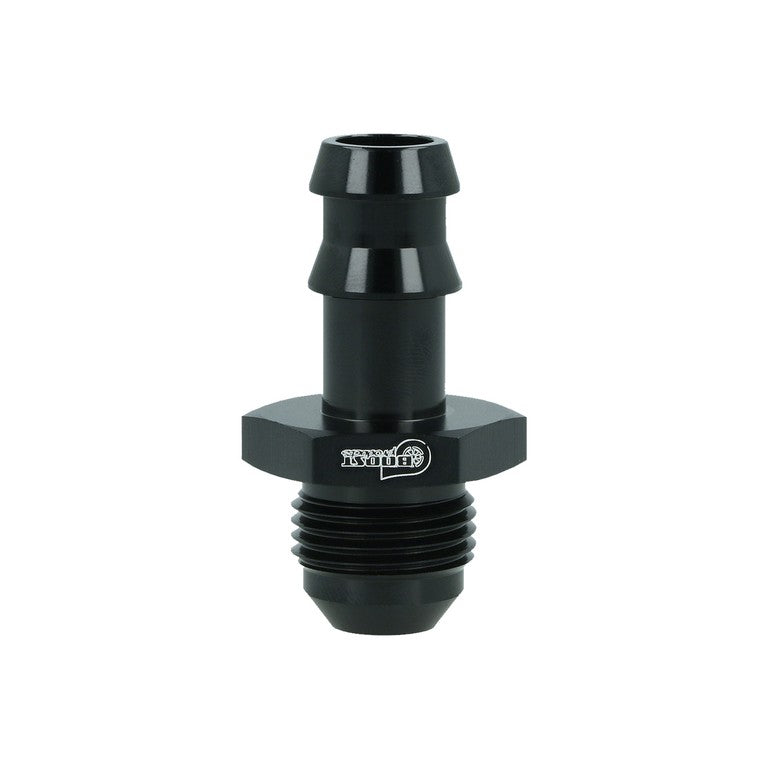

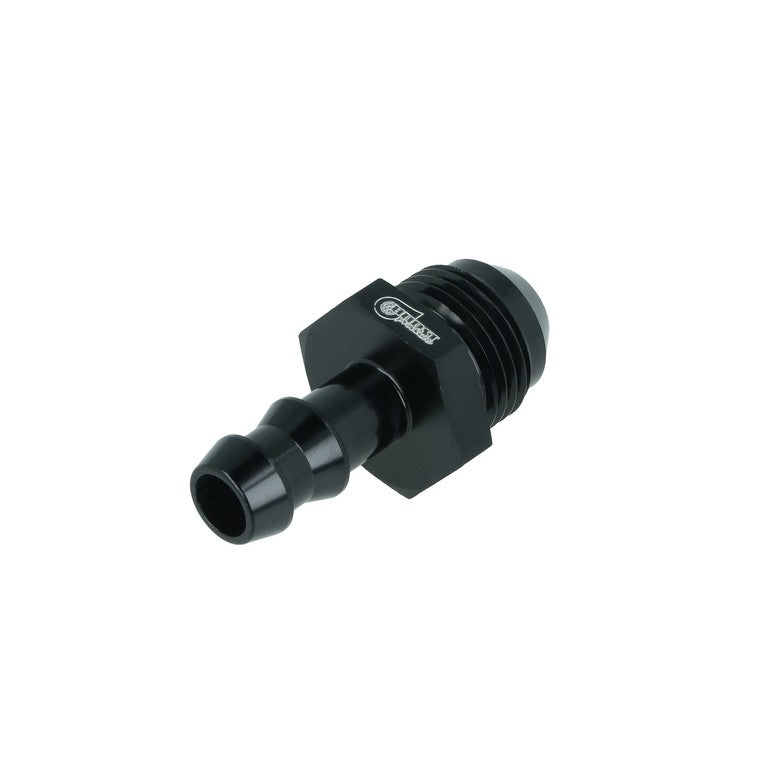

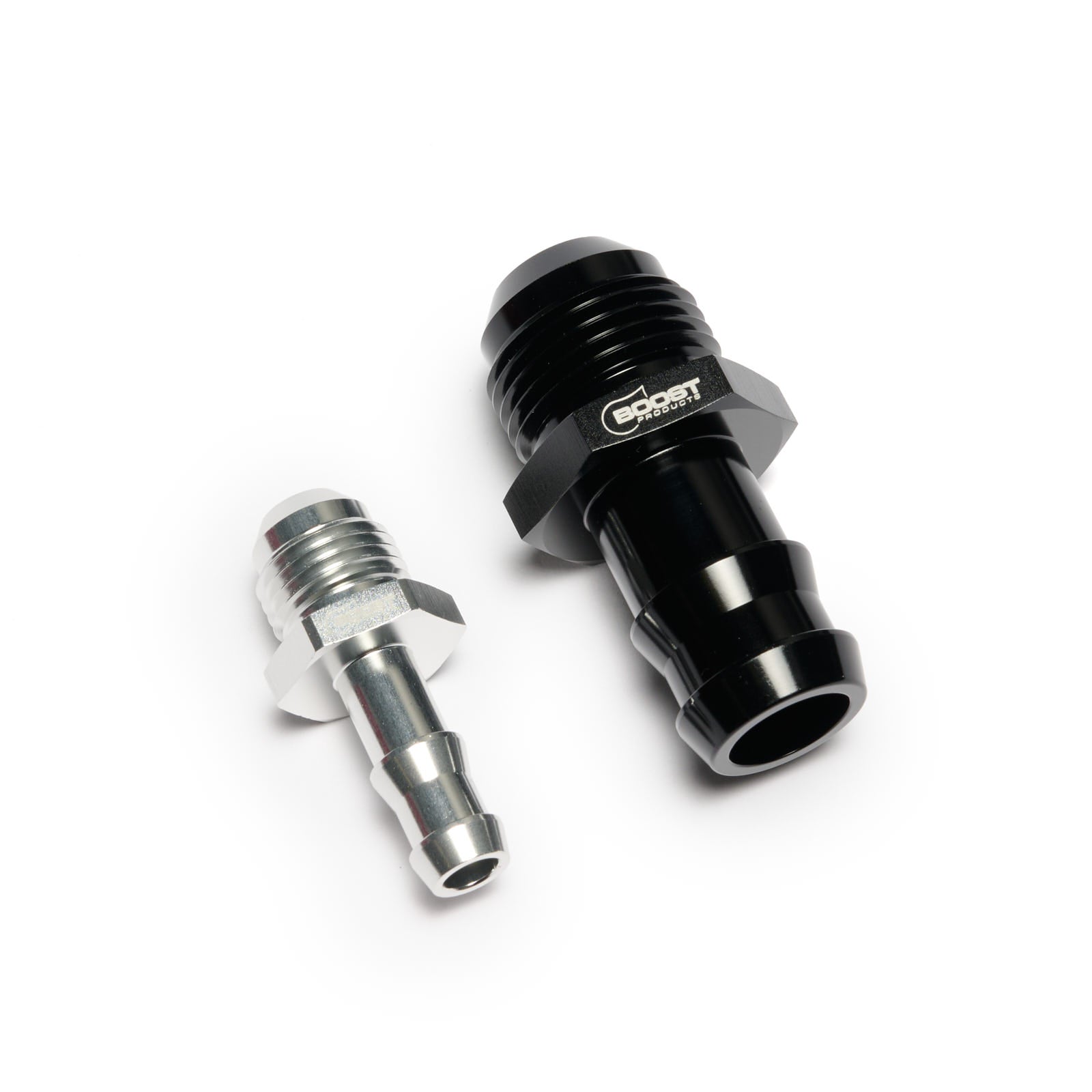

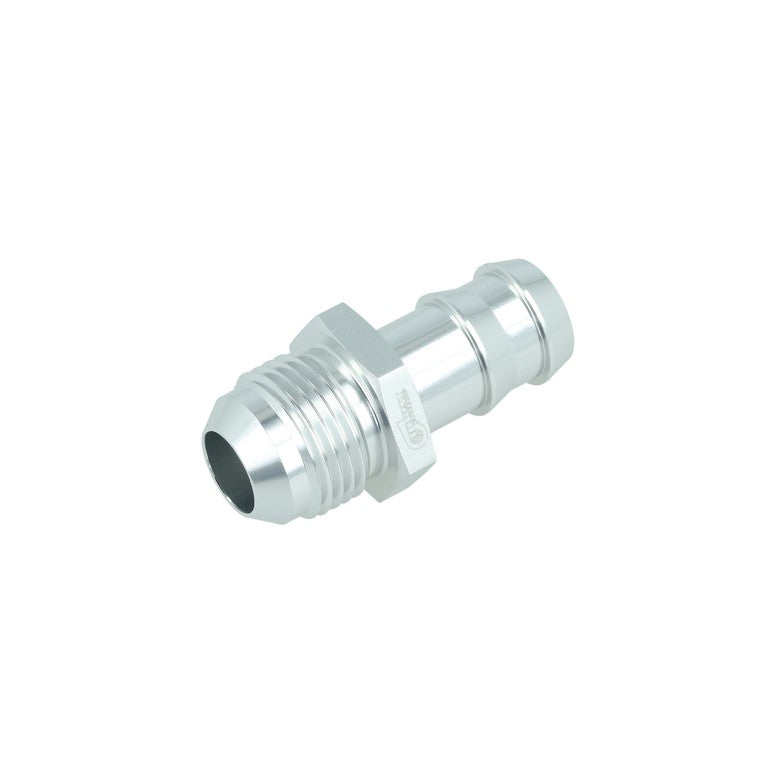

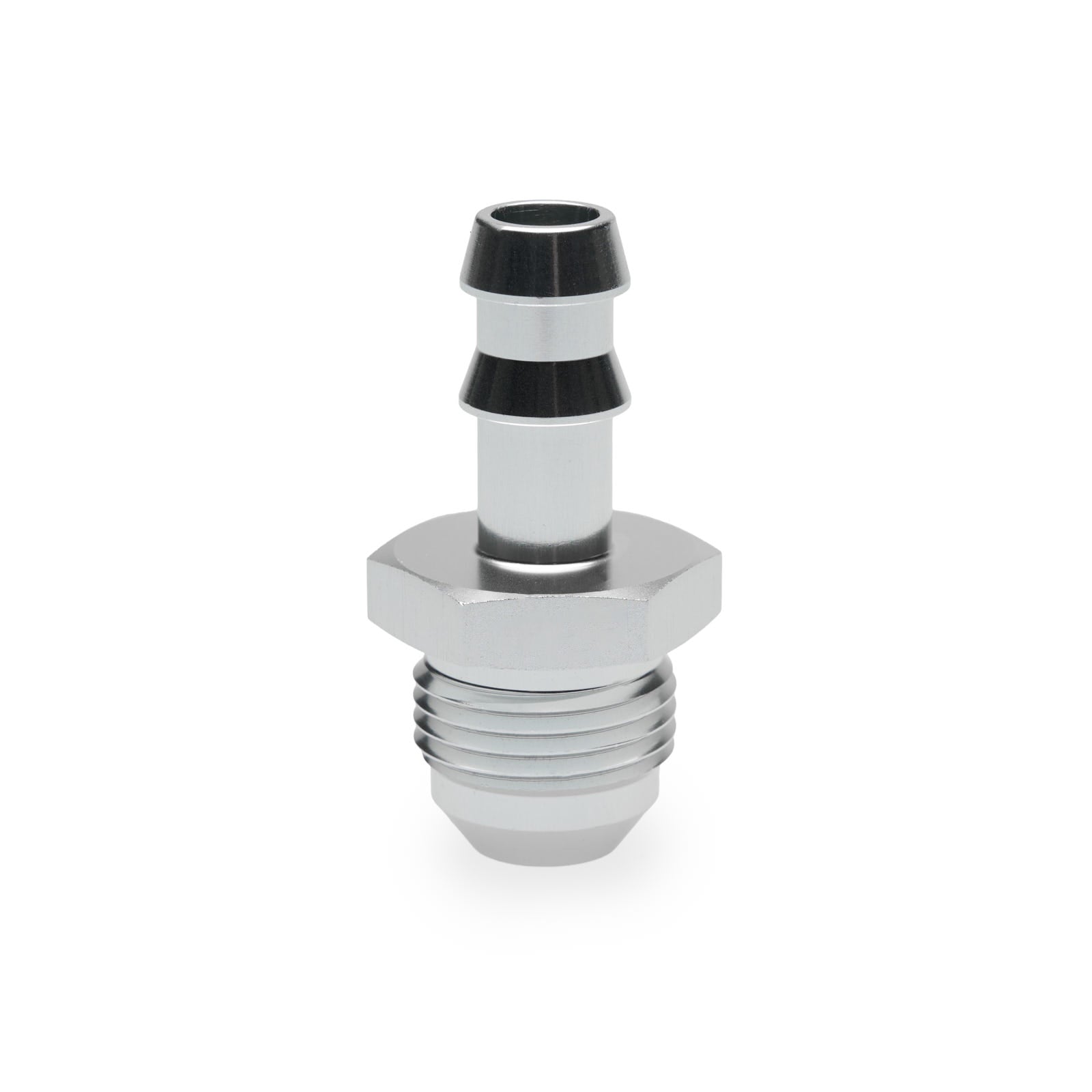

Screw-in Adapter -AN Male to Barb

The Screw-in Adapter -AN Male to Barb is CNC machined from 6061-T6 aluminum and conforms to AN and JIC specifications. Like all BOOST Products fittings and adapters it is suitable for oil, water and fuel lines and resistant to E85 and methanol.

Key Features

  • CNC machined from 6061-T6 aluminum
  • Conforms to AN and JIC specifications
  • Suitable for fuel, E85, methanol, oil, water and pneumatic lines
  • Finish: satin black or satin silver

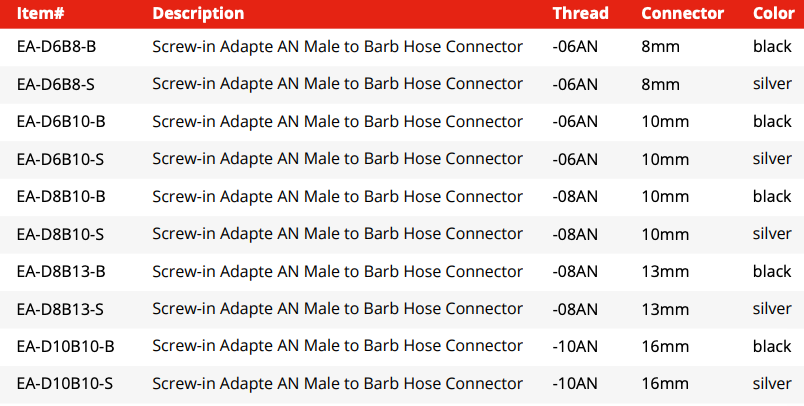

Available Sizes

Thread Model Part No. satin black Part No. satin silver

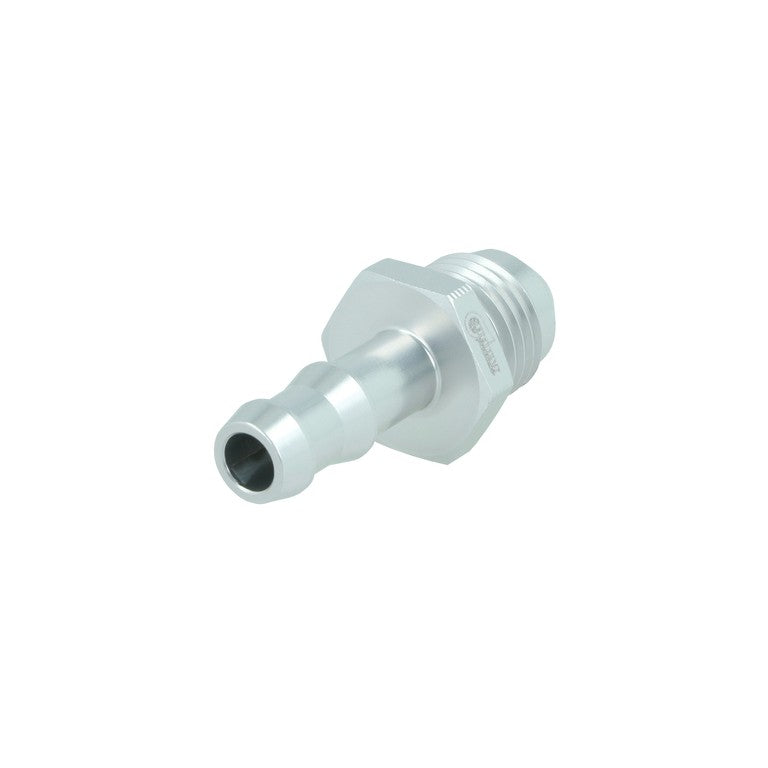

-06 AN / Dash 6 male Barb hose fitting 8mm (5/16") EA-D6B8-B EA-D6B8-S

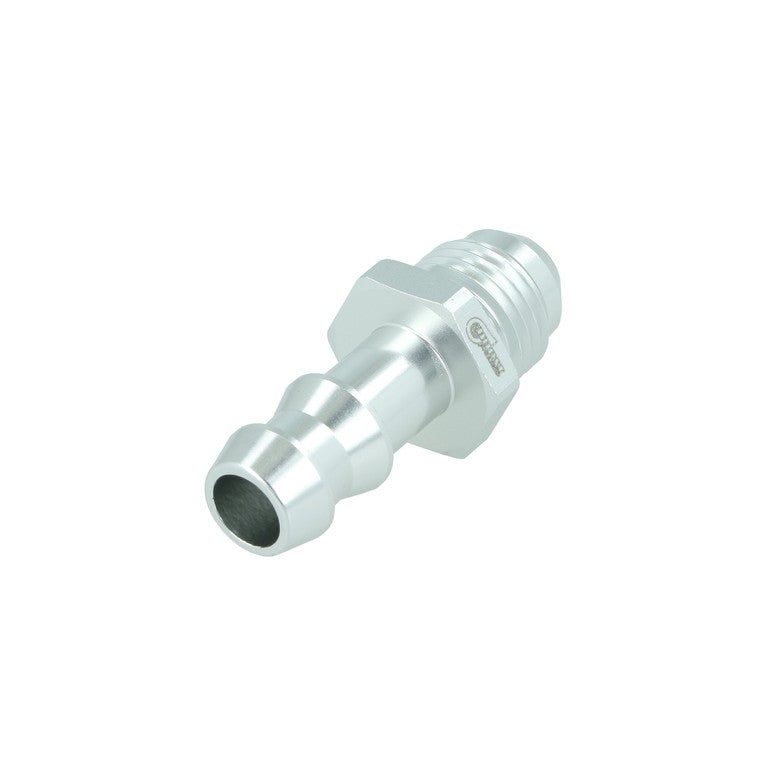

-06 AN / Dash 6 male Barb hose fitting 10mm (3/8") EA-D6B10-B EA-D6B10-S
-08 AN / Dash 8 male Barb hose fitting 10mm (3/8") EA-D8B10-B EA-D8B10-S
-08 AN / Dash 8 male Barb hose fitting 13mm (1/2") EA-D8B13-B EA-D8B13-S

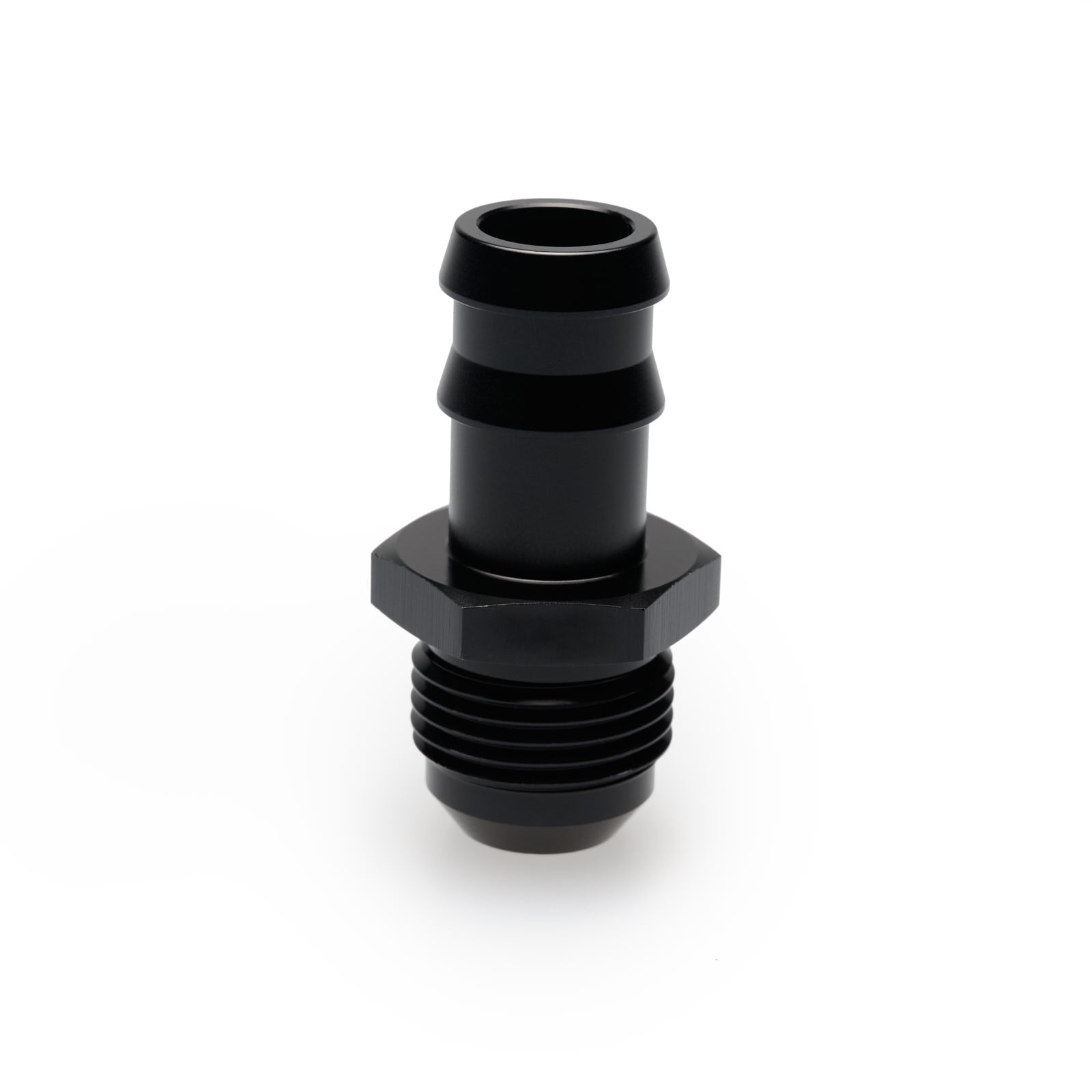

-10 AN / Dash 10 male Barb hose fitting 16mm (5/8") EA-D10B10-B EA-D10B10-S

Frequently Asked Questions

Which AN size do I need for turbo oil lines?

For turbocharger plumbing, -04 AN is the usual choice for oil feed lines and -10 AN for oil return lines. For fuel, water and other lines, match the fitting to the existing ports and to the component manufacturer's recommendation.

Is it safe for E85 and methanol?

Yes. BOOST Products fittings and adapters are resistant to E85 and methanol and are also suitable for fuel, oil, water and air.

How do I identify my AN size?

The dash number is the tube outer diameter in sixteenths of an inch, so -06 AN corresponds to a 3/8" tube. The thread sizes are 7/16"-20 for -04 AN, 9/16"-18 for -06 AN, 3/4"-16 for -08 AN, 7/8"-14 for -10 AN and 1 1/16"-12 for -12 AN.
