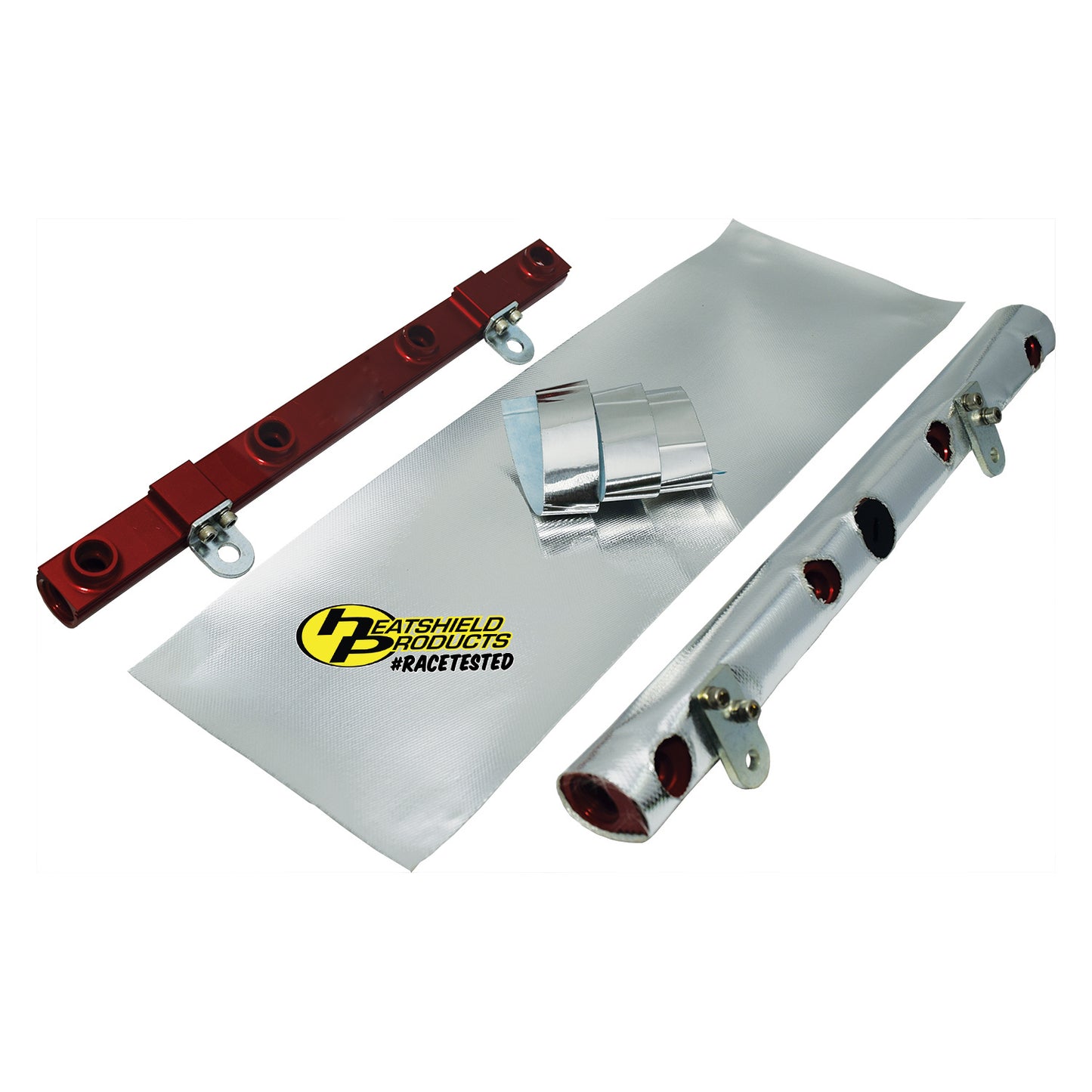

Heatshield Products Shields OEM and aftermarket rails, Prevents vapor lock, Kits include tape 700271

Fuel rail heat shields prevent the fuel rail from absorbing radiant heat into the fuel delivery system. This will improve performance and help reduce instances of pre-ignition. In addition to keeping the fuel headed to the motor cool, it will also help the fuel returning to your fuel cell to remain cool. Over a long distance race, keeping fuel temps down returning to the fuel cell can be almost as vital as keeping the fuel delivered to the motor cool. Warm fuel returning to the fuel cell will heat up the fuel in the cell, and cause it to boil off some of the chemicals that are in your fuel. This changes the chemical balance of your fuel and greatly affects your previously tuned settings. Keeping fuel cool helps to preserve the chemical balance of the fuel and keeps your vehicle operating at maximum efficiency!

• Rated for 11F radiant continuous use, 5F direct
• Helps to lower fuel temperatures
• Reflects radiant heat

Attributes:

• GTIN: 00819825014501
• Brand Name: Heatshield Products
• Color: Silver/aluminum
• Conductivity Warning: Caution this material is electrically conductive; be sure to insulate any terminals that might come in contact with this product.
• Install Tips: Tape
• Instructions Included: Yes
• Insulation Type: Radiant heat barrier, needs 1 inch of air space, should not contact heat source.
• Material: Aluminum/Fiberglass
• Operating Temperature: 1100F
• Peak Temperature: 2000F
• Product Dimensions: 6 in x 18 in (x2)
• Safety Equipment Warning: Always wear safety glasses, dust mask, gloves and long sleeves are recommended when handling this product.

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8 x 4.75 x 2.5 inches
• Weight: 0.3 lb
