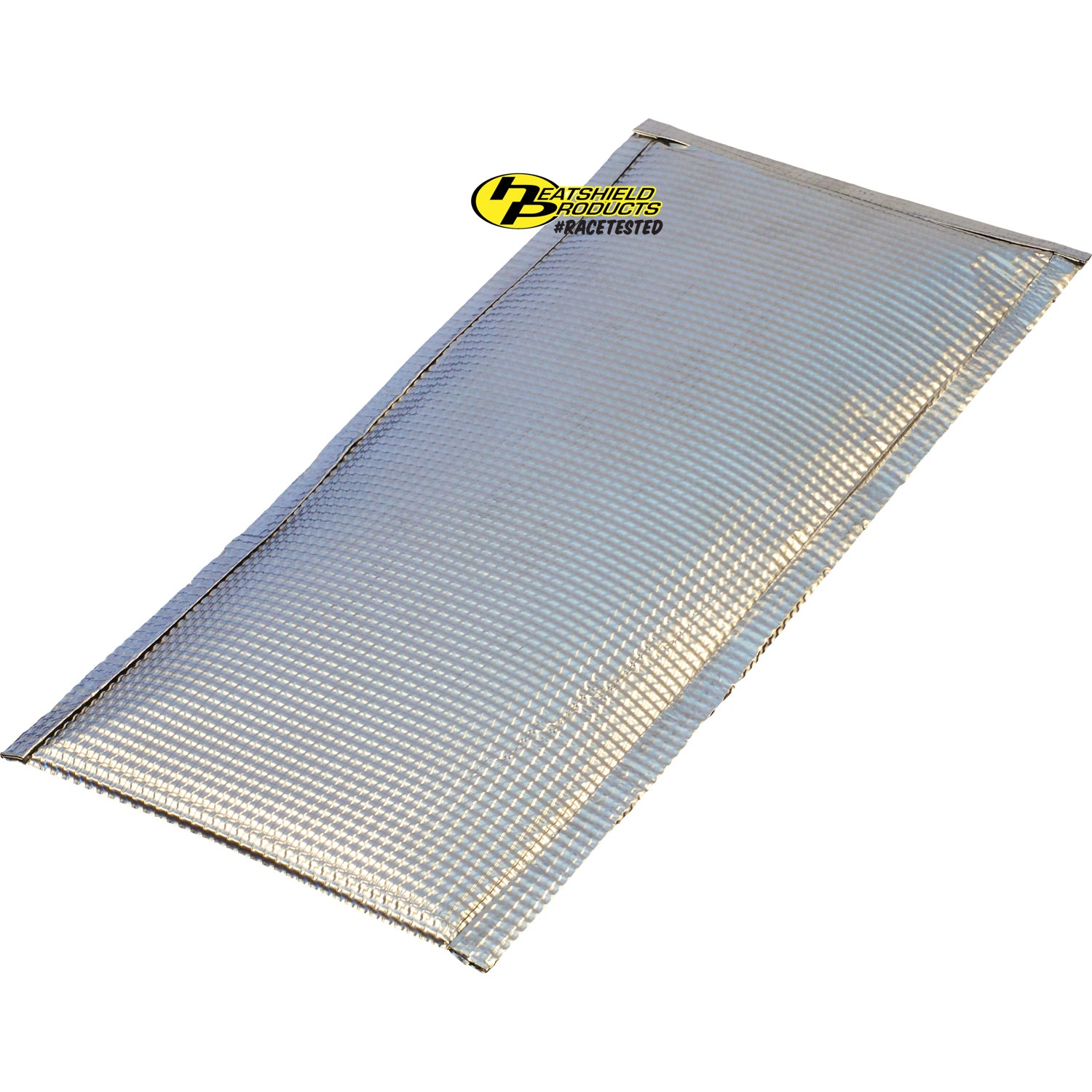

Heatshield Products Shields up to 9 percent of radiant heat, 11 Aluminum, Semi-rigid 110614

More than just another heat shield, Inferno Shields can be custom configured to handle whatever your thermal requirements are. These heat shields can be bent, folded and twisted to form a custom shape. Our heat shields come in three different grades of alloy: aluminum (9F continuous), stainless steel (18F continuous) and Inconel (22F continuous). All of these alloy heat shields have an inner ceramic pad that can be trimmed, then fold over outer alloy layer for a custom size or fit. Larger and custom heat shields available with volume purchase. All of these heat shields may be fastened with Thermal-Tie, safety wire, screws, or rivets.

• Continuous operating temperature of 9F, 18F and 22F
• Capable of reflecting over 9% of radiant heat
• Flexible, bends and will hold its shape
• Simple installation, install in minutes!
• Perfect radiant heat shield for mufflers, catalytic converters, DPF, and more

Attributes:

• GTIN: 00819825010145
• Brand Name: Heatshield Products
• Color: Aluminum/White
• Conductivity Warning: Caution this material is electrically conductive; be sure to insulate any terminals that might come in contact with this product.
• Install Tips: Rivets or Spray-on Adhesive
• Instructions Included: No
• Insulation Type: Radiant heat barrier, needs 1 inch of air space, should not contact heat source.
• Material: Proprietary Data
• Operating Temperature: 900F
• Peak Temperature: 1100F
• Product Dimensions: Aluminum 1/4 x 6 x 14 in

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 8 x 0.25 inches
• Weight: 0.35 lb
