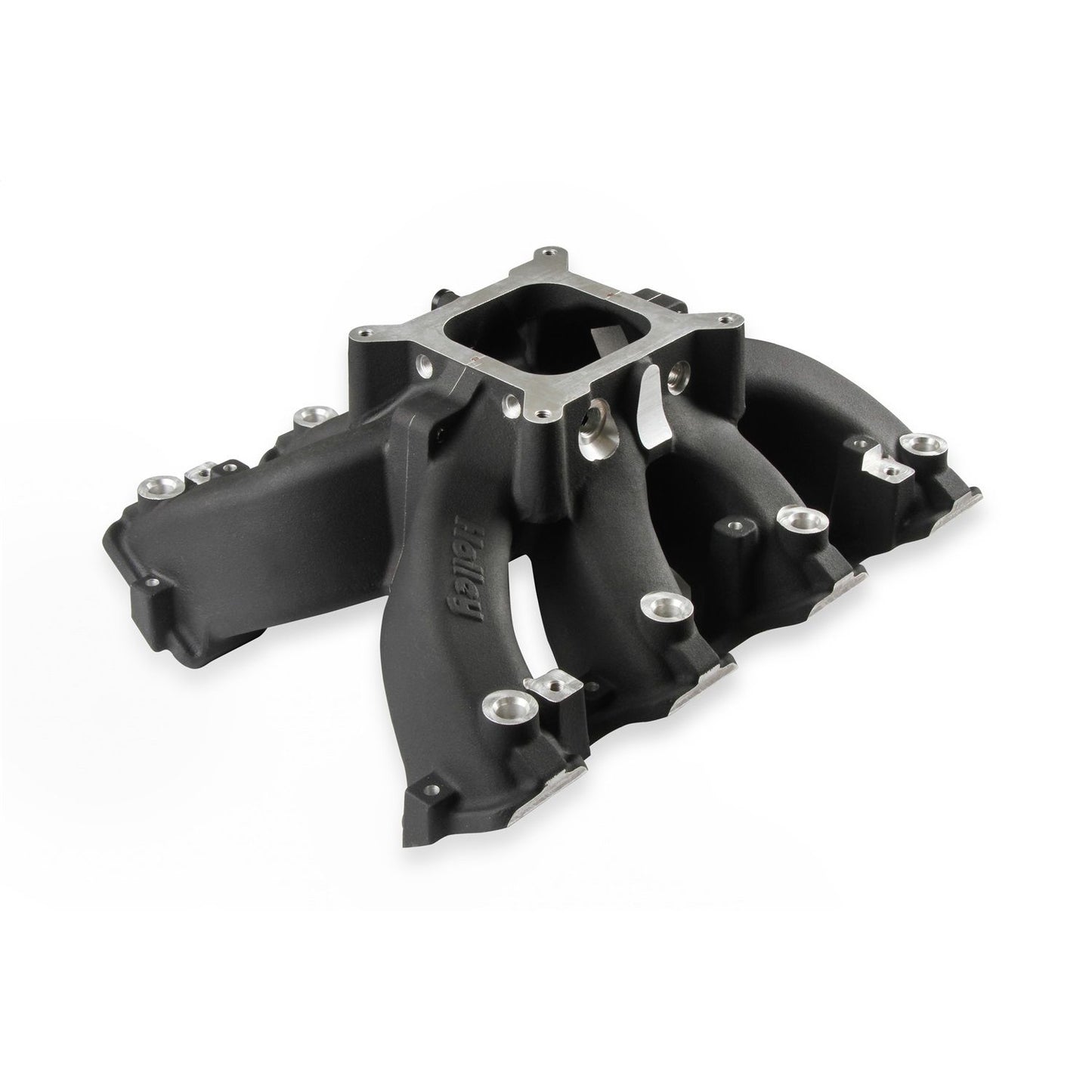

Holley Single Plane Intake Manifold Kit 300-255BK

The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.

• Single Plane With Isolated Plenum
• Square Bore Carburetor Mounting Flange
• Isolated Water Cross-Over
• Power Band 2500-7000 RPM

Attributes:

• GTIN: 00090127052334
• Brand Name: Holley
• Cylinder Head Type: LS1/LS2/LS6
• Engine Make/Size: Chevy LS1/2/6
• RPM Range: 2500-7000
• Usage: Racing
• WARNING CA Proposition 65: No

Extended Information:

• Country of Origin: China
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 23.2000 x 14.4000 x 10.0000 inches
• Weight: 21.1500 lb
