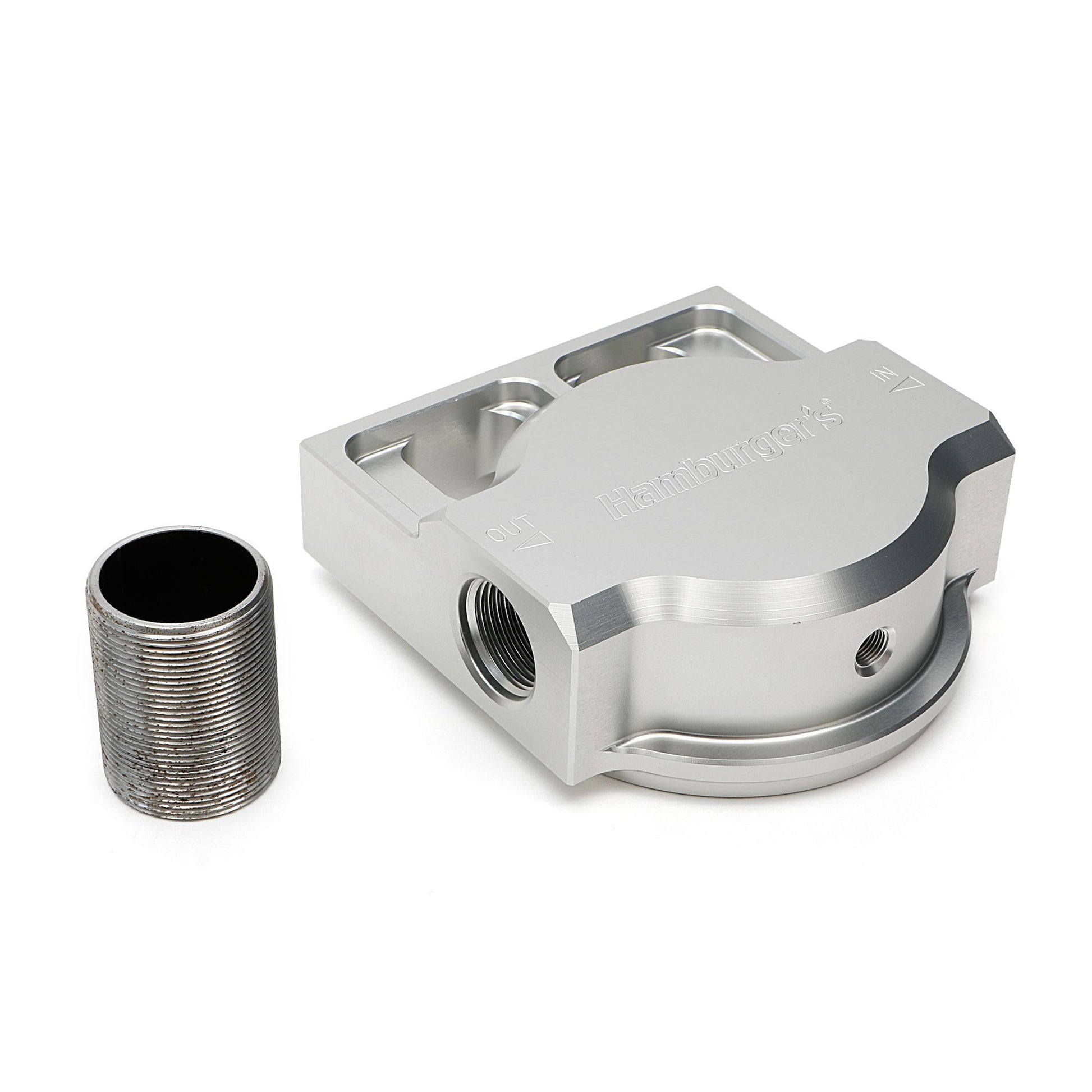

SINGLE Remote Oil Filter Base; Fits PH3786; Flows Right to Left- Billet Aluminum 3408

<p>This single, remote oil filter base is CNC machined by Hamburger's Performance Products in their Whittier, Callifornia manufacturing facility, and is so reliable, Hamburger's Performance backs it with a limited lifetime warranty.</p><p> Hamburger's remote oil filter bases are a must have for custom projects, such as, engine swaps and chassis modifications, that require the oil filter be removed from the block and relocated elsewhere. This unit durable enough for marine or all-out competition use, and the dense billet alluminum material makes it ideal for diesel engines.</p><p>To accomodate the endless list of possible obstacles created during custom car build, Hamburger's is regularly introducing new options and design styles to its oil filtration component line. This model is configured for Right-to-Left oil flow, keeping the unit and inlet/outlet oil lines inline, to maintain a low profile along a fenderwell, framerail or firewall.</p><p>Engine oil enters through the right side of the unit, travels through the filter, and exits out the left side port on the unit. Large -12AN inlet and outlet ports means all Hamburger's oil filter bases and bypasses can provide ample flow to meet the needs of any car, truck or race engine. An 1/8" NPT instrumentation port has been built into the unit for pressure or temperature gauge.</p><p> The unit uses a mammouth Fram PH3786, Mobil M1-601, Motorcraft FL-1995, NAPA 1734, STP S3786, WIX 51734, or equivalent oil filter with a 1-1/2"-16 thread size, 3.75" diameter seal, and bypass setting that matches your engine's factory filter setting.</p><p>This base reqquires a pair of oil lines and bypass adapter to complete the installation. If you do not already have these items, Hamburger's offers this base as part of complete filter relocation system that includes a filter bypass adapter, Gates hoses, fittings, ferules and the rmote base.</p><p>This base is CNC machined from 6061 T6 aluminum, and includes a 1-1/2"-16 nipple.</p>

• Covered By A Limited LifeTime Warranty
• Dense Billet Material Is Ideal For Diesel & High-Performance Engine Use
• Made In The USA!
• Oil Flows Through The Remote Base From Right To Left
• Uses A PH3786 (or equivalent) Oil Filter (not included)

Attributes:

• GTIN: 00086923034087
• Brand Name: Hamburger's Performance
• Auxiliary Port: Yes
• Bracket Included: no
• Contents: Billet Aluminum Oil Filter base, Filter Nipple
• Finish: Clear Anodized
• Finish Type: Clear anodized and engraved for easy port identification
• Material: Billet Aluminum
• Materials: 6061-T6 Billet Aluminum
• Mounting Bracket Included: No
• Mounting Hardware Included: No
• Nipple Included: Yes
• Filter Nipple Thread Size: 1 1/2 in.-16
• O.E. Replacement: No
• Oil Filter Compatibility: FRAM PH3786 (or equivalent)
• Oil Line Kit Included: No
• Package Contents: Remote Filter Bracket and Nipple(s)
• Port Style: Horizontal
• Race Only: No
• Remote Base Filter Size: FRAM PH3786 (or equivalent)
• Replacement Nipple: 3382
• Single or Dual Filter: Single
• Installation Notes: For easier installation use Hamburgers Mounting Plates 3398 or 3399.
• Notes: Oil Flow: Right to Left Flow
• Auxiliary Port Size: 1/8 in. NPT
• Port Size: -12AN (ORB O-Ring Boss style) Inlet and Outlet Ports
• Fitting Thread: -12 AN (ORB o-ring boss)

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9.750 x 3.250 x 5.500 inches
• Weight: 2.750 lb
