REDARC SINGLE VOLTAGE 52MM GAUGE WITH OPTIONAL CURRENT DISPLAY G52-VA
REDARC SINGLE VOLTAGE 52MM GAUGE WITH OPTIONAL CURRENT DISPLAY G52-VA
REDARC:
Part #
REDARC-G52-VA
UPC #
09338628003549
Regular price
$202.00 USD
Regular price
$266.64 USD
Sale price
$202.00 USD
Unit price
/
per
Product Description
Product Description

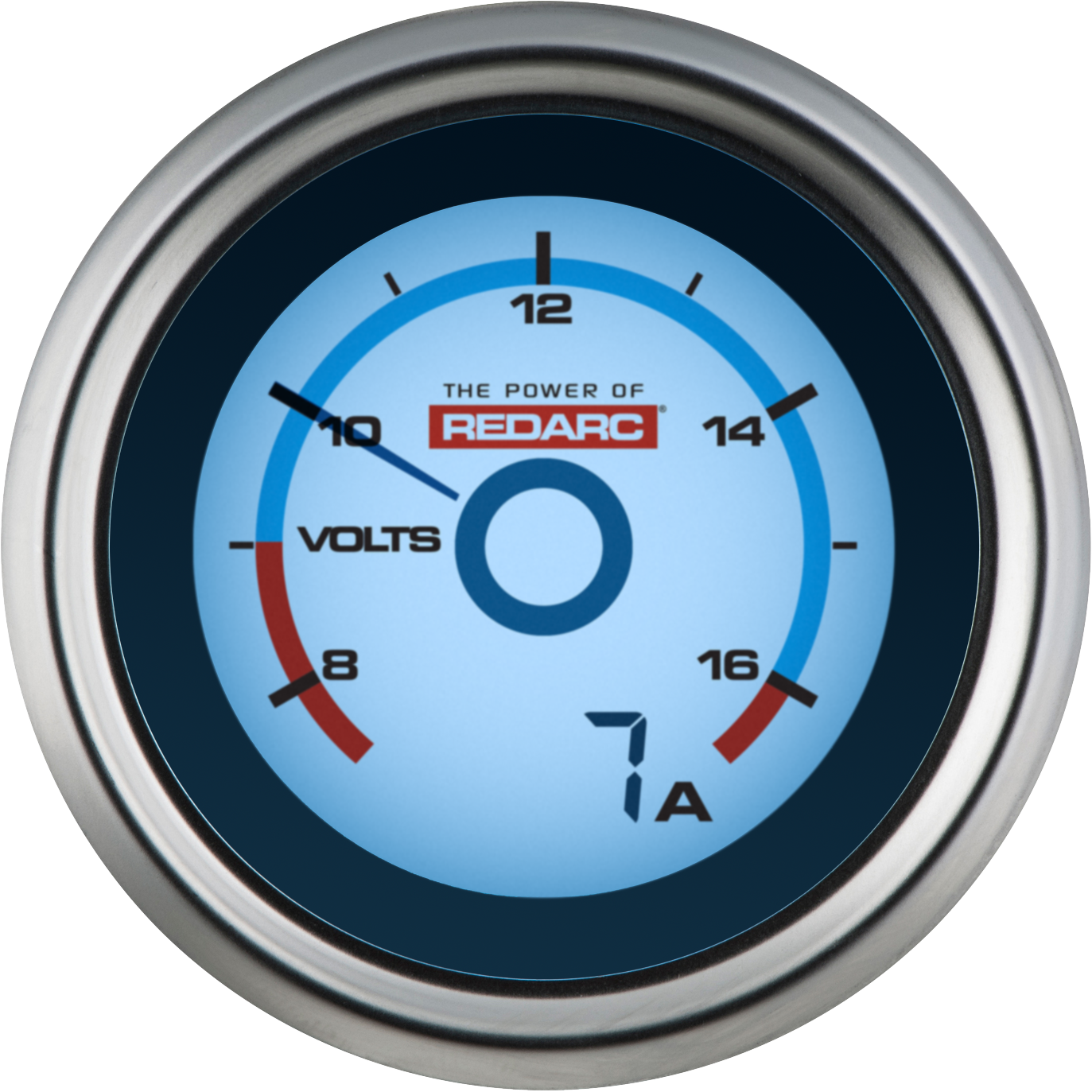

The REDARC Single Voltage 2-1/16 (52mm) Monitoring Gauge enables LED/LCD display charge performance monitoring of either the main or auxiliary battery of 4WDs, campers, caravans, motorhomes, and other like vehicles. It provides a visualization of charging performance and battery health of your auxiliary battery. If there is an alternator or system failure, the voltage reading will be low and drop as the battery discharges. In the case of an overcharge condition, the gauge will climb above its normal zone. There are pre-set alert levels (<9V and >16V) to notify you of these changes by altering the gauge backlight to either amber or red. The G52-VA will also notify you with a beep when the vehicle ignition is on. The G52-VA comes equipped with an optional 100A-rated current display. This monitors the amount of current to or from your main or auxiliary battery. To equip the gauge with this functionality, purchase the REDARC Hall Effect Current Sensor (GS-AMPS). Connect the G52-VA to a vehicle with a 24 volt ignition via a REDARC 24 to 12 Volt Adaptor (GA-2412V) but know only a 12 volt battery can be monitored. The gauge is made of satin chrome bezel and comes with 13 backlight color options. There are multiple alert levels that will notify you as your battery voltage drops below 9V or climbs above 16V. The display illuminates with park lights turned on so you can check battery health without turning on the ignition. To enhance the lighting of the G52-VA, REDARC recommends purchasing the Enhanced Lighting Controller (GA-ELC). The GA-ELC can be used when you don't have a dimming circuit to connect your gauge to or the dimming circuit in your vehicle does not dim the REDARC gauge to your preference.
- LCD/LED display
- Highest quality standard the gauges are finished with a satin chrome bezel
- Thirteen main backlight color options to choose from - with two additional programmable alert backlight colors with audible beeps.
Attributes
Attributes
- GTIN: 09338628003549
- Brand Name: REDARC
- Add-On: GS-AMPS, GA-ELC, GH-MP1, GH-CUP, GA-2412V
Extended Information
Extended Information
- Country of Origin: Austrailia
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 2.8300 x 9.2500 x 5.1200 inches
- Weight: 0.4900 lb
