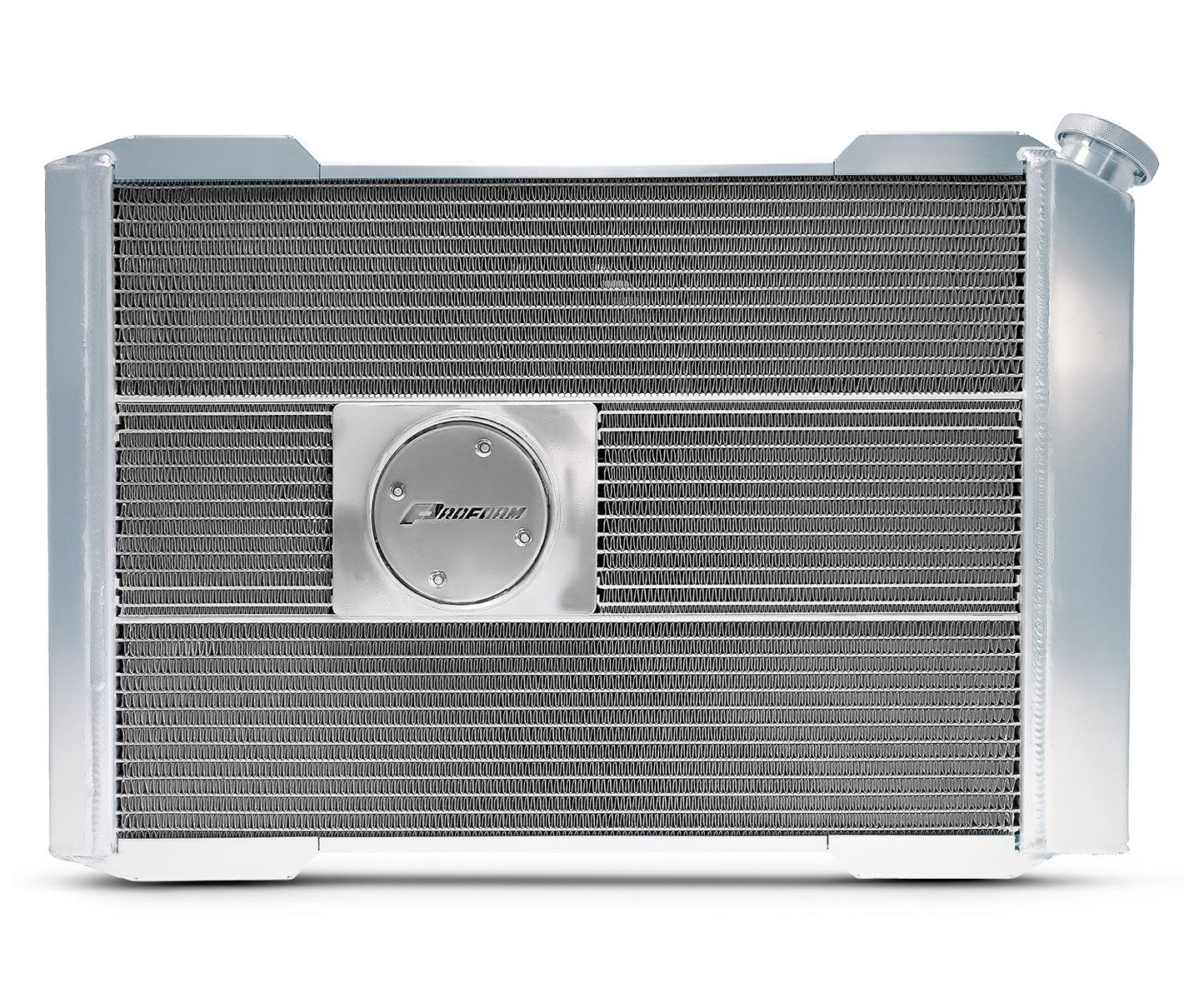

Proform Slim-Fit Radiator System, Universal, Ford Style, 23-inch Core, Manual Trans 69590-23

The basic concept of automotive radiators hasn't changed in more than 100 years! And fans have been hung onto them in a mish-mash of ways for just as long. Since then, aside from materials and design improvements, NOTHING HAS CHANGED...UNTIL NOW! PROFORM is upending the radiator industry with the introduction of its new Slim-Fit Integrated Radiator System! No more cobbling together a core, a fan, and possibly a shroud, and gobbling up 8" of valuable front-to-back under-hood space, sometimes leading to clearance problems. BETTER DESIGN - UP TO 40% THINNER! AND SLEEK! PROFORM has completely rethought how the radiator, fan, thermostat, and shroud can come together seamlessly to create a unified radiator system that is under 4" thick (core/shroud), looks and works great, and is pre-assembled right out-of-the-box! This universal model is ready for customization, or might just happen to be the right size for easy installation into your vehicle. A hodge-podge of one hundred years of rigged-up cooling paraphernalia has come to an end. INNOVATION! What did we do? With revolutionary engineering we flipped the motor around so instead of hanging on the outside, it's integrated directly into a uniquely designed core made with state-of-the-art brazing technology (with no meaningful cooling compromise). Combined with a high-performance fan blade inserted into a smooth aluminum shroud, the result is the industry's narrowest, most streamlined look. Every PROFORM Slim-Fit Integrated Radiator includes a shroud, electric fan with adjustable thermostat, wiring harness, and radiator cap.

Attributes:

• GTIN: 00037995590230
• Brand Name: Proform
• Cap Color: Silver
• Color: Silver
• Condition: NEW
• Core Height (in): 17
• Core Thickness (in): 2.4
• Core Width (in): 23
• Fan CFM: 2100
• Feature/Benefit: Billet aluminum filler neck with high capacity overflow tube
• Finish: Natural
• Height (IN): 18.5
• Inlet Diameter (in): 1.5
• Inlet Location: Passenger Side
• Max Recommended Horsepower: 600
• Mounting Style: Universal
• Number Of Blades: 8
• Outlet Diameter (in): 1.75
• Outlet Location: Driver Side
• Overall Width (in): 27.4
• Part Type: Radiator
• Series: Slim-Fit
• Shroud Color: Natural
• Transmission Type: Manual
• Voltage Compatibility: 12

Extended Information:

• Country of Origin: Taiwan
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 8 x 22.3 inches
• Weight: 28.4 lb
