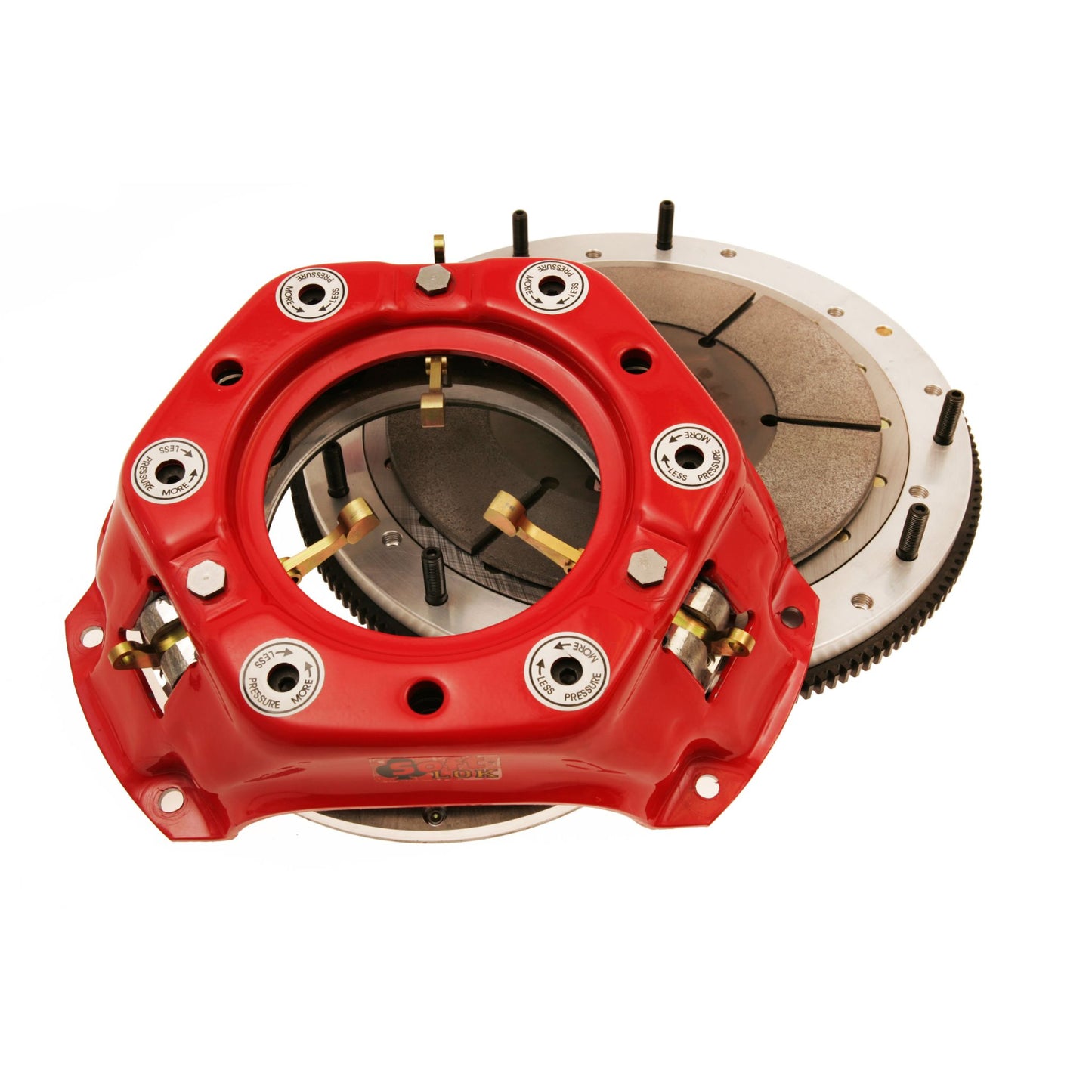

McLeod Soft Lok 11" Alm Ford 4.6/5.0/5.4L 8 Blt 0 Bal 1-1/8 X 26 164T 4978-00-07

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.

• McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate.

Attributes:

• GTIN: 00887753674425
• Brand Name: McLeod
• Racing Application: Drag Racing
• Ring Gear: 164 tooth
• Spline: 1 1/8In. x 26
• Disc Diameter: 11In.
• Engine: 1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank
• Engine Balance: Internal Balance
• Flywheel Included: Yes
• Flywheel Material: Aluminum
• Hub Style: Solid
• Make: Ford
• Number of Discs: Single

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 75 lb
