McLeod Soft Lok Alm Chevy 11 X 1-1/8 X 10 Spl HCF 0Bal 168T 4911-00-04

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.

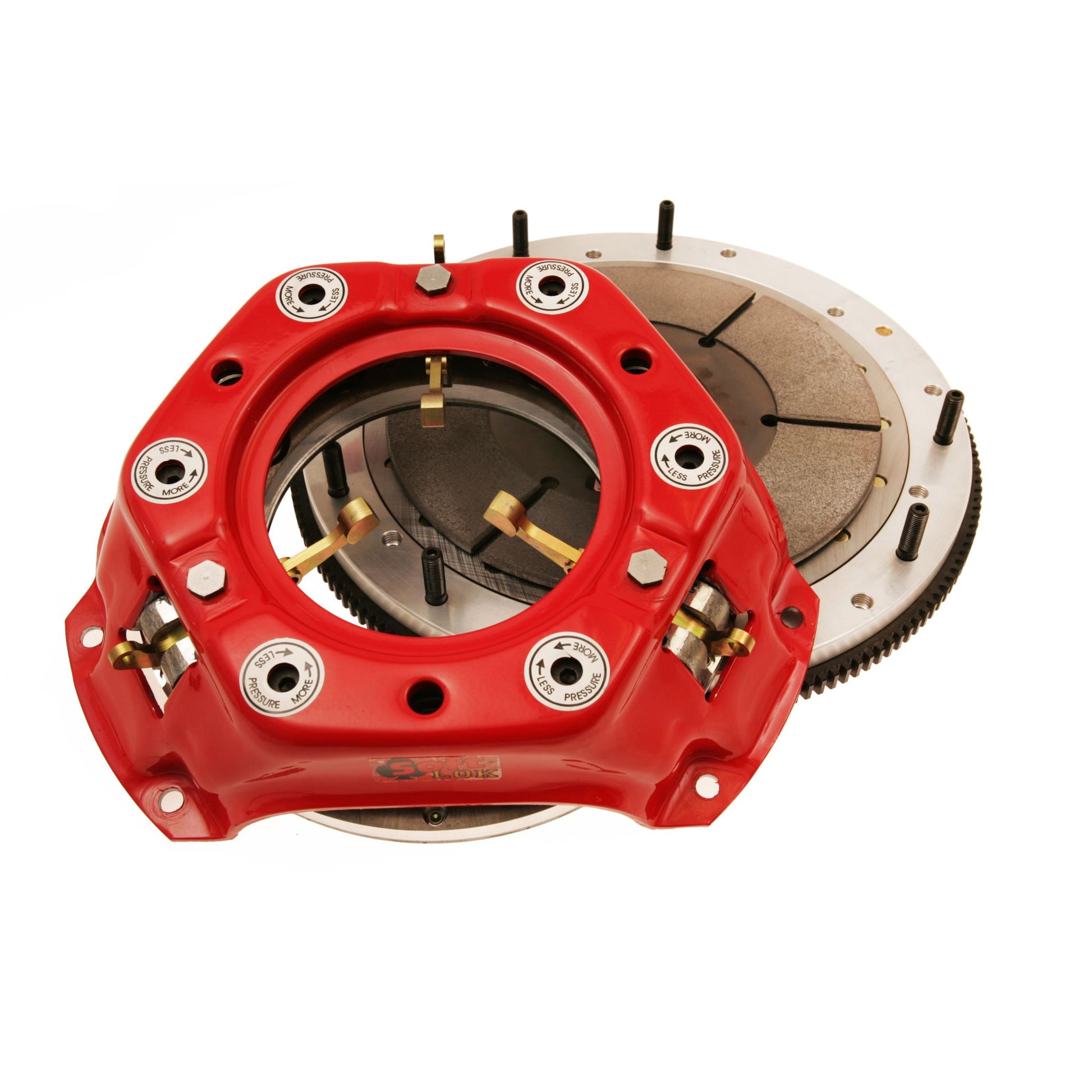

• McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate.

Attributes:

• GTIN: 00887753674883
• Brand Name: McLeod
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Throwout Bearing Included: No
• Flywheel Material: Aluminum
• Flywheel Included: Yes
• Engine Balance: Internal Balance
• Disc Style: Solid Hub
• Disc Material: Sintered Iron
• Throwout Bearing Style: Standard
• Make: Chevrolet
• Engine: 1955-85 SBC 2pc Seal
• Engine 2: 1970-1990 BBC 2pc Seal
• Engine 3: 1991-Up BBC 1pc Seal
• Ring Gear: 168 tooth
• Disc Diameter: 11In.
• Spline: 1 1/8In. x 10
• Racing Application: Drag Racing
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Single
• Hub Style: Solid

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 75 lb
