McLeod Soft Lok Alm Ford 429/460 11" X 1-1/8 X 26 Spl HCF 0Bal 176 4994-00-07

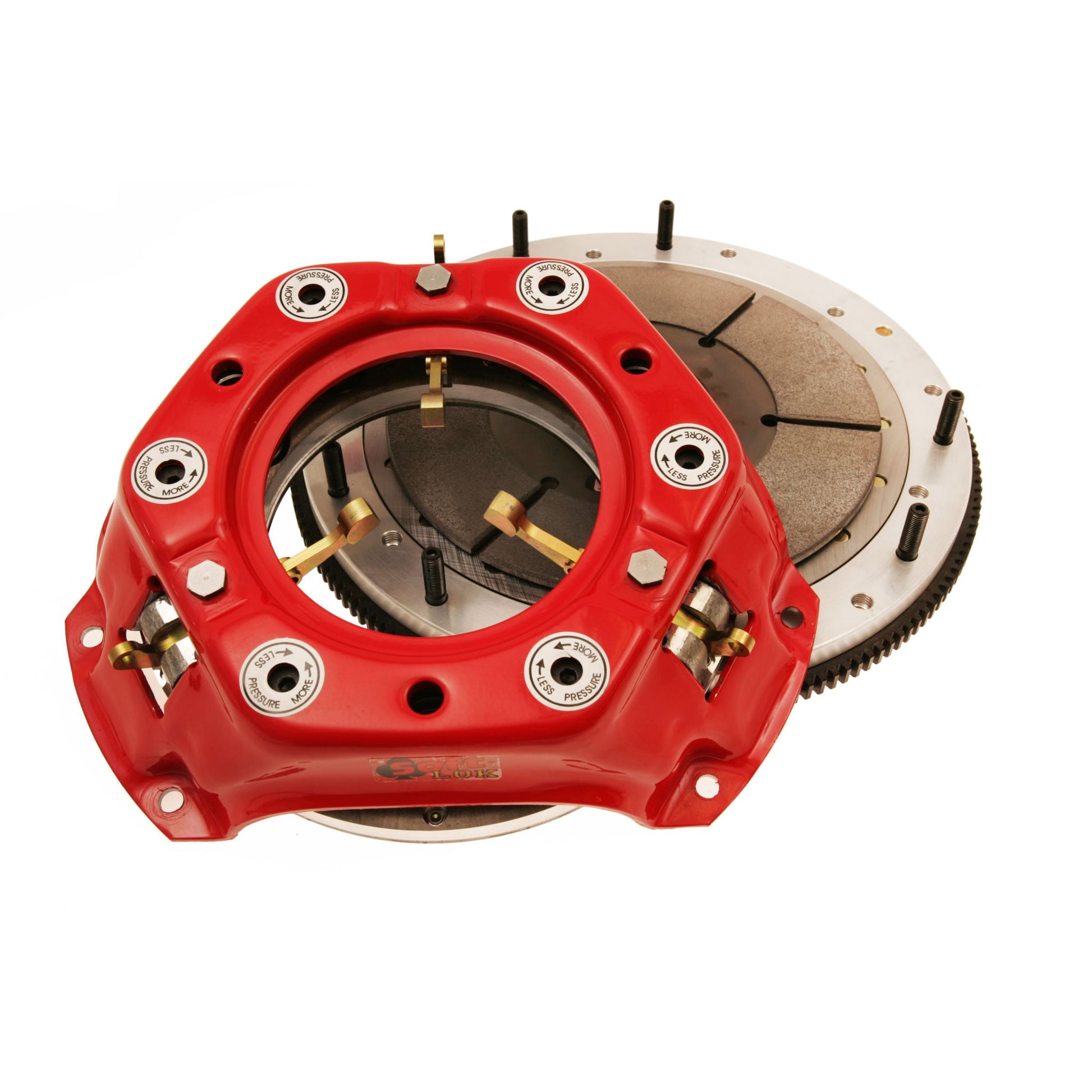

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.

• McLeod Racing offers various friction materials, disc diameters and inputshaft splines with superior components to cover multiple applications.

Attributes:

• GTIN: 00887753674098
• Brand Name: McLeod
• Disc Diameter: 11In.
• Engine: 1969-1978 BBF
• Engine Balance: Internal Balance
• Flywheel Included: Yes
• Flywheel Material: Aluminum
• Hub Style: Solid
• Make: Ford
• Number of Discs: Single
• Racing Application: Drag Racing
• Ring Gear: 176 tooth
• Spline: 1 1/8In. x 26

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 75 lb
