McLeod Soft Lok HCF Ford Sm Blk 5.0/5.7L 0 Bal 10" X 1-3/8 X 10 Spl 157T 4960-00-06

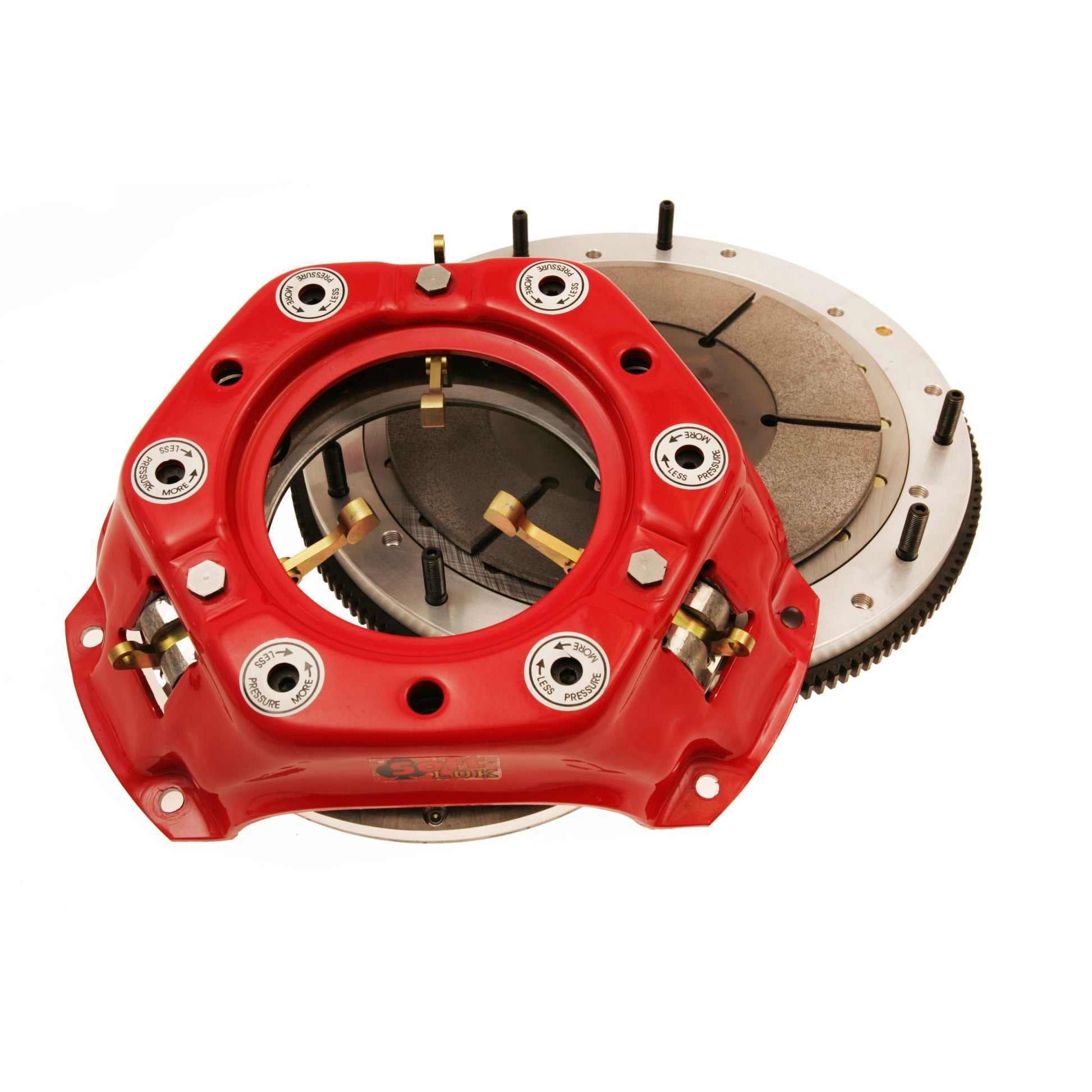

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.

• McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate.

Attributes:

• GTIN: 00887753674760
• Brand Name: McLeod
• Make: Ford
• Engine: 1964-1995 SBF
• Disc Diameter: 10In.
• Engine Balance: Internal Balance
• Flywheel Included: Yes
• Flywheel Material: Aluminum
• Hub Style: Solid
• Number of Discs: Single
• Racing Application: Drag Racing
• Ring Gear: 157 tooth
• Spline: 1 3/8In. x 10

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 75 lb
