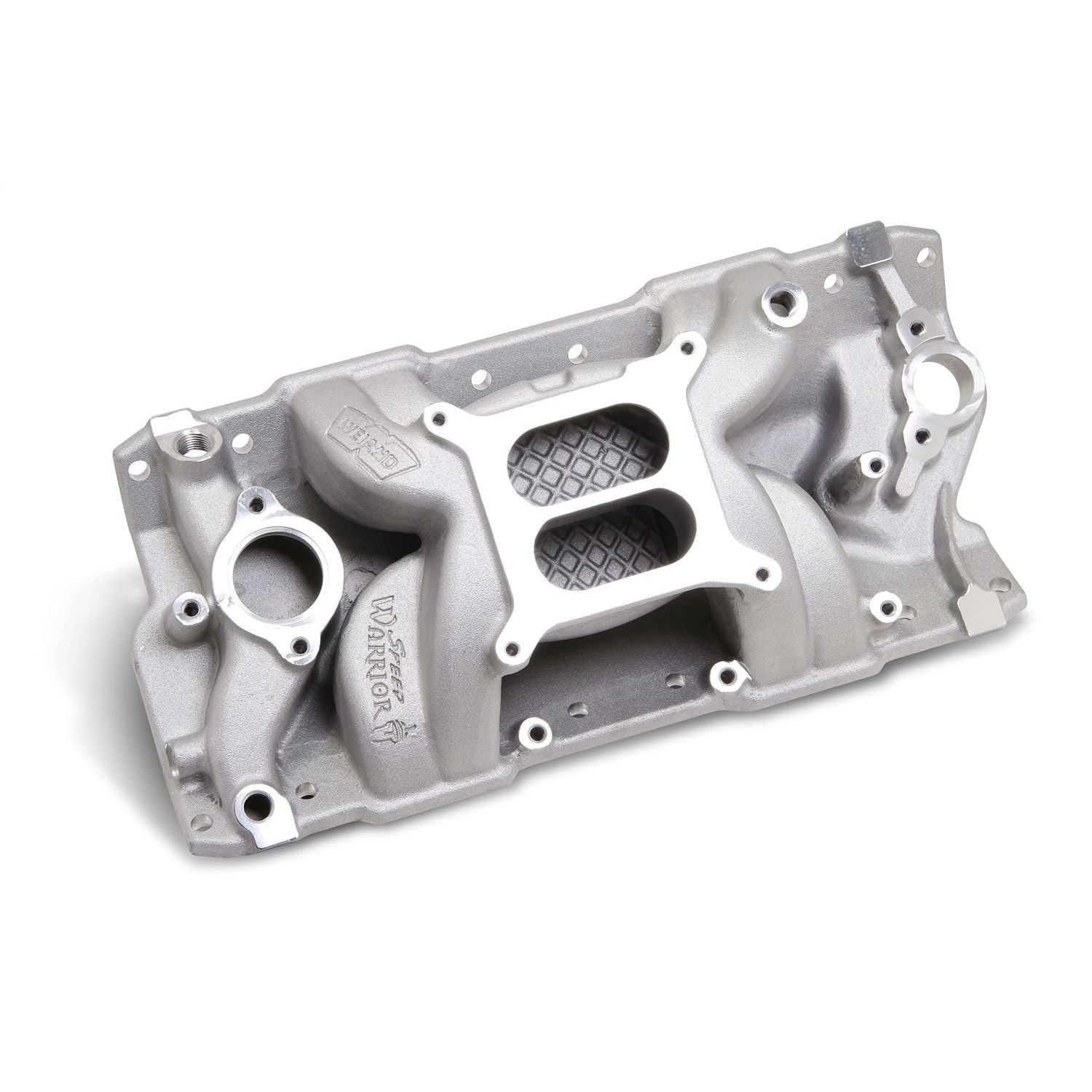

Speed Warrior™ Intake Manifold

The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! * Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G

• Port Size 1.92 in. Height x 1.16 in. Width
• 1500-6700 RPM Power Band
• Square Bore Carburetor Flange
• Isolated Runners To Reduce Intake Charge Heating
• Promotes Airflow Between Hot Engine/Intake Plenum
• High Rise/Dual Plane Design
• Precision CNC Machining
• Permanent Mold Casting
• Height Front 4.19 in.; Rear 5.27 in.

Attributes:

• GTIN: 00090127621813
• Brand Name: Weiand
• Construction: Cast
• Cylinder Head Type: Standard
• Emission: Without EGR
• Engine Make/Size: Chevy Small Block V8
• Finish: Satin
• Front Height: 4.190 in.
• Fuel System Type: Carb
• Manifold Type: High Rise
• Number of Carbs: One
• Position: Lower
• Rear Height: 5.270 in.
• RPM Range: 1500-6700
• Usage: Street/Strip
• WARNING CA Proposition 65: No

Extended Information:

• Country of Origin: China
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 25.0000 x 12.5000 x 7.2000 inches
• Weight: 17.6900 lb
