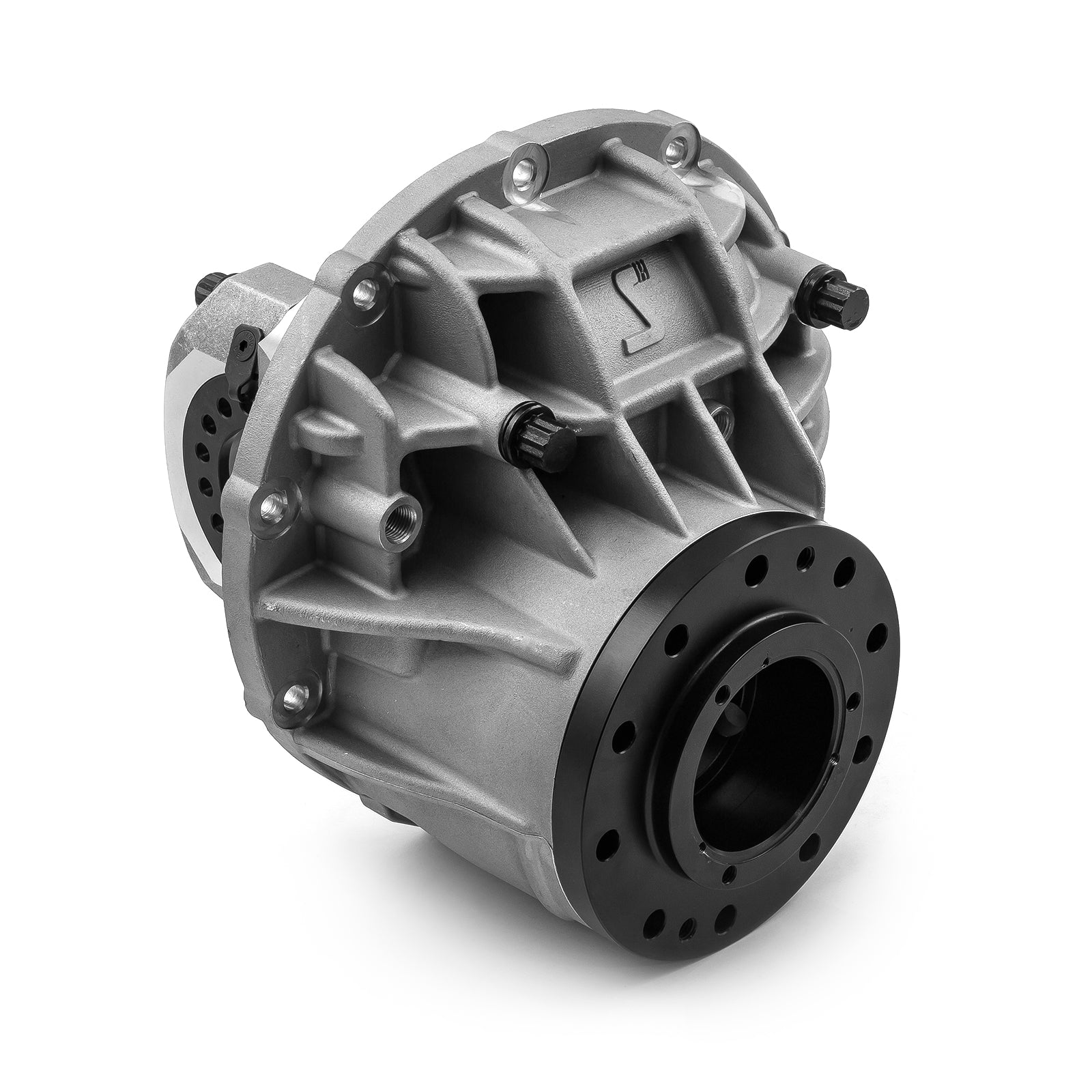

Speedmaster 1-214-005-02 Fits Ford 9" 4.00" Long Nose Aluminum Case Drop Out W/ Pinion Support

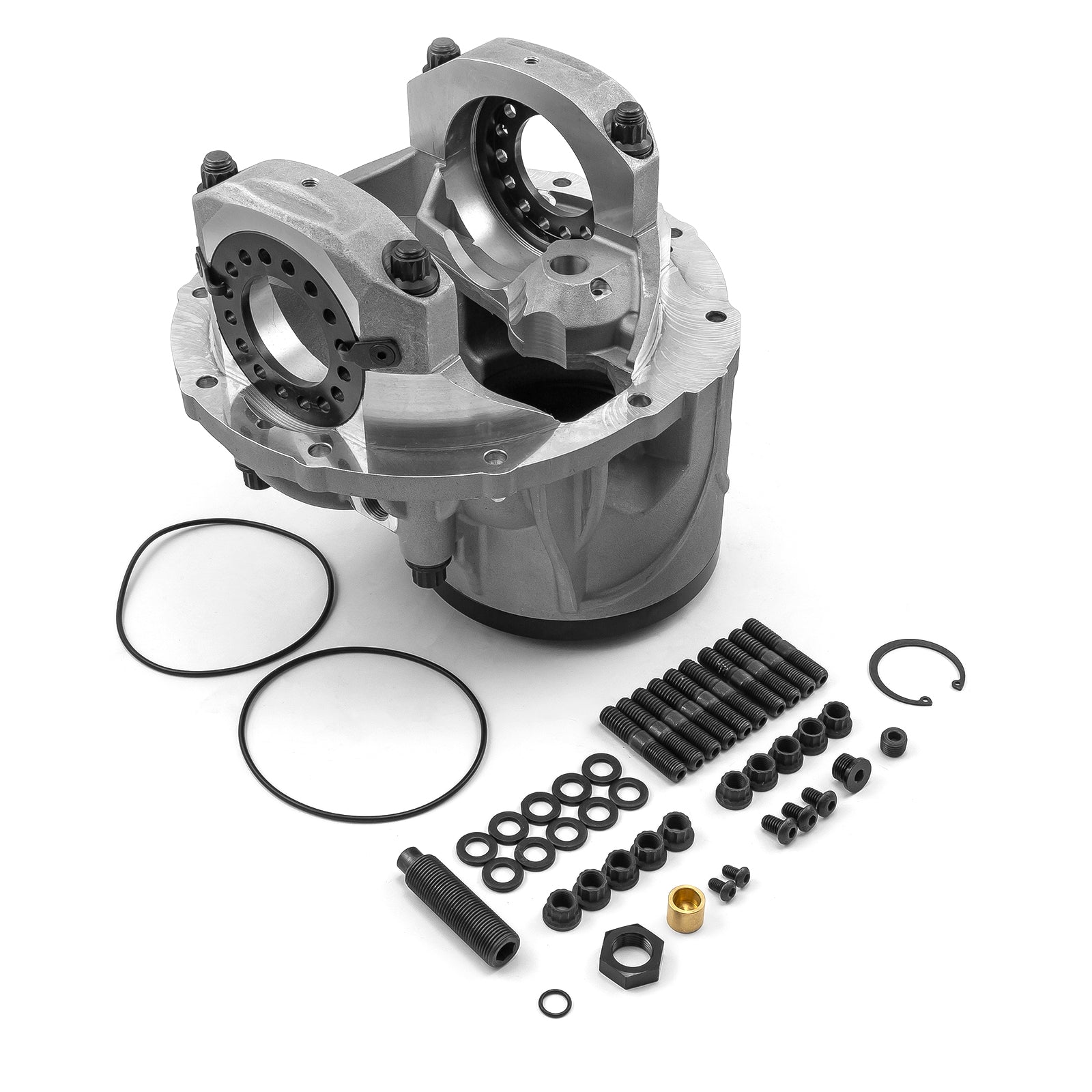

Speedmaster Aluminum Dropouts are in improvement from the past. Current technology has made aluminum products stronger and more durable. Our aluminum cases are made from 201-T6 aluminum, our bearing caps are from one-piece billet, with a through bolt design and extra material is added to the bearing caps. This results in 50% less deflection that can occur with other units on the market. Carrier Bearings: _x000D_ PCE203.1006 (Ford 9" Carrier Bearing w/ 2.75" Journal to suit 4.00" Case) _x000D_ PCE203.1007 (Ford 9" Carrier Bearing w/ 2.25" Journal to suit 4.00" Case) _x000D_ PCE203.1008 (Ford 9" Carrier Bearing w/ 2.00" Journal to suit 4.00" Case) _x000D_ _x000D_ Pinion Bearings: _x000D_ PCE207.1008 (Pinion Bearing Industry Std Ref: 2788 / 2729) _x000D_ PCE207.1009 (Pinion Bearing Industry Std Ref: HM804846 / HM804810) _x000D_ _x000D_ Pilot Bearing: _x000D_ PCE468.

• Made from 201-T6 aluminum
• Bearing caps are from one-piece billet
• Through bolt design
