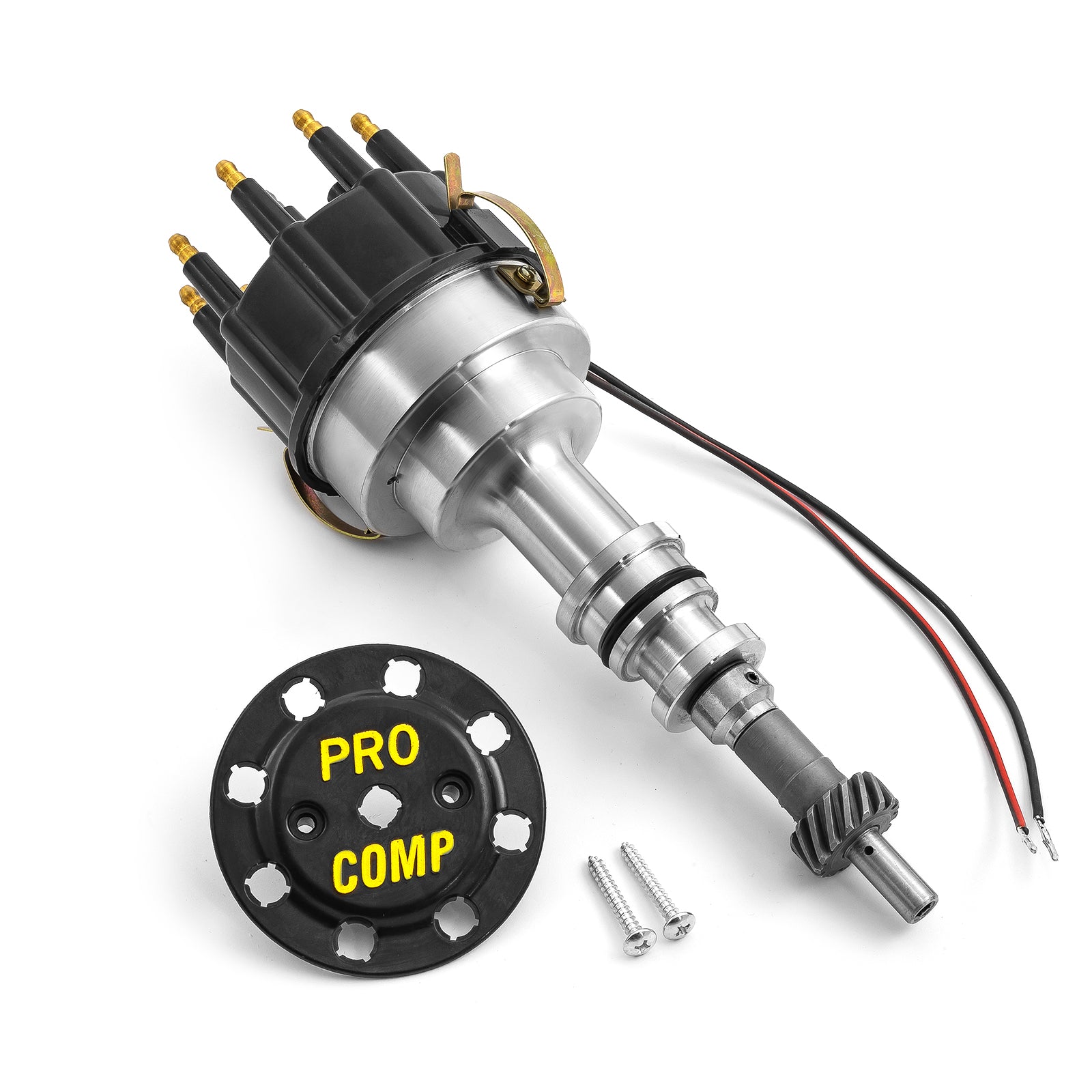

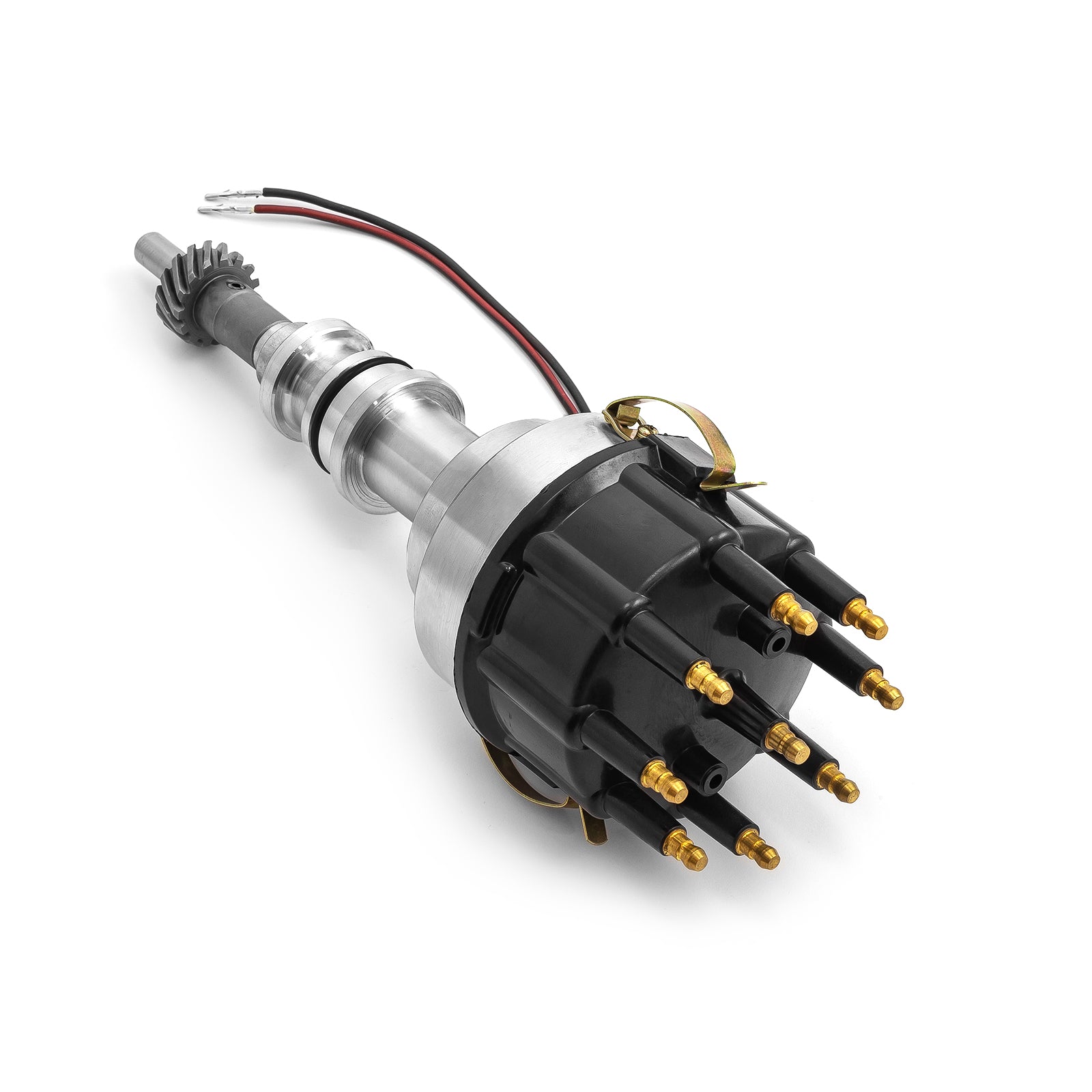

Speedmaster PCE376.1100.04 Fits Ford SB 289 302 Windsor 8000 Series Pro Billet Distributor Short Body [Black]

The advance mechanism can also be easily locked out for racing applications. To accurately trigger the ignition, a high-output magnetic pickup is bolted to the base. This pickup produces a precise trigger signal that will never vary more than one degree at any rpm. A durable gear is installed for performance applications, and a black cap with brass terminals and race rotor is supplied. They require a separate ignition box. PCE 8000 Series billet distributors are designed for the enthusiast that is serious about performance but needs the small cap size due to space considerations when installed. They are precision CNC machined from billet 6061-T6 aluminum to exacting tolerances. The "spark plug" type terminals offer secure wire attachment. Under the brass terminals of the cap and rotor is an extremely accurate magnetic pickup that never requires adjustment along with an easy to adjust mechanical advance mechanism. The heavy duty 1/2" steel shaft is guided in a long sintered bushing as well as a sealed ball bearing at the top to precisely locate the reluctor. This combination yields stable timing and spark delivery at any RPM. Billet Housing: PCE Magneto Series feture a distributor housing machined from billet aluminum. PCE uses Computerised Numerical Controlled (CNC) mills and lathes to create each housing.

• CNC machined aluminum body
