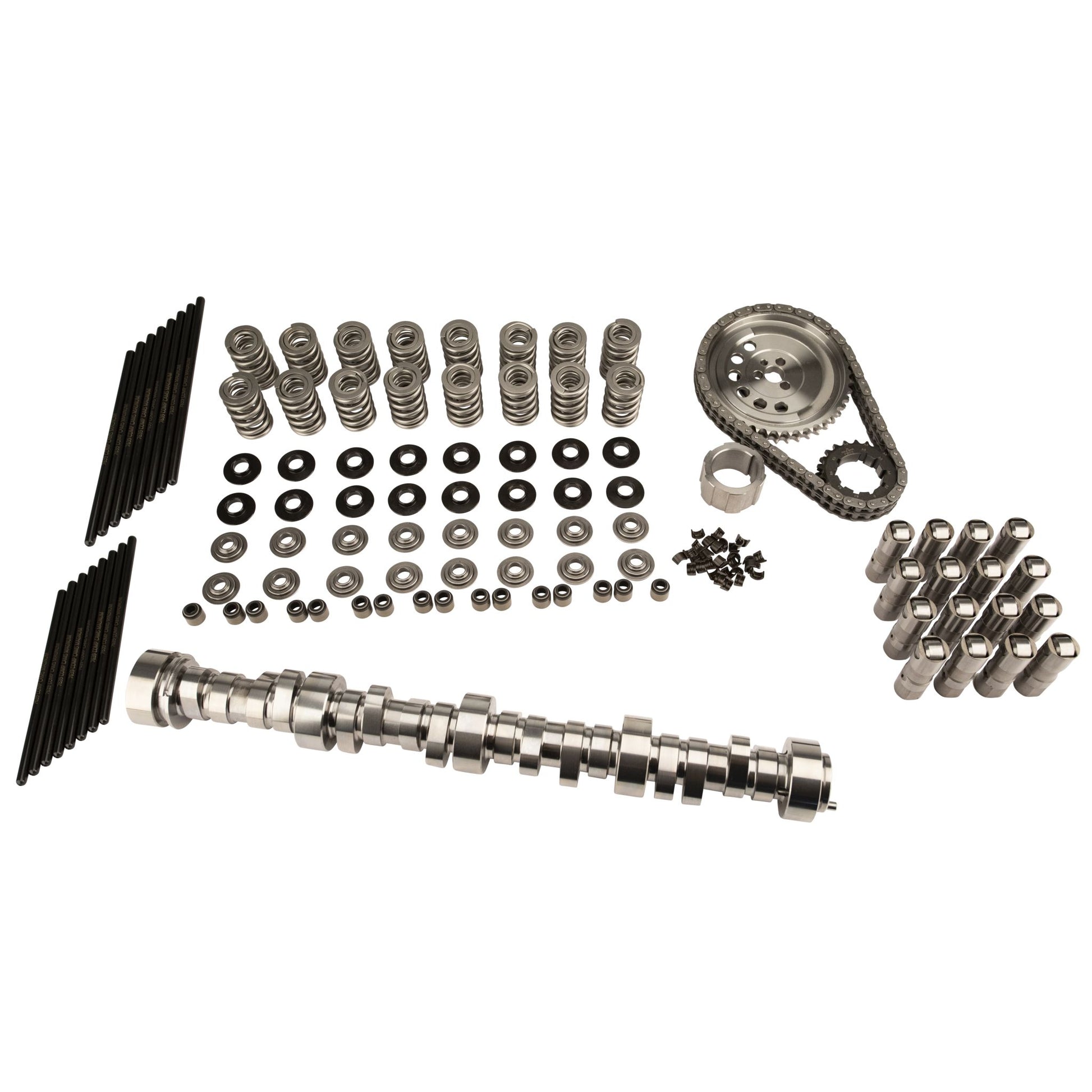

COMP Cams Stage 1 LST (24X) Master Camshaft Kit for LS 4.8/5.3L Turbo Engines COMP-MK54-330-24

Attributes:

• GTIN: 00036584387299
• Brand Name: COMP Cams
• Kit Type: MK-Kit
• Camshaft Series: Low Shock Technology
• Usage: Street / Performance, Street/Strip
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,300-7,400
• Intake Duration at .050 Inch Lift: 223
• Exhaust Duration at .050 inch Lift: 225
• Advertised Intake Duration: 278
• Advertised Exhaust Duration: 280
• Lobe Separation: 115
• Intake Valve Lift: 0.598
• Exhaust Valve Lift: 0.6
• Lifters Included: Yes
• Valve Springs Included: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• Retainers Included: Yes
• Locks Included: Yes
• Pushrods Included: Yes
• Gaskets Included: No
• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
• Stage: 1
• Timing Set Included: Yes
• Valve Seals Included: Yes
• Valve Spring Seats Included: Yes
• Recommended Upgraded Stock Rocker Arms: 1477-16
• Recommended Max-Lift BSR Shaft Rocker System: 1981-16
• Recommended Cam Install Kit: 5621
• Amazon ASIN: B07MC8XFMD
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 10.5 x 5.5 inches
• Weight: 27.25 lb
