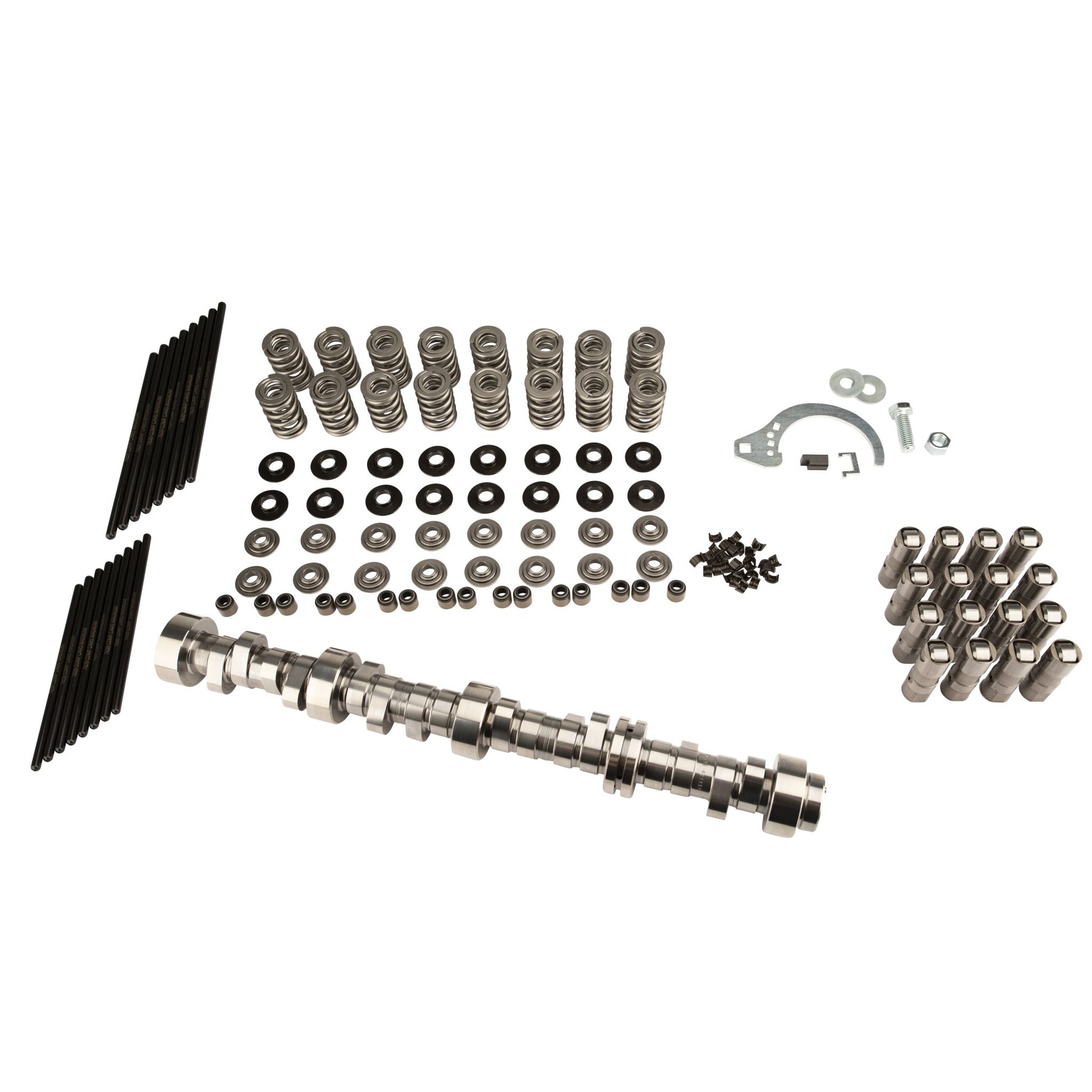

COMP Cams Stage 1 LST Master Cam Kit for L99 Camaro w/ Automatic Transmission and VVT COMP-MK189-301-13

Attributes:

• GTIN: 00036584387015
• Brand Name: COMP Cams
• Locks Included: Yes
• Pushrods Included: Yes
• Gaskets Included: No
• Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/o AFM 8 Cylinder (2008-2015)
• Stage: 1
• Timing Set Included: Yes
• Valve Seals Included: Yes
• Valve Spring Seats Included: Yes
• Grind Number: 286LMH11
• Estimated Horsepower Gain with Kit: 75
• Recommended Upgraded Stock Rocker Arms: 1478-16
• Recommended Max-Lift BSR Shaft Rocker System: 1982-16
• Recommended Cam Install Kit: 5623
• Amazon ASIN: B07MM2MVXF
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: MK-Kit
• Camshaft Series: Low Shock Technology
• Usage: Street / Performance
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,000-7,200
• Intake Duration at .050 Inch Lift: 231
• Exhaust Duration at .050 inch Lift: 244
• Advertised Intake Duration: 286
• Advertised Exhaust Duration: 293
• Lobe Separation: 111.5
• Intake Valve Lift: 0.614
• Exhaust Valve Lift: 0.606
• Lifters Included: Yes
• Valve Springs Included: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• Retainers Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 10.5 x 5.5 inches
• Weight: 27.25 lb
