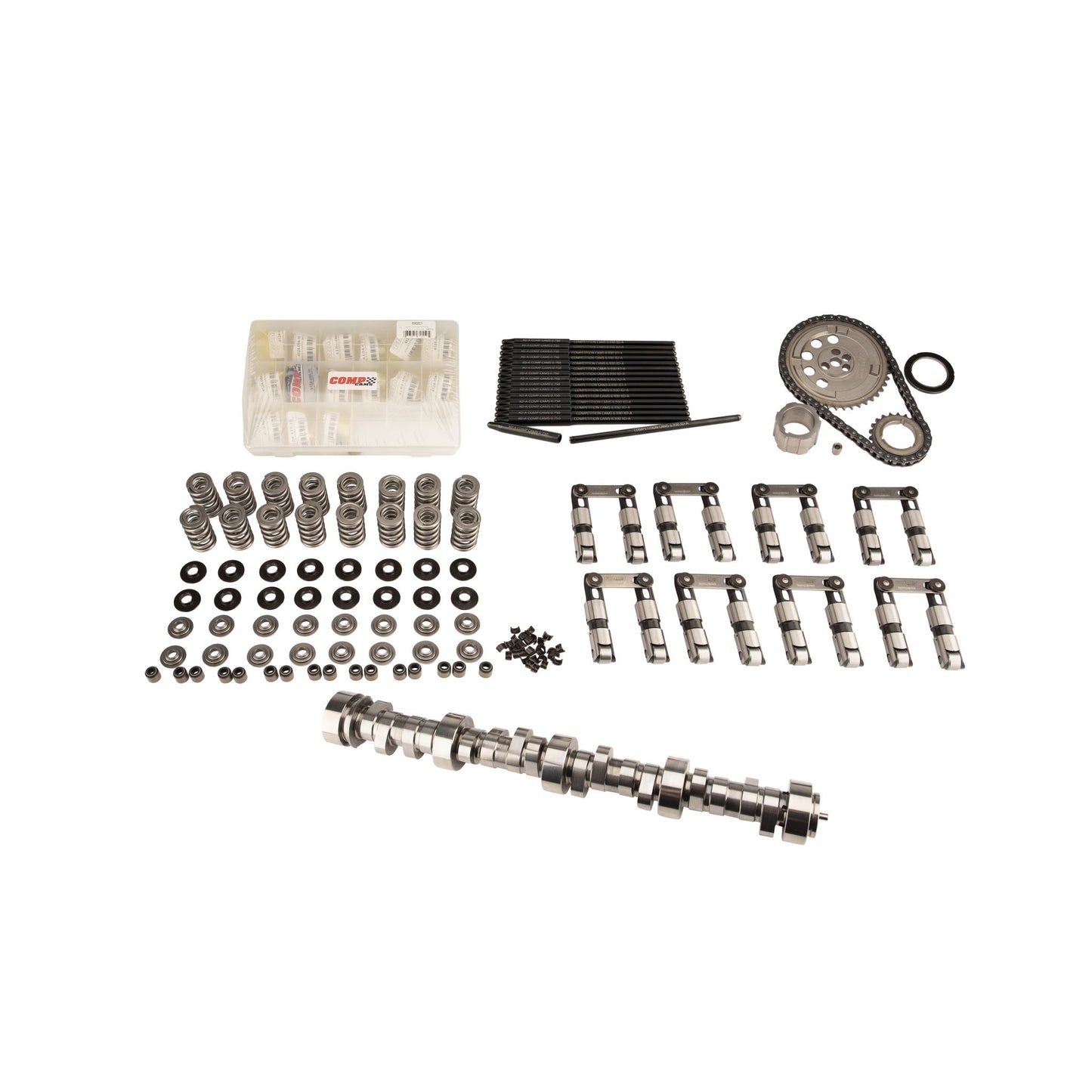

COMP Cams Stage 1 LST Max HP Solid Roller Master Cam Kit for 3-Bolt LS w/ Stock Pistons COMP-MK54-311-11

Attributes:

• GTIN: 00036584387398
• Brand Name: COMP Cams
• Kit Type: MK-Kit
• Camshaft Series: Low Shock Technology
• Usage: Street/Strip
• Cam Type: Solid Roller
• Basic Operating RPM Range: 2,800-7,500
• Intake Duration at .050 Inch Lift: 234
• Exhaust Duration at .050 inch Lift: 248
• Advertised Intake Duration: 274
• Advertised Exhaust Duration: 288
• Lobe Separation: 111.5
• Intake Valve Lift: 0.672
• Exhaust Valve Lift: 0.668
• Lifters Included: Yes
• Valve Springs Included: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Lifter Type: Solid Roller
• Retainers Included: Yes
• Locks Included: Yes
• Pushrods Included: Yes
• Gaskets Included: No
• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
• Stage: 1
• Timing Set Included: Yes
• Valve Seals Included: Yes
• Valve Spring Seats Included: Yes
• Grind Number: 274LGW11
• Estimated Horsepower Gain with Kit: 82
• Recommended Cold Lash Setting - Intake: 0.007
• Recommended Cold Lash Setting - Exhaust: 0.009
• Recommended Upgraded Stock Rocker Arms: 1477-16 (LS1), 1478-16 (LS3), 1479-16 (LS7)
• Recommended Max-Lift BSR Shaft Rocker System: 1981-16 (LS1), 1982-16 (LS3), 1983-16 (LS7)
• Recommended Cam Install Kit for LS7: 5622
• Recommended Cam Install Kit for non-LS7: 5621
• Amazon ASIN: B07MC8XPT5
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 10.5 x 5.5 inches
• Weight: 27.25 lb
