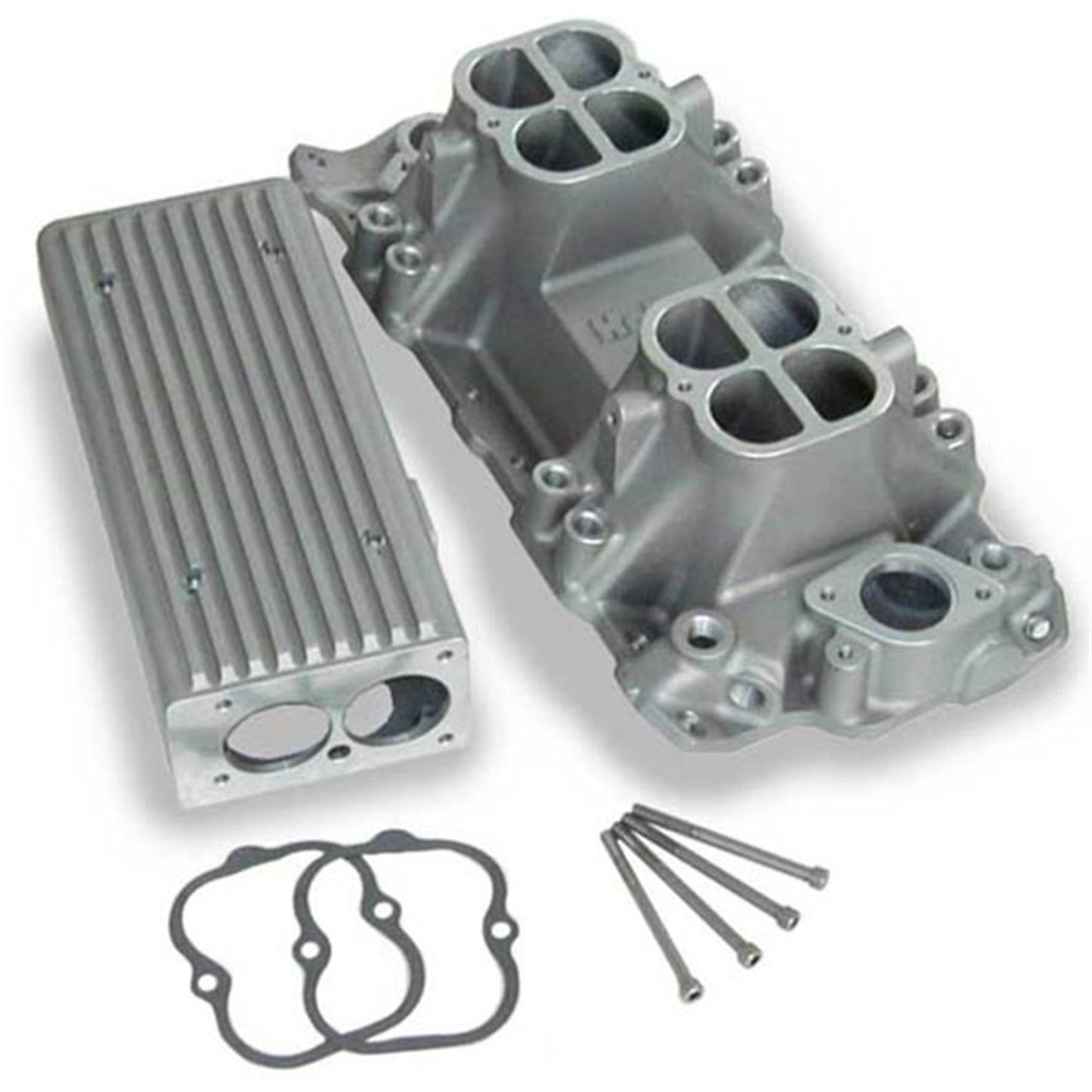

Stealth Ram™ Intake Manifold

The Weiand Stealth Ram(TM) intake is a revolutionary, radical departure from the ordinary. Designed to take advantage of the benefits associated with high ram manifolds, it combines aggressive race inspired looks with the drivability of EFI. Designed primarily as a component of the Holley Stealth Ram(TM)/Commander 950 EFI system, the manifold is now available for retrofit on L-98 TPI engines and other street/strip machines utilizing standard or 1987 and later aluminum Chevy cylinder heads. The manifold is designed to accept OEM and aftermarket TPI throttle bodies and includes provisions for mounting bracketry necessary for kickdown, cruise and throttle cables. Whether you are looking for more power for that late 80's Camaro or a new look for your street machine, look to Weiand. *** Use Holley 2x58mm billet throttle body (p/n 112-503 or 112-507) or stock TPI throttle body. Requires use of small cap distributor. Manifold features universal mounting bolt design engineered to accommodate both straight and angled center manifold bolts (requires P/N 90748 Weiand bolt kit for 1987 & later cast iron). Accepts stock or Lokar(R) TPI kickdown brackets. May require additional sealing modifications for high boost blow through applications. Will not fit Corvette due to manifold height

• Idle-6500 RPM Power Band
• D Shaped Runners Promote High Flow Rates w/o Turbulence
• No EGR Provisions
• 2-Piece Design Has Short Individual Runners/Large Upper Plenum
• Precision CNC Machining
• Permanent Mold Casting
• Satin Finish

Attributes:

• GTIN: 00090127577011
• Brand Name: Weiand
• Construction: Cast
• Cylinder Head Type: Standard
• Emission: Without EGR
• Engine Make/Size: Chevy Small Block V8
• Finish: Satin
• Front Height: 10.250 in.
• Fuel System Type: EFI
• Manifold Type: High Rise
• Number of Carbs: None; For Fuel Injection
• Position: Lower
• Rear Height: 10.250 in.
• RPM Range: Idle-6500
• Usage: Street/Strip
• WARNING CA Proposition 65: No

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 24.3000 x 12.3000 x 12.5000 inches
• Weight: 26.4700 lb
