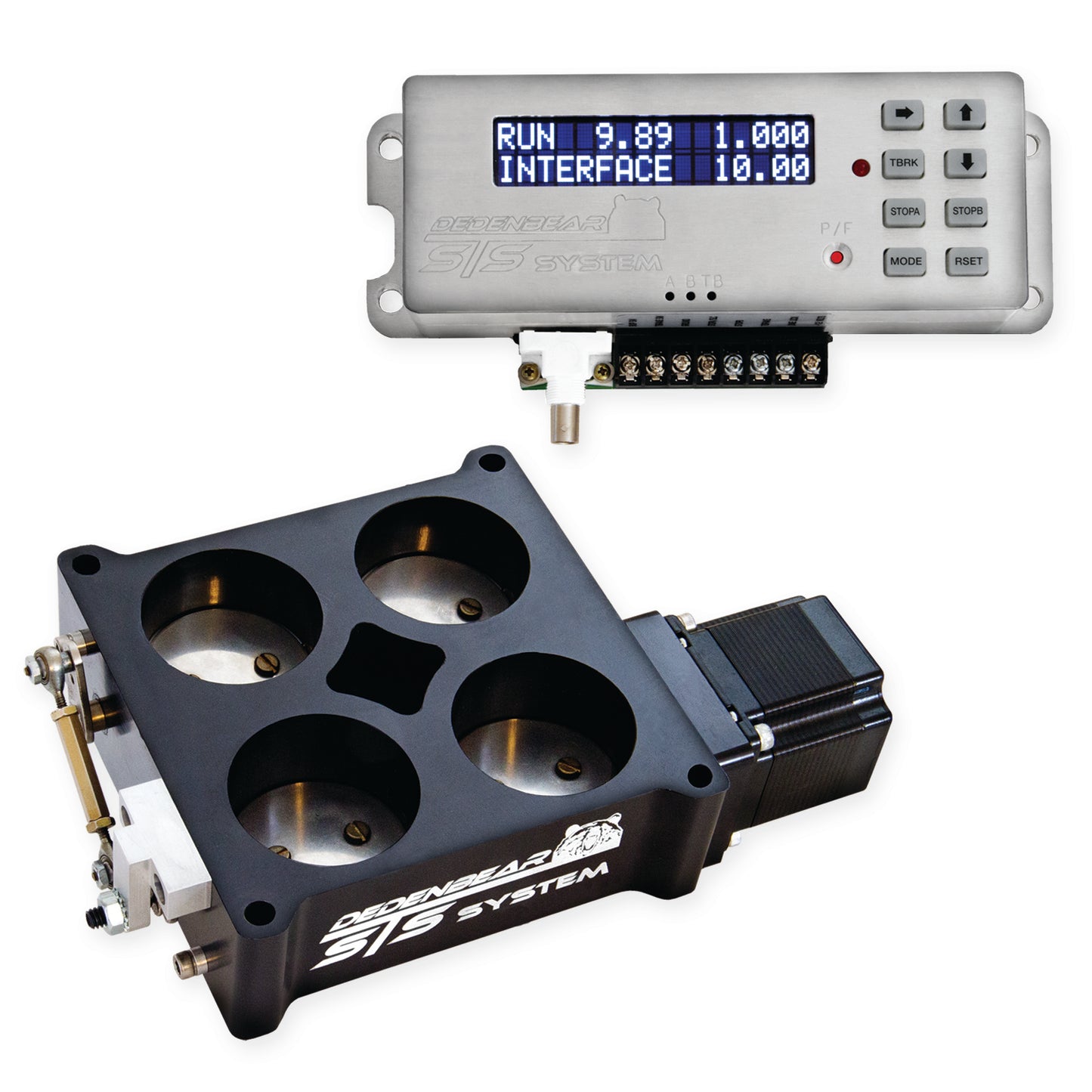

Dedenbear STEPPER THROTTLE STOP KIT STSK

The Dedenbear Stsk Combines The Consistency Of An Electric Stop With The Tunability Of A Co2 Stop, With Enhanced Controls And Configurability Previously Unavailable In Super Class Racing. Open And Close The Stop Blades Up To 8 Separate Times During A Run, All At Different Speed And Different Angles Of Closing. Starting Line Control Is Included Standard For The Ultimate In Launch Consistency. Even Better, Every Adjustment Can Easily Be Accomplished Right From The Drivers Seat, Including Stop Rpm Providing The Ability To Make Last Minute Adjustments Before A Run.

• Highly configurable base plate throttle stop and delay box controller assembly
• Unmatched repeatability regardless of changes in system voltage or barometric pressure
• Built-in starting line control functionality
• For Single 4Bbl Dominator Carbureted Engines Displacing Less Than 555Cid With Compression Less Than 14.5:1
• 4 Modes of Delay: Delay, Crossover, Crosstalk, and Interface
• Two 4-stage timers rated at 15A ea. Suitable for controlling: stops, shifters, nitrous systems, ignition retards, etc.
• Two Delay And Stop Control Setting Groups Allows For Quick Switches Between Super And Bracket Setups
• Delay box measures 8.73 in. W x 2.95 in. H x 1.85 in D.

Attributes:

• GTIN: 00046074165030
• Brand Name: Dedenbear
• Add-On: SC2;SC3;SC4;PBSRTD;PBSXL;RD1

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 15.25 x 5 inches
• Weight: 12.75 lb
