McLeod Street Extreme: Kit:1963-85 SBF:10.5"x 1-1/8x26: Diaphragm:Mech Linkage 75306

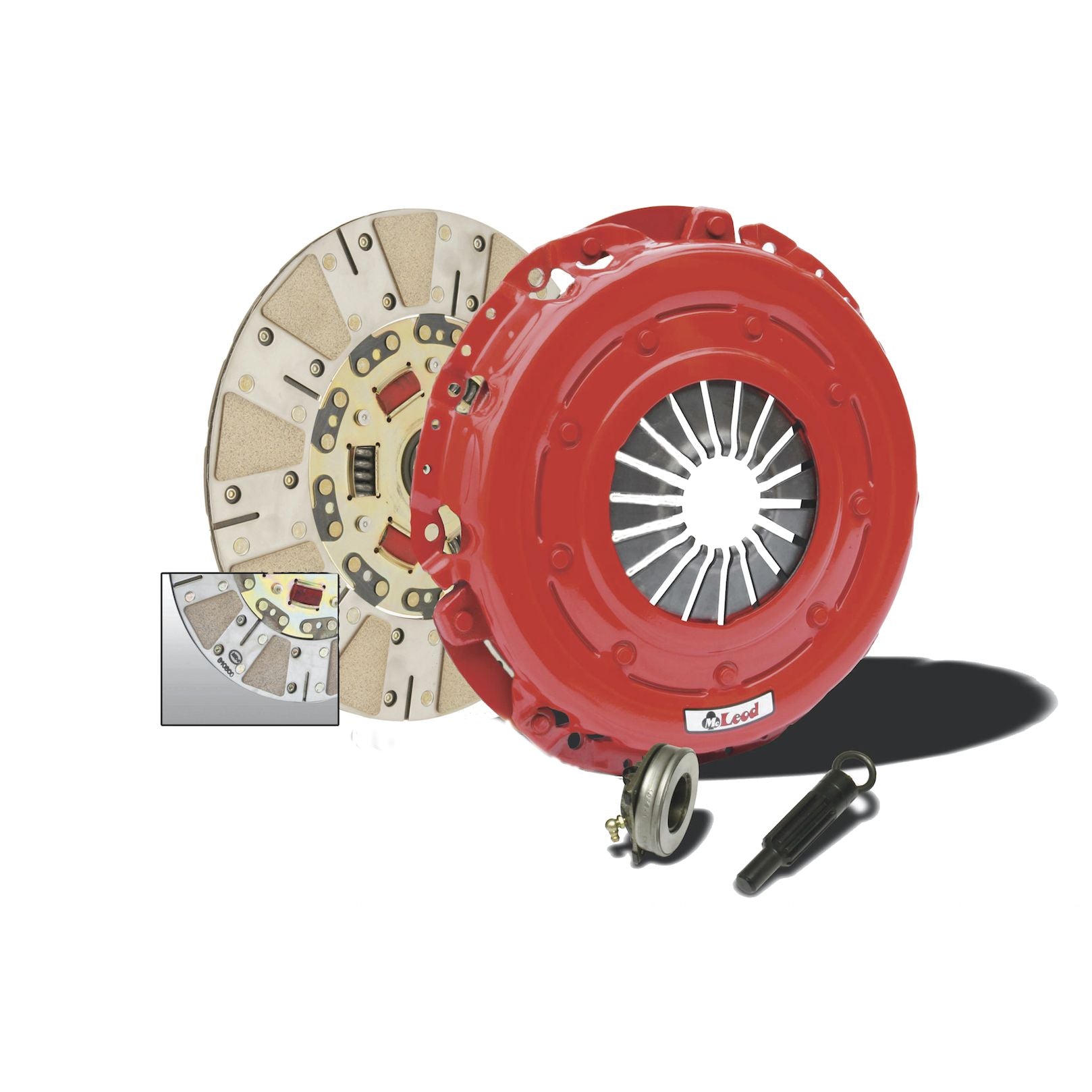

The Street Extreme clutch kit is ideal for both the street and the track. We recommend it for cars up to 700 crank Hp/Tq (depending on part number) with moderate engine mods and street tires. The kit is SFI approved. Included is a high clamp load pressure plate, a dual face ceramic disc for smooth engagement and awesome holding power. Our kits are complete with Pressure Plate, Disc, throw out bearing (where applicable) pilot bushing (where applicable) and alignment tool.

Attributes:

• GTIN: 00887753678140
• Brand Name: McLeod
• Make: Ford
• Applications: 1963-85 SBF
• Spline: 1-1/8x26
• Disc Diameter: 10.5"
• Disc Material: Ceramic
• Pressure Plate Style: Diaphragm
• Horsepower Rating: 400
• Pilot Bushing Included: Yes
• Alignment Tool Included: Yes
• NOTE:: This pressure plate works with the 1986-98 Mustang Metric Pattern with 8mm Bolts and 3 Dowel Pins. For use with cars that have Mechanical Linkage.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 14.5 x 5 inches
• Weight: 23 lb
