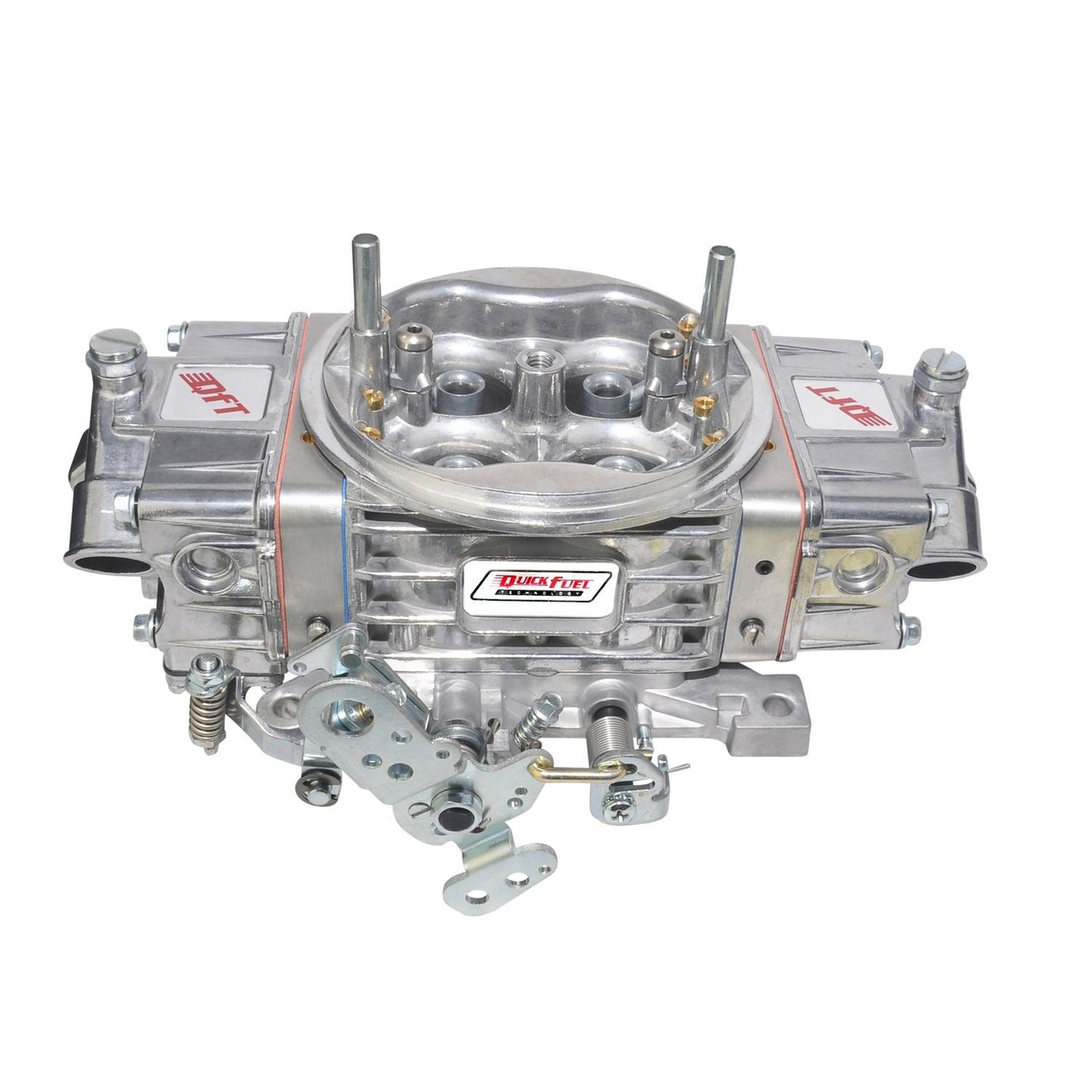

Quick Fuel Technology Street Q Series Carburetor SQ-650

Street Q-Series - The SQ-Series is the ultimate street/strip performance carburetor. It is constructed of lightweight die-cast aluminum components and provides many of the performance features found in the Q-Series carburetors, including changeable bleeds and 4-corner idle. The Street Q includes cast aluminum, dual metering blocks and

• 1 11/16 in. Throttle Bore Size
• 22-68 Primary Jet
• 22-76 Secondary Jet
• 26-73 Idle Bleed
• 26-31 Hi Speed Bleed
• 26-33 Hi Speed Bleed
• 25-45 Power Valve
• 18-2 Needle And Seat
• Gas Fuel
