Mishimoto Subaru WRX Perf. Top Mount Intercooler (Black) & Charge-Pipe Kit (Black), 15-21 MMTMIC-WRX-15BBK

This WRX intercooler endured rigorous testing, showing a 35?F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto's innovative 2015-2021 Subaru WRX charge-pipe, utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler. The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose, an intercooler to throttle body hose, and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation, and they ensure years of reliable service.

• Direct fit for the 2015-2021 Subaru WRX
• Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune
• Proven +15 whp and +8 wtq bolt-on power increase on a stage 2 tune
• 100% aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core
• TIG-welded to a highly efficient bar-and-plate core
• Intercooler core designed for maximum cooling efficiency and minimal pressure drop
• Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
• Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability
• Includes new BPV hoses, hot side coupler, and silicone throttle body hose
• Comes with all necessary hardware, clamps, and brackets for an easy installation
• Pre-marked area for NPT sensor
• Cooler available in durable powder-coated Sleek Silver or Stealth Black finish
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354020427
• Brand Name: Mishimoto
• TechSpec Applications: 2015-2021 WRX--2014-2018 Forester XT
• TechSpec Engine Codes: FA20DIT
• TechSpec Chassis Codes: VA
• TechSpec Maximum Recommended Boost Pressure (PSI): 35
• TechSpec Maximum Recommended Horsepower: 450
• TechSpec Overall Length (in): 24
• TechSpec Overall Height (in): 10
• TechSpec Overall Width (in): 5
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 4
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Inlet (in): 2.5
• TechSpec Outlet (in): 3
• TechSpec Weight (lbs): 24.5
• TechSpec Note: This kit is rated for 300-450 whp with maximum limits of approximately 500 whp, or 35 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.----Tuning is not necessary after installing our top-mount intercooler and charge-pipe, but you will see optimal performance if tuning is performed after the intercooler is installed.----The top-mount intercooler will not fit with the stock engine cover due to its larger size.

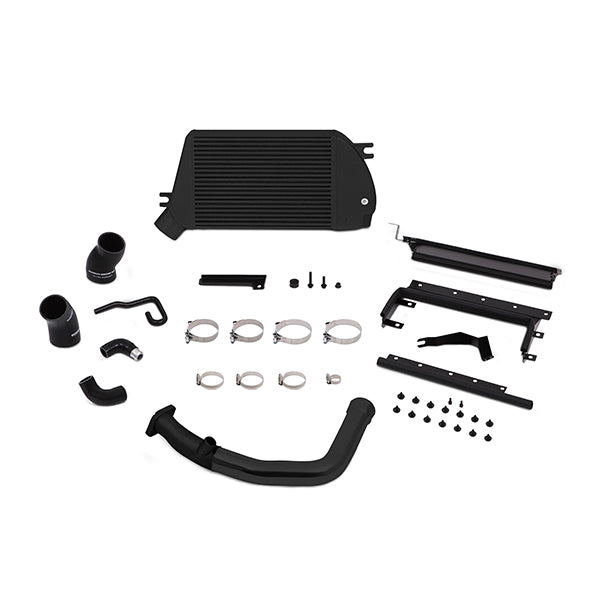

• TechSpec Includes: (1) Bar-and-Plate Intercooler--(1) Optional Charge-Pipe--(1) Intercooler Mounting Bracket--(1) Air Diverter with Attached Rubber Gaskets--(1) Charge-Pipe to Intercooler Hose--(1) Intercooler to Throttle Body Hose--(3) Bypass Valve Hoses--(2) 3-in T-bolt Clamp--(2) 3.5-in T-bolt Clamp--(4) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2015-2021 Subaru WRX
• SellingPoint02: Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune
• SellingPoint03: Proven 15 whp and 8 wtq bolt-on power increase on a stage 2 tune
• SellingPoint04: 100-percent aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core
• SellingPoint05: TIG-welded to a highly efficient bar-and-plate core
• SellingPoint06: Intercooler core designed for maximum cooling efficiency and minimal pressure drop
• SellingPoint07: Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
• SellingPoint08: Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability
• SellingPoint09: Includes new BPV hoses, hot side coupler, and silicone throttle body hose
• SellingPoint10: Comes with all necessary hardware, clamps, and brackets for an easy installation
• SellingPoint11: Pre-marked area for NPT sensor
• SellingPoint12: Cooler available in durable powder-coated Sleek Silver or Stealth Black finish
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 37.1 x 17.25 x 7 inches
• Weight: 22 lb
